Toyota COROLLA 后组合灯 — Figure 8111

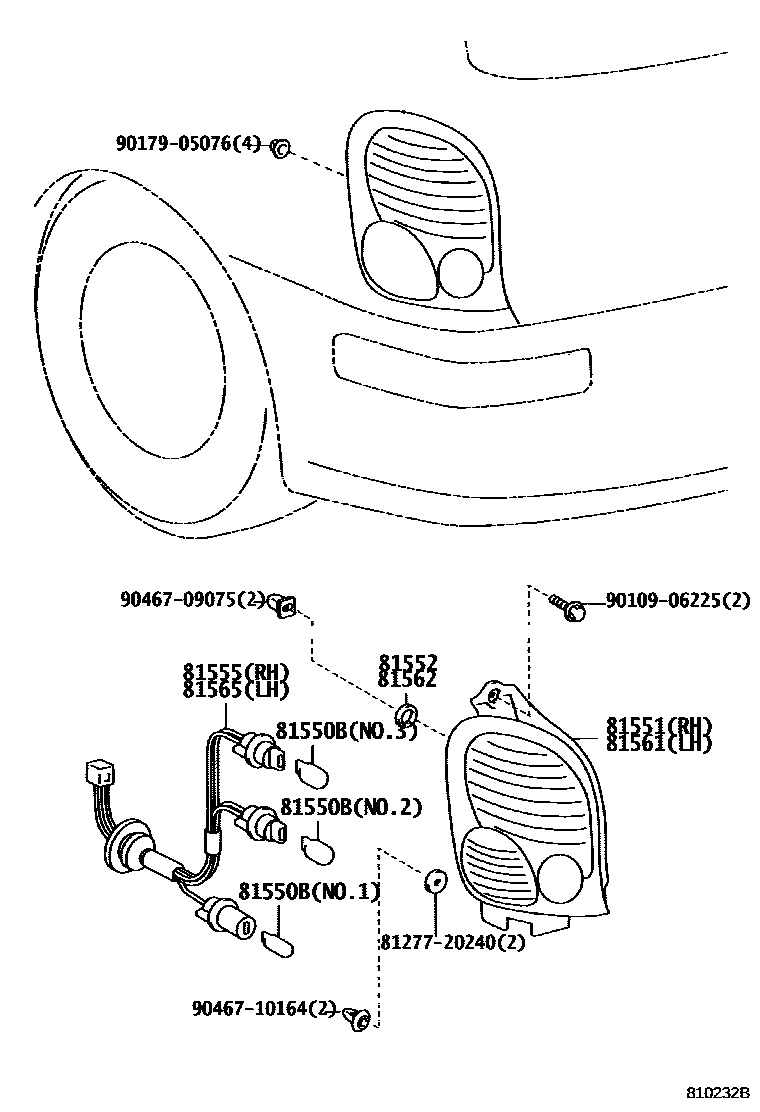

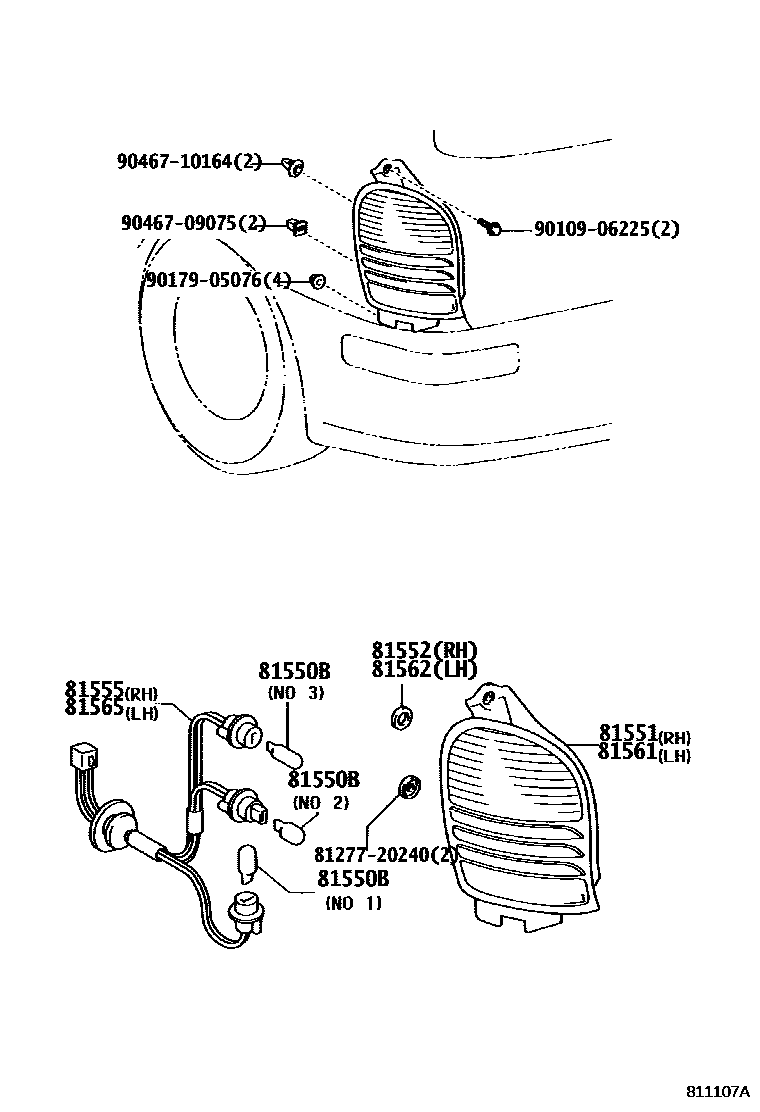

Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550B | Bulb (for rear combination lights) | 90981-11039 · 90981-11059 · 90981-13043 · 90981-13044 · 90981-15011 |
| 81551 | Right rear combination lamp shade | 81551-13370 · 81551-13420 · 81551-13430 · 81551-13440 · 81551-13450 |
| 81552 | Right rear combination lamp shade gasket | 81552-13370 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13370 · 81555-13420 · 81555-13430 · 81555-13440 · 81555-13450 |
| 81561 | Left rear combination lamp shade | 81561-13370 · 81561-13420 · 81561-13430 · 81561-13440 · 81561-13450 |
| 81562 | Left rear combination lamp shade gasket | 81552-13370 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13370 · 81555-13420 · 81555-13430 · 81555-13440 · 81555-13450 |
