Toyota COROLLA 前转向灯 — Figure 8103

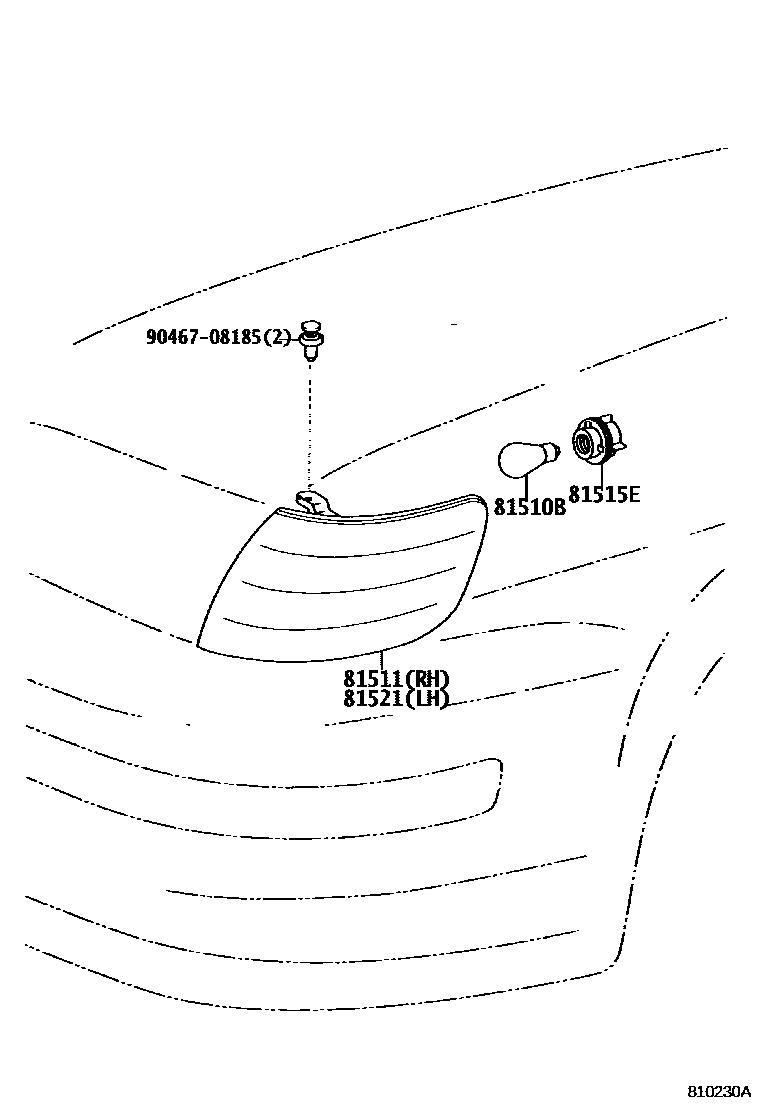

Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510B | Bulb (for front turn signal lamp) | 90981-13043 · 90981-15009 |
| 81511 | Right front turn signal lamp cover | 81511-13030 · 81511-13080 · 81511-13090 |
| 81515E | Lamp holder plug assembly | 90075-60006 · 90075-99080 |
| 81521 | Left front turn signal lamp cover | 81521-13030 · 81521-13080 · 81521-13090 |
