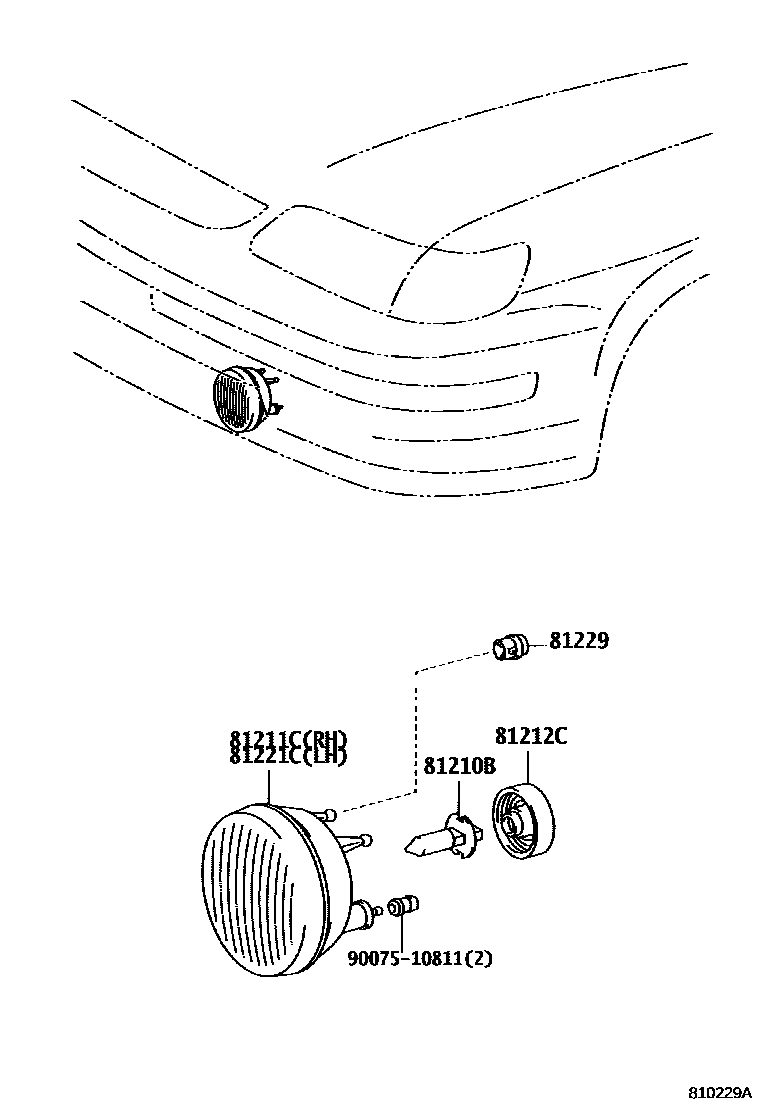

Toyota COROLLA Fog Lamp — Figure 8102
Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210 | Fog light assembly | 81210-13090 |
| 81210B | fog light bulb | 90981-13057 · 90981-13060 |
| 81211C | Right fog light assembly | 81211-13040 · 81211-13090 |
| 81212C | fog light cover | 90075-65003 |
| 81215A | Fog light holder and wiring harness | 81215-13090 |
| 81220 | Left fog light assembly | 81220-13090 |
| 81221C | Left fog light assembly | 81221-13040 · 81221-13090 |
| 81229 | Fog light bracket | 81481-10030 |
