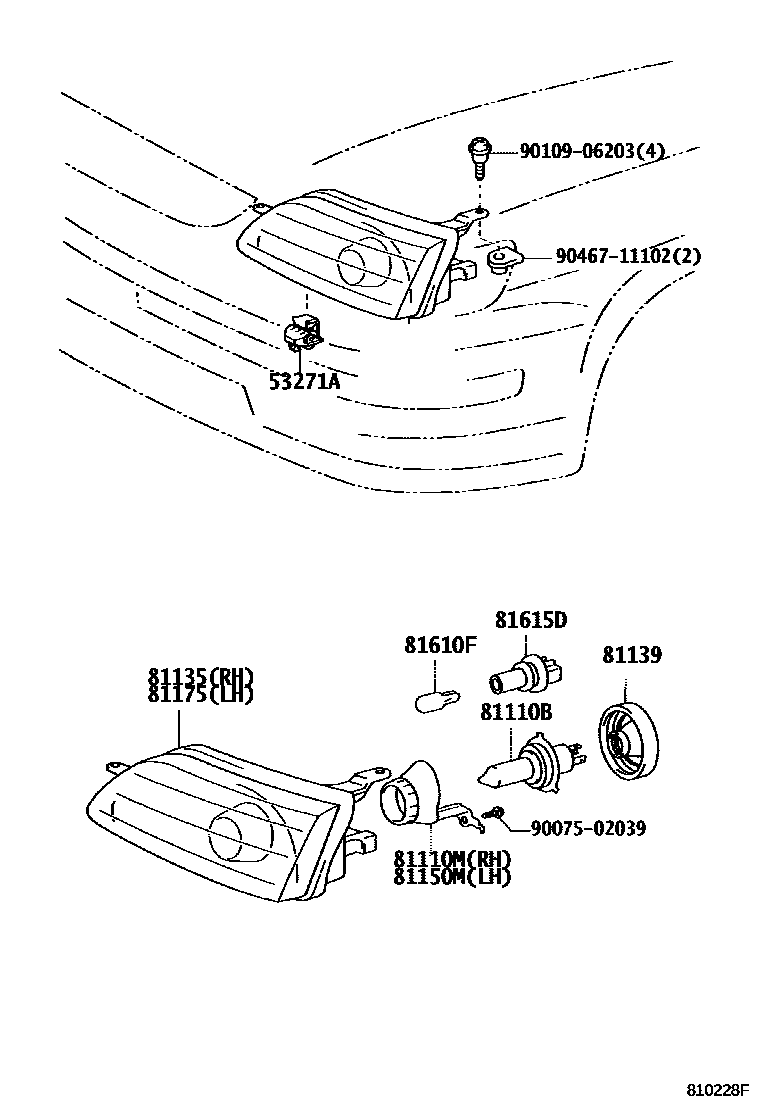

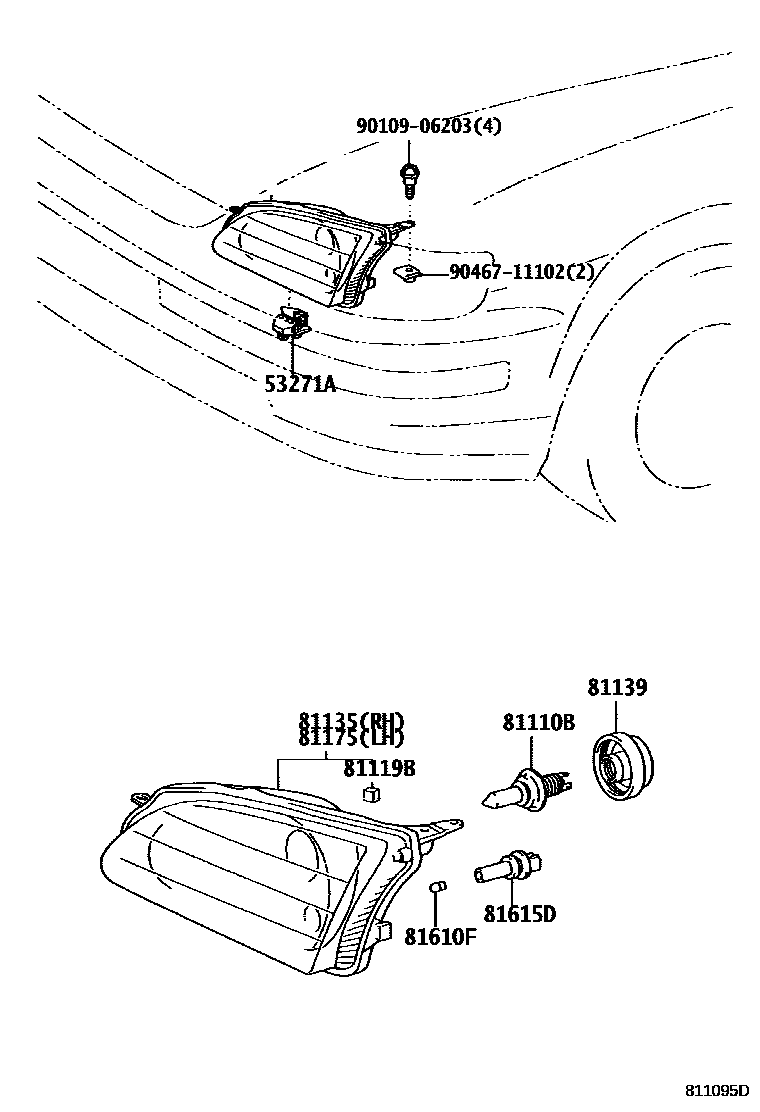

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12060 |
| 81110B | Bulb (for headlight No. 1) | 90981-22004 |
| 81110M | right bulb cover | 90075-99126 |
| 81119B | headlight filter | 81119-13210 |
| 81135 | Right headlight assembly | 81130-13130 · 81130-13190 · 81130-13210 · 81130-13220 |
| 81139 | Headlight lamp holder cover | 90075-65002 |
| 81150M | left bulb cover | 90075-99127 |
| 81175 | Left headlight assembly | 81170-13130 · 81170-13190 · 81170-13210 · 81170-13220 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60004 |
