Toyota COROLLA 挡泥板和扰流板 — Figure 7601

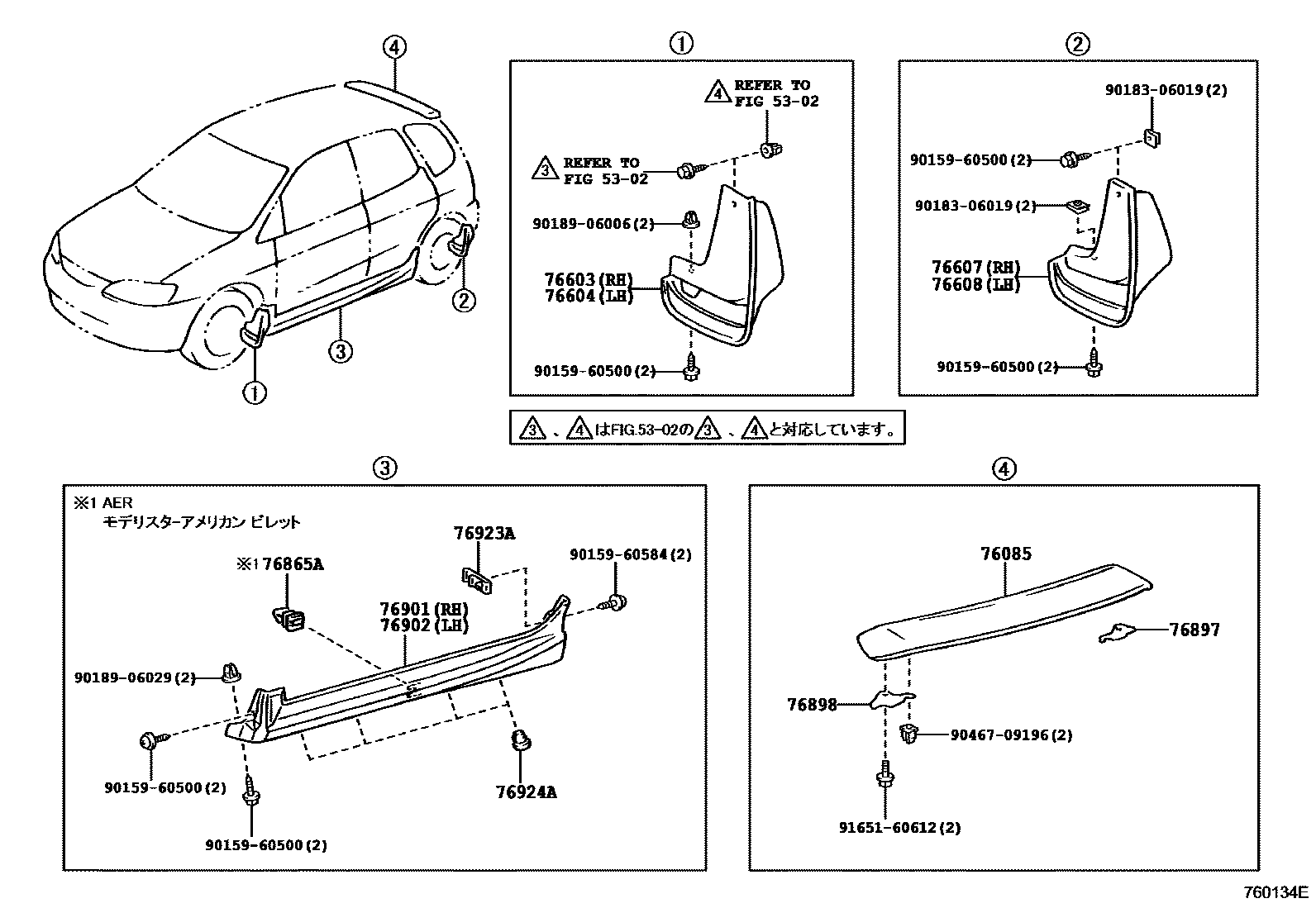

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76871-13903 |
| 76603 | Right front fender fender sub-assembly | 76621-13010 |
| 76604 | Left front fender fender sub-assembly | 76622-13010 |
| 76607 | Right rear side fender sub-assembly | 76625-13080 · 76625-13090 |
| 76608 | Left rear side fender sub-assembly | 76626-13080 · 76626-13090 |
| 76865A | Side fender fixings | 76651-12060 |
| 76897 | Right rear spoiler protection strip | 76897-13020 |
| 76898 | Left rear spoiler protection strip | 76897-13020 |
| 76901 | Right fender sub-assembly | 76911-13900 · 76911-13901 |
| 76902 | Left fender sub-assembly | 76912-13900 · 76912-13901 |
| 76923A | Side fender fixings | 76923-13010 · 76923-13020 |
| 76924A | No. 2 side fender fixings | 76924-13020 |
