Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

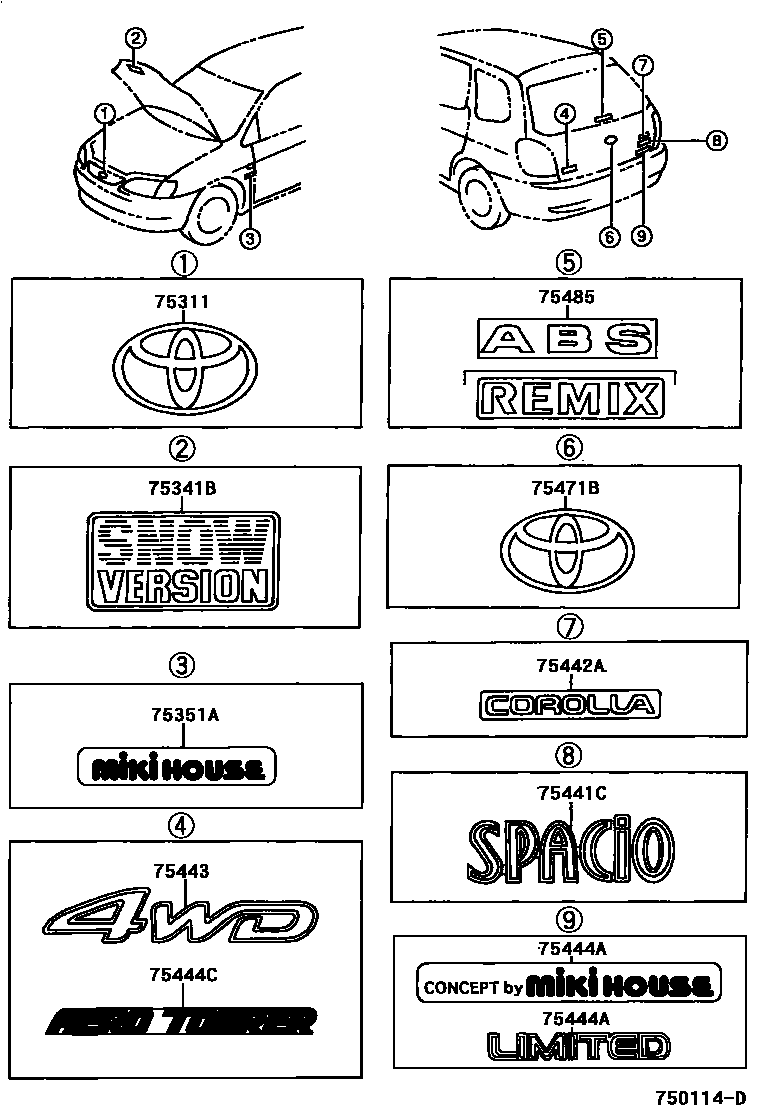

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-13130 |
| 75341B | engine cover plate | 75341-20060 |
| 75351A | Front fender label | 75353-13010 |
| 75441C | Back door nameplate | 75441-13180 |
| 75442A | No. 2 nameplate on back door | 75442-13210 |
| 75443 | No. 3 nameplate on back door | 75443-13290 |
| 75444A | No. 4 nameplate on back door | 75444-13260 · 75474-60010 |
| 75444C | Trunk door No. 4 nameplate | 75444-13270 |
| 75471B | No. 1 nameplate on rear body | 75471-13060 |
| 75485 | Back window nameplate | 75444-13250 · 75485-13040 |
