Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

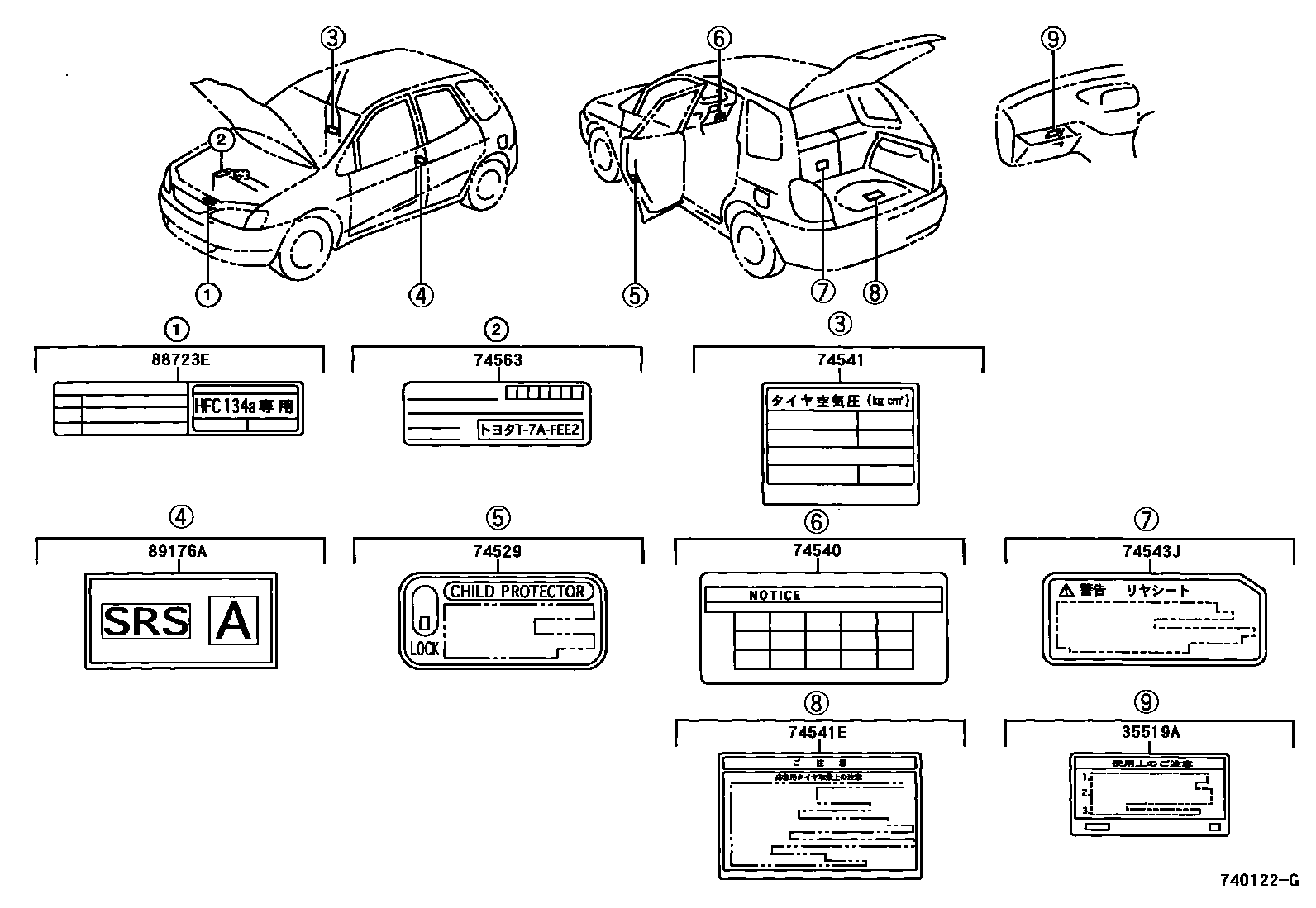

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35519A | Automatic transfer case information label | 35519-12020 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74540 | Fuse box warning nameplate | 82683-13010 |
| 74541 | tire pressure warning plate | 42661-13170 · 42661-13171 |
| 74541E | Small spare tire warning plate | 42668-28060 · 42668-32010 |

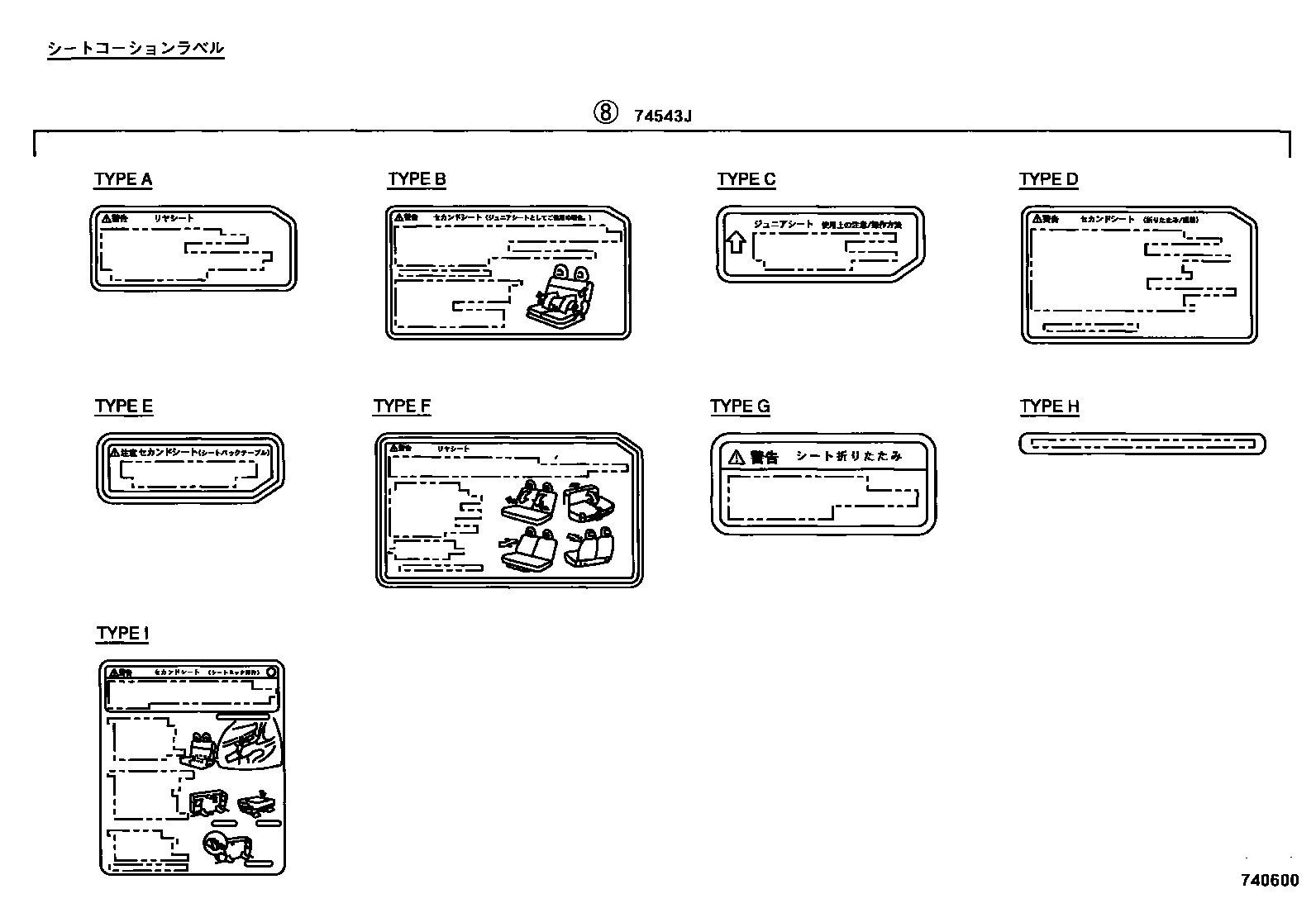

| 74543J | rear seat warning label | 74543-13020 · 74543-13030 · 74543-13040 · 74543-13050 · 74543-13060 · 74543-13070 · 74543-13080 · 74543-13090 · 74543-13100 |
| 74563 | Emission control equipment identification plate | 74563-12200 · 74563-12220 · 74563-12240 · 74563-12260 |
| 88723E | Cooler maintenance warning label | 88723-12110 |
| 89176A | Air bag deployment information label | 89176-32010 |
