Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.

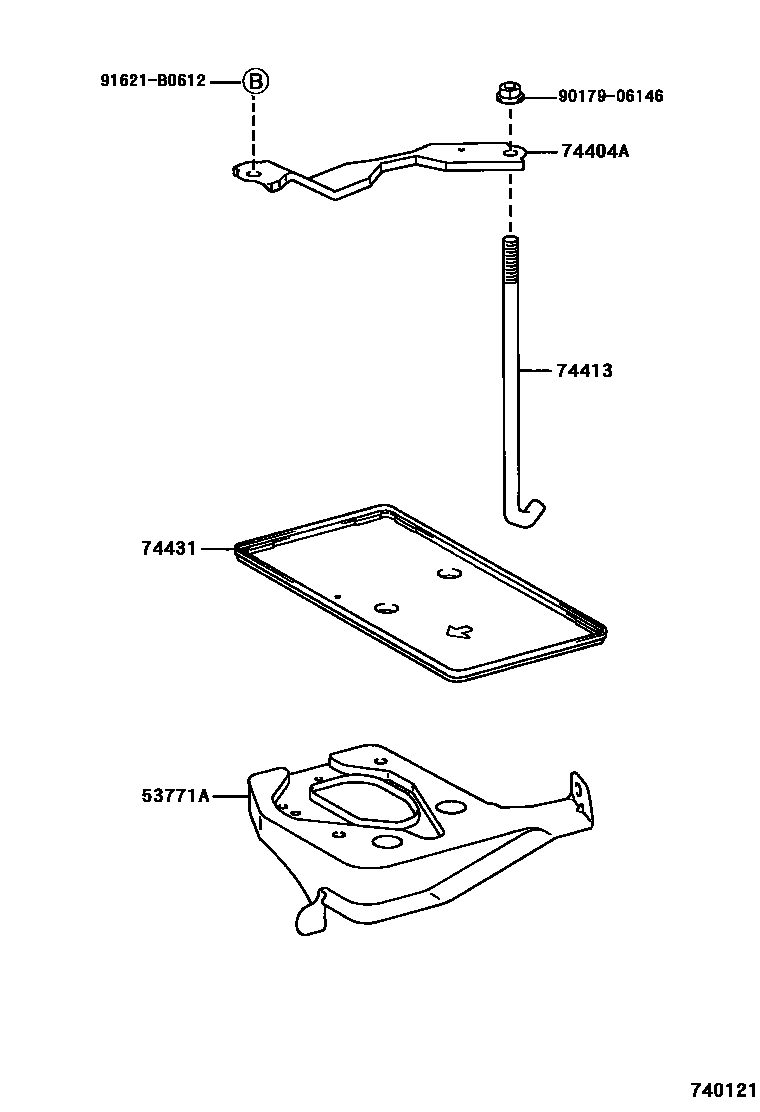

Toyota COROLLA battery holder EPC diagram — 740121
battery holder — 740121 (199701 – 999999)

PNC and OE references

PNCPart nameOE numbers
53771Abattery holder bracket53771-13010
74404ABattery clip sub-assembly74404-13010 · 74404-13020
74413Battery clamp bolt74451-12061
74431battery tray74431-12020 · 74431-12060
