Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

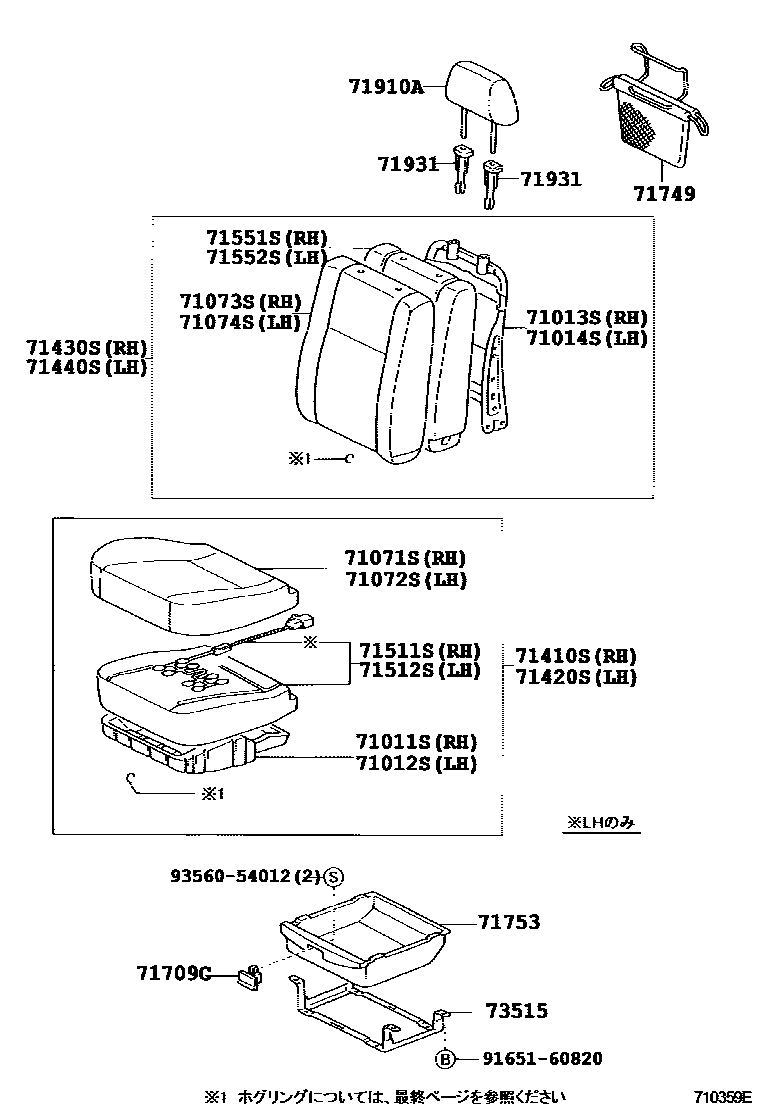

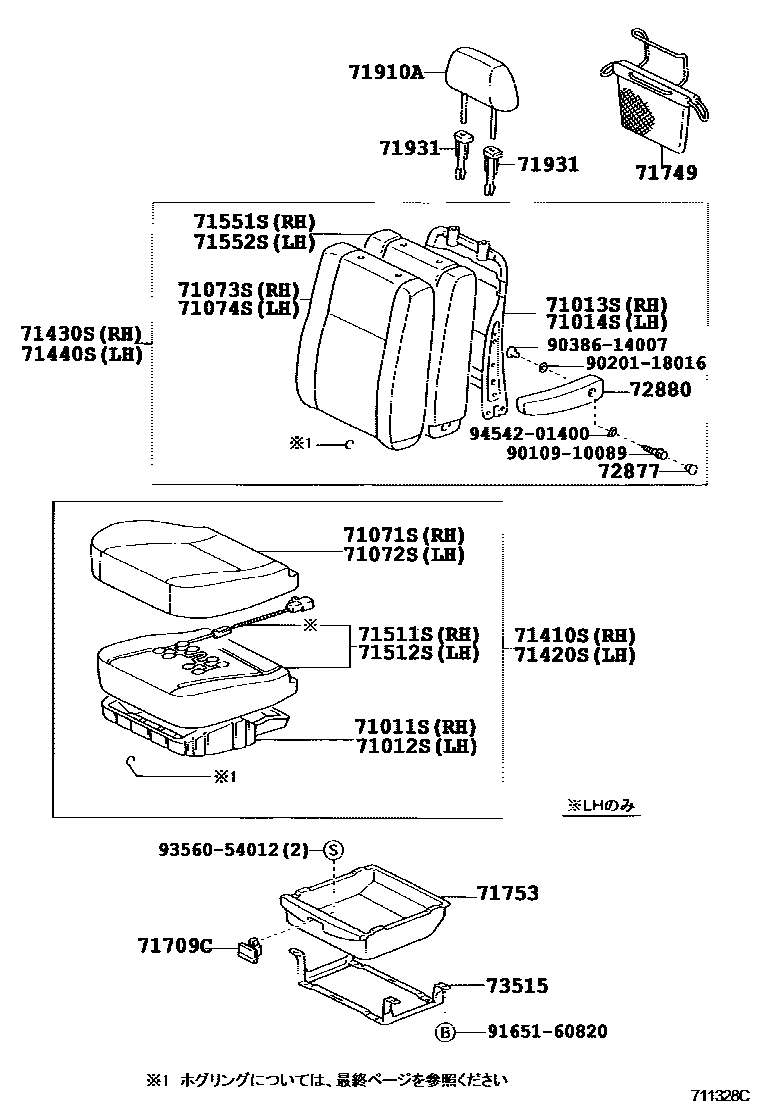

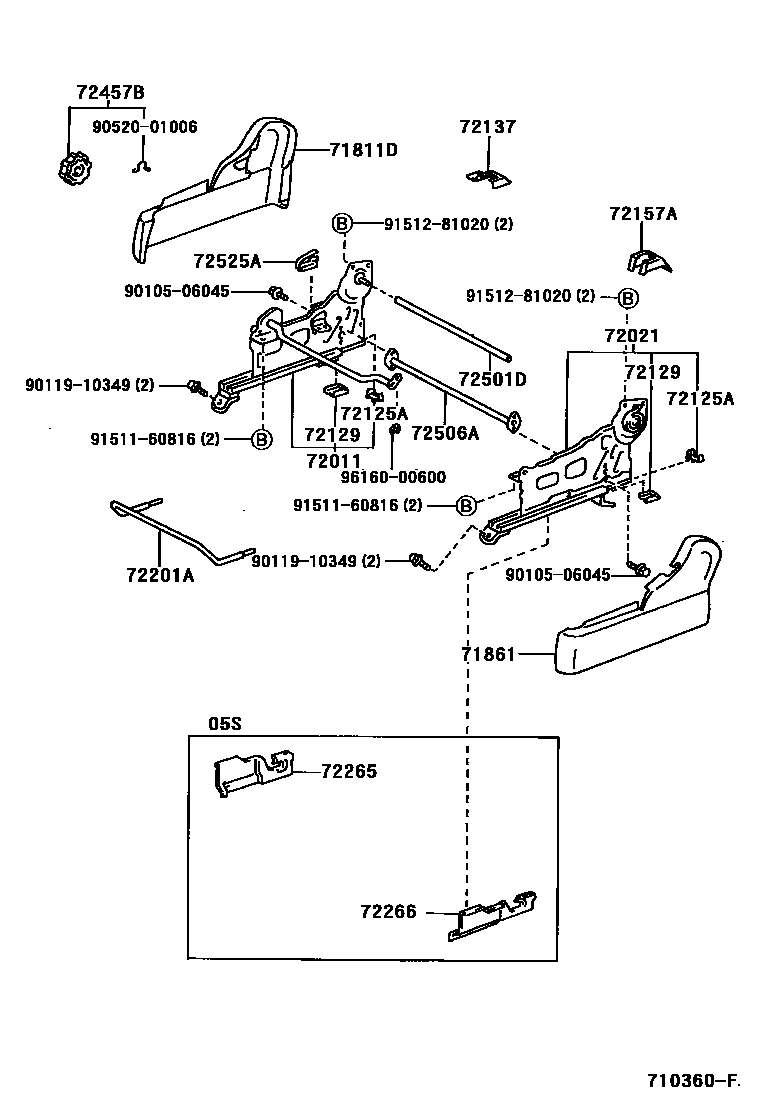

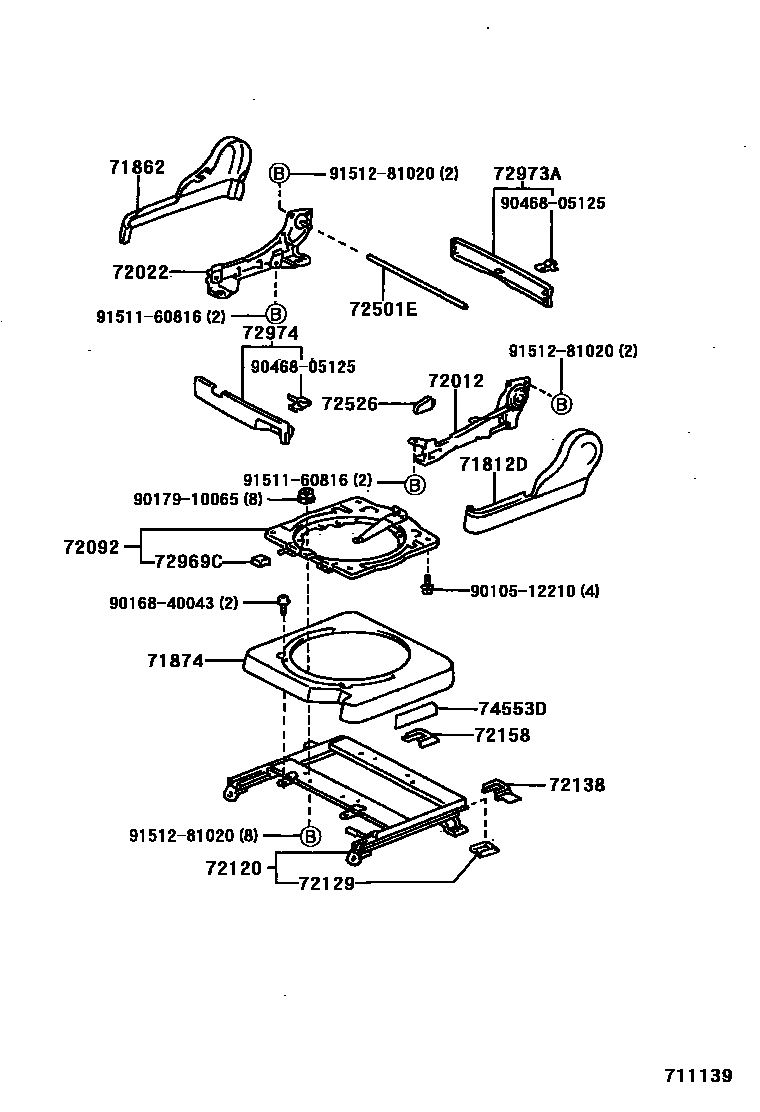

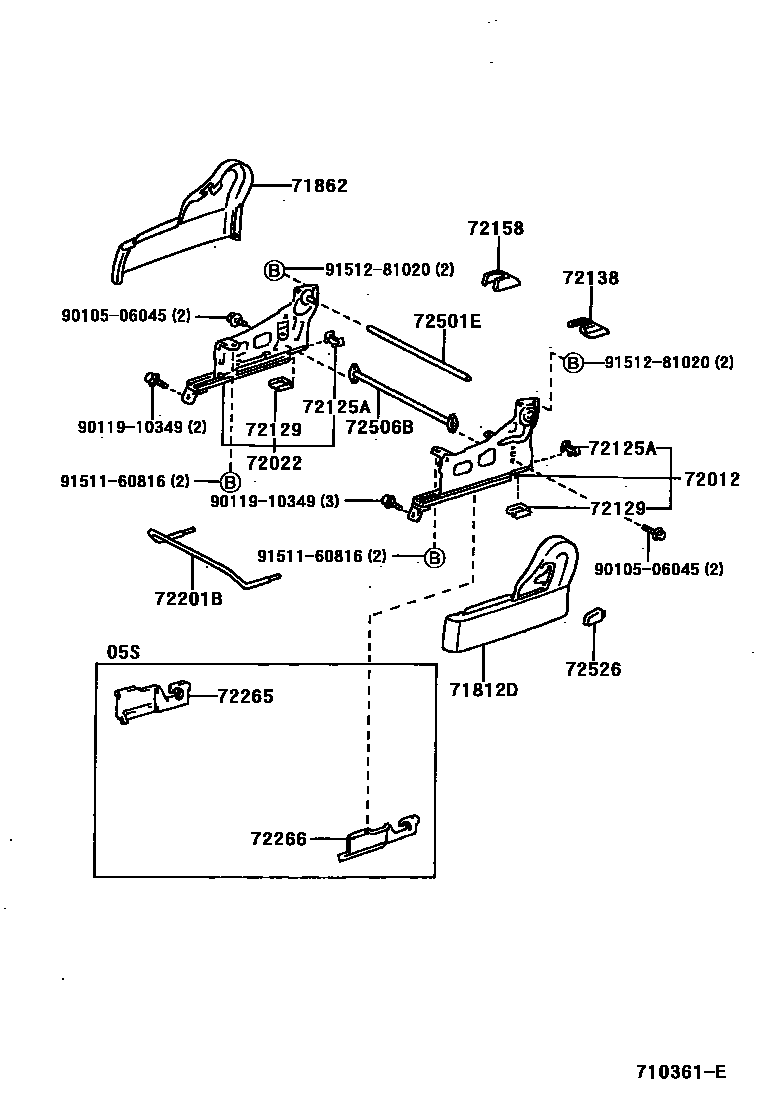

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 6 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-20430 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-10230 · 71011-13010 |
| 71013S | Front right seat back frame sub-assembly | 71013-13040 · 71013-13060 |
| 71014S | Front left seat back frame sub-assembly | 71013-13040 · 71013-13050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-13030 |
| 71512S | Front left seat cushion cushion (for split seats) | 71052-13020 · 71052-13030 · 71511-13030 · 71511-13040 · 71512-13010 · 71512-13020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-13030 · 71551-13050 |
| 71552S | Front left seat back cushion (for split seats) | 71551-13030 · 71551-13040 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-13020 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-13040 |
| 72092 | Turntable sub-assembly on the left seat | 72092-13010 |
| 72125A | Rear seat upper slide rail cover | 72125-16020 |
| 72201A | Right seat slide rail handle sub-assembly | 72201-13010 |
| 72201B | Left seat slide rail handle sub-assembly | 72201-13010 |
| 72265 | Right seat rail upper rail cover | 72265-13020 |
| 72266 | Left seat rail upper rail cover | 72266-13020 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72345-20050 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72345-13020 · 72345-20050 |
| 72506A | Right seat back inclination link sub-assembly | 72506-13010 |
| 72506B | Left seat back inclination link sub-assembly | 72506-13010 |
| 73515 | Front seat No. 1 bottom bracket guide rail | 73507-13010 |
| 74553D | Front seat warning label | 74553-13020 |
