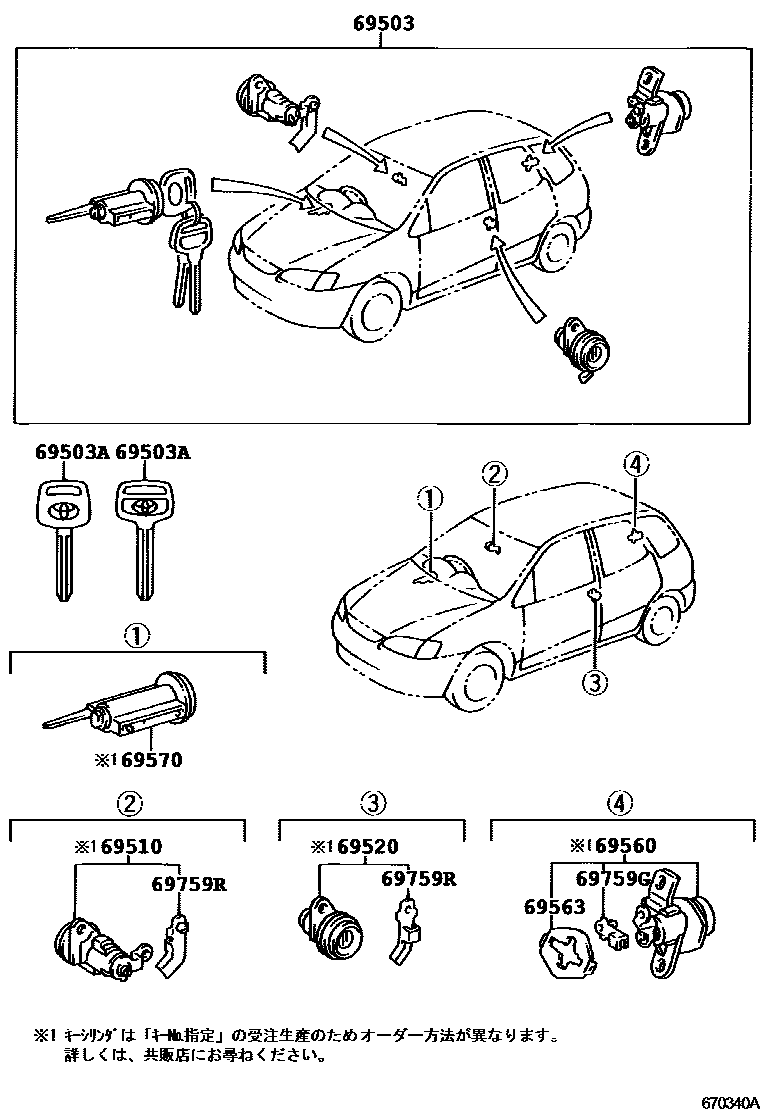

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503 | Door lock cylinder components | 69005-13360 · 69005-13510 · 69005-13520 · 69005-13540 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00237 · 90999-00238 |
| 69510 | Right front door lock cylinder assembly | 69510-20210 |
| 69520 | Left front door lock cylinder assembly | 69520-20200 |
| 69560 | Rear door lock cylinder assembly | 69560-13120 |
| 69563 | Rear door lock cylinder gasket | 69563-13010 |
| 69570 | Ignition switch lock cylinder assembly | 69570-12200 · 69570-12210 · 69570-12220 |
| 69759G | Trunk door lock core buckle | 69759-20090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
