Toyota COROLLA 背门锁和背门把手 — Figure 6709

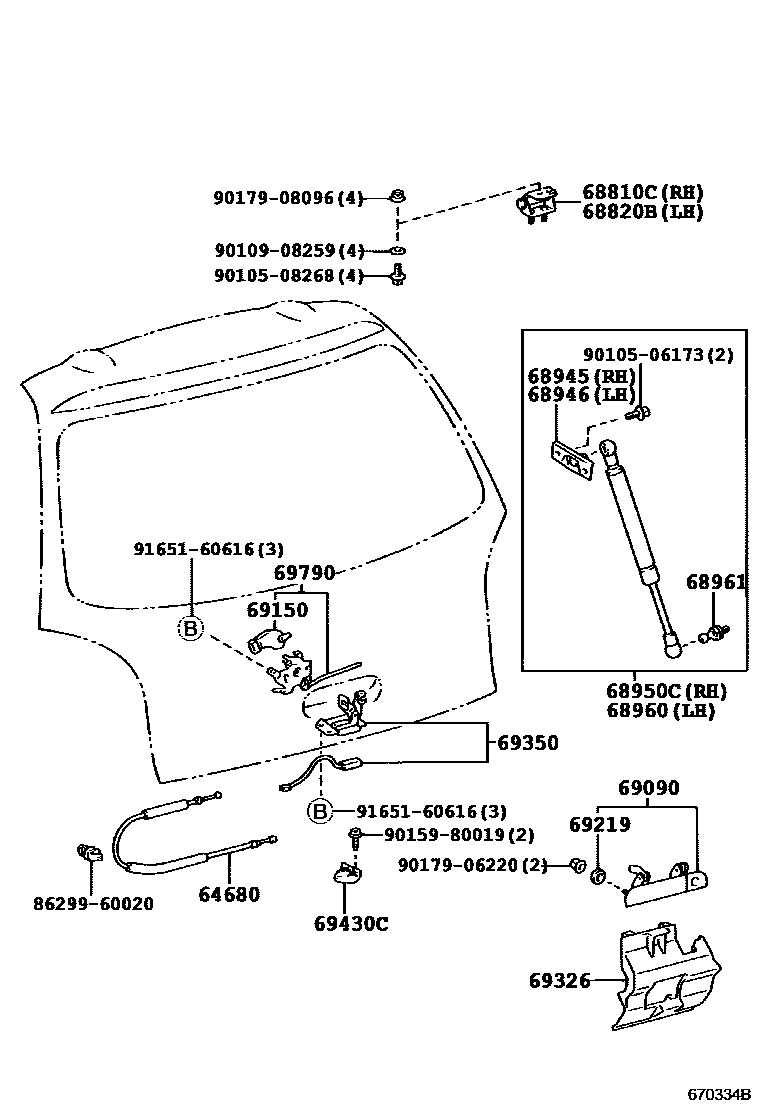

Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64680 | Rear door lock control cable assembly | 64680-13040 |
| 68810C | Back door right hinge assembly | 68801-13100 |
| 68820B | Back door left hinge assembly | 68801-13100 |
| 68945 | Back door right damping stay upper bracket | 68945-13030 |
| 68946 | Rear door left damping strut upper bracket | 68946-13030 |
| 68950C | Back door right support rod assembly | 68950-80051 · 68950-80052 |
| 68960 | Back door left support rod assembly | 68960-19655 · 68960-19665 |
| 68961 | Rear door support rod bolts | 68961-23010 |
| 69150 | Rear door lock actuator assembly | 69150-13020 |
| 69219 | Rear door outer handle seal | 69219-13010 |
| 69326 | Rear door outer handle panel | 69326-13020 |
| 69350 | Rear door lock assembly | 69350-13220 |
| 69430C | Back door lock assembly | 69430-13030 |
| 69790 | Rear door lock control assembly | 69790-13030 |
