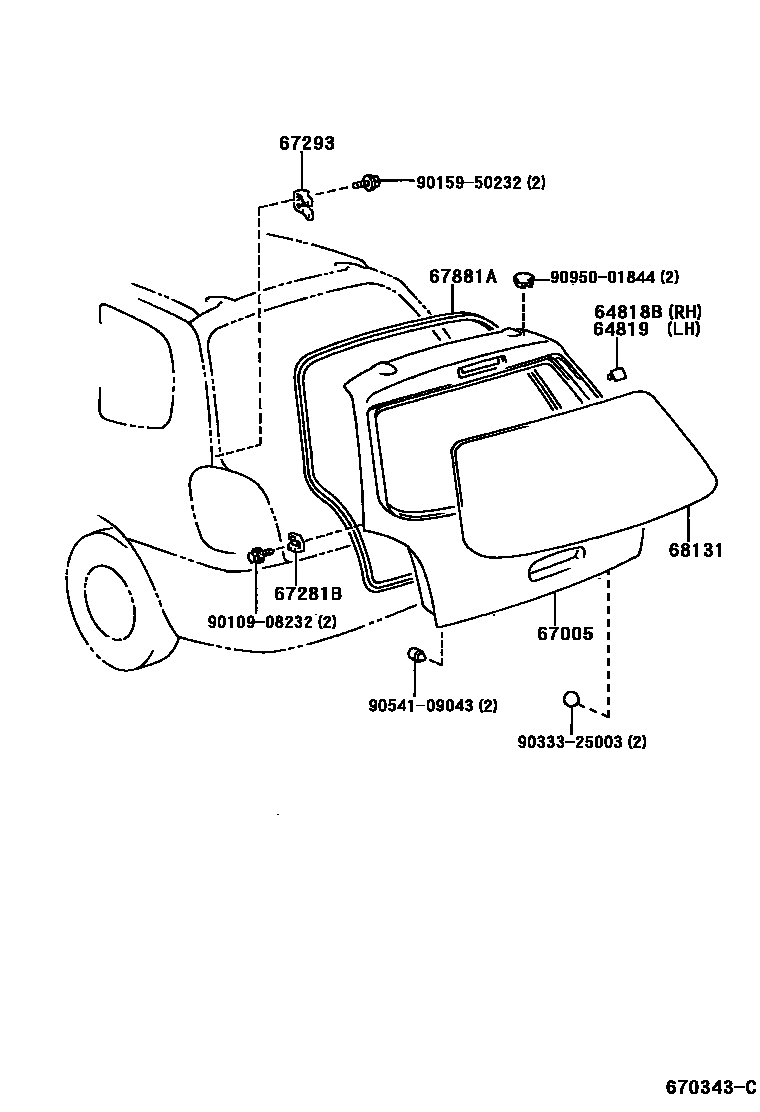

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-13050 |
| 64819 | No. 2 back window glass spacer | 64819-13020 |
| 67005 | Rear door panel sub-assembly | 67005-1F500 · 67005-1F510 · 67005-1F560 · 67005-1F570 |
| 67281B | Back door lower block | 67281-12061 |
| 67293 | Back door lower block cushion | 67293-13030 |
| 67881A | Back door seal | 67881-13210 |
| 68131 | back door glass | 68131-13380 · 68131-13480 · 68131-13490 |
