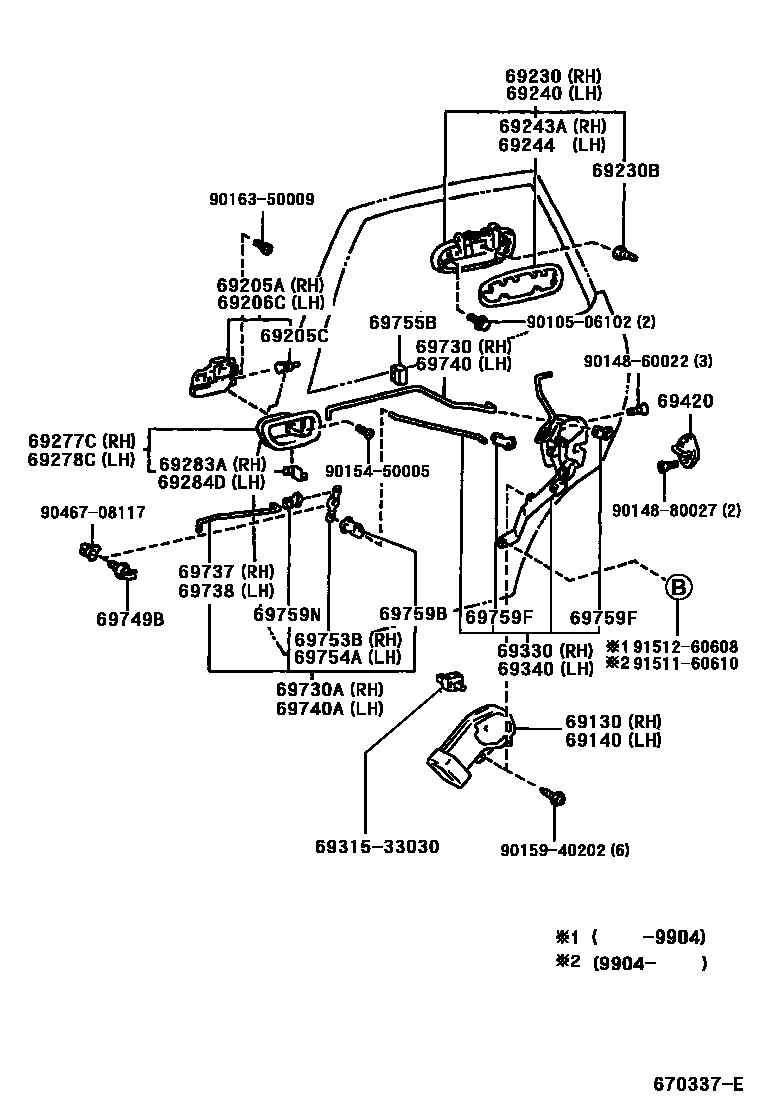

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-13010 |
| 69140 | Left rear door lock actuator assembly | 69140-13010 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69230 | Right rear door outer handle assembly | 69230-44010 |
| 69230B | Cushion pad (for rear door outer handle) | 90541-04018 |
| 69240 | Left rear door outer handle assembly | 69240-44010 |
| 69243A | Right rear door outer handle pad | 69243-12020 |
| 69244 | Left rear door outer handle pad | 69244-12020 |
| 69330 | Right rear door door lock assembly | 69330-13040 |
| 69340 | Left rear door lock assembly | 69340-13040 |
| 69420 | Rear door lock plate assembly | 69410-87001 |
| 69730 | Right rear door opening control linkage assembly | 69713-13010 |
| 69730A | Right rear door door lock control link assembly | 69730-13010 |
| 69737 | Right rear door inner locking link | 69737-13010 |
| 69738 | Left rear door inner locking link | 69738-13010 |
| 69740 | Left rear door opening control linkage assembly | 69714-13010 |
| 69740A | Left rear door lock control link assembly | 69740-13010 |
| 69749B | Rear door lock link clamp | 69749-32030 |
| 69753B | Right rear door lock control right angle lever | 69753-32070 |
| 69754A | Left rear door lock control right angle lever | 69753-32070 |
| 69755B | Rear door lock link silencer | 69759-14010 |
| 69759B | Rear door lock cylinder buckle | 69759-24030 |
| 69759F | Rear door lock control link buckle | 69759-24050 · 69759-24060 |
| 69759N | Door lock control link buckle | 69759-20380 |
