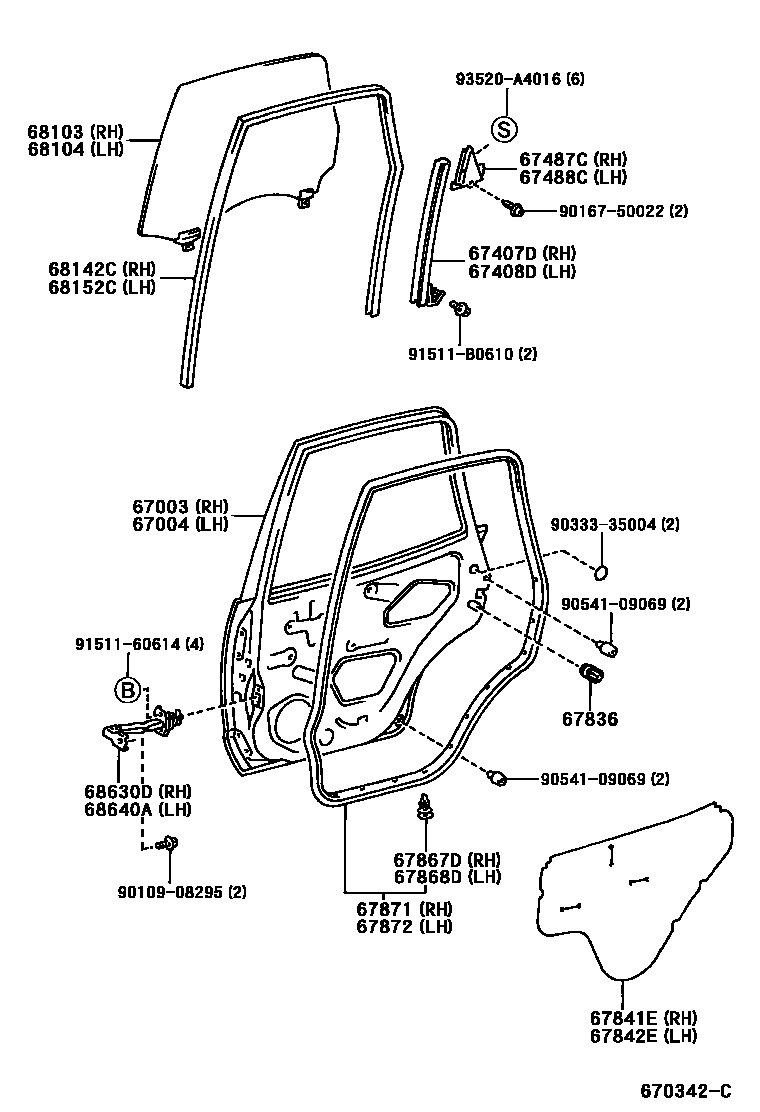

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-13260 |
| 67004 | Left rear door panel sub-assembly | 67004-13260 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-13050 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-13050 |
| 67487C | Right rear door rear rail seal | 67487-13030 |
| 67488C | Left rear door rear rail seal | 67488-13030 |
| 67603D | Right rear door trim panel fixing | 67771-12050 |
| 67604D | Left rear door trim panel fixing | 67771-12050 |
| 67836 | Right rear door lock child restraint cover | 67836-14010 |
| 67841E | Right rear door access hole cover | 67841-13040 |
| 67842E | Left rear door access hole cover | 67841-13040 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-13120 |
| 67872 | Left rear door sealing strip | 67872-13110 |
| 68103 | Right rear door glass sub-assembly | 68103-13190 · 68103-13230 · 68103-13240 |
| 68104 | Left rear door glass sub-assembly | 68104-13180 · 68104-13220 · 68104-13230 |
| 68142C | Right rear door glass lift slot | 68142-13100 |
| 68152C | Left rear door glass lift slot | 68152-13060 |
| 68173B | Right rear door glass inner sealing strip | 68173-13020 |
| 68174A | Left rear door glass inner sealing strip | 68174-13020 |
| 68630D | Right rear door opening limiter assembly | 68630-13010 |
| 68640A | Left rear door opening limiter assembly | 68640-13010 |
