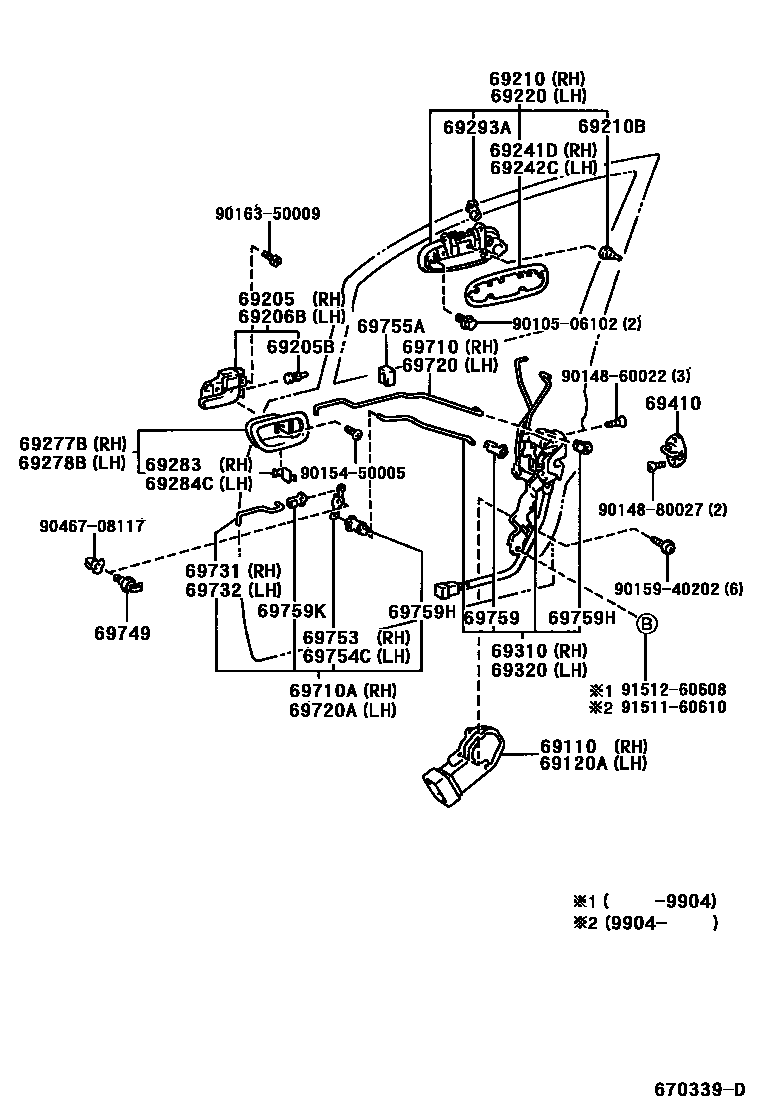

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69110 | Right front door lock actuator assembly | 69110-13010 |
| 69120A | Left front door lock actuator assembly | 69120-13010 |
| 69205 | Right front door inner handle sub-assembly | 69205-13010 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69210-12250 |
| 69210B | Cushion pad (for front door outer handle) | 90541-04018 |
| 69220 | Left front door outer handle assembly | 69220-12250 |
| 69241D | Right front door outer handle pad | 69241-12100 |
| 69242C | Left front door outer handle pad | 69242-12050 |
| 69293A | Front door outer handle buckle | 69293-12030 · 69293-12040 |
| 69310 | Right front door lock assembly | 69310-13040 |
| 69320 | Left front door lock assembly | 69320-13030 |
| 69410 | Front door lock plate assembly | 69410-87001 |
| 69710 | Right front door opening control linkage assembly | 69711-13010 |
| 69710A | Right front door door lock control lever assembly | 69710-13010 |
| 69720 | Left front door opening control linkage assembly | 69712-13010 |
| 69720A | Left front door lock control lever assembly | 69720-13010 |
| 69731 | Right front door No. 1 inner locking link | 69731-13010 |
| 69732 | Left front door No. 1 inner locking link | 69732-13010 |
| 69749 | Front door lock link clip | 69749-32030 |
| 69753 | Right-hand door lock control right-angle lever | 69753-12110 |
| 69754C | Left door lock control right angle lever | 69754-12040 |
| 69755A | Front door lock link silencer | 69759-20390 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-24080 |
| 69759H | Rear door lock No. 2 control link buckle | 69759-24090 · 69759-33030 |
| 69759K | Door lock control link buckle | 69759-24050 · 69759-24060 |
