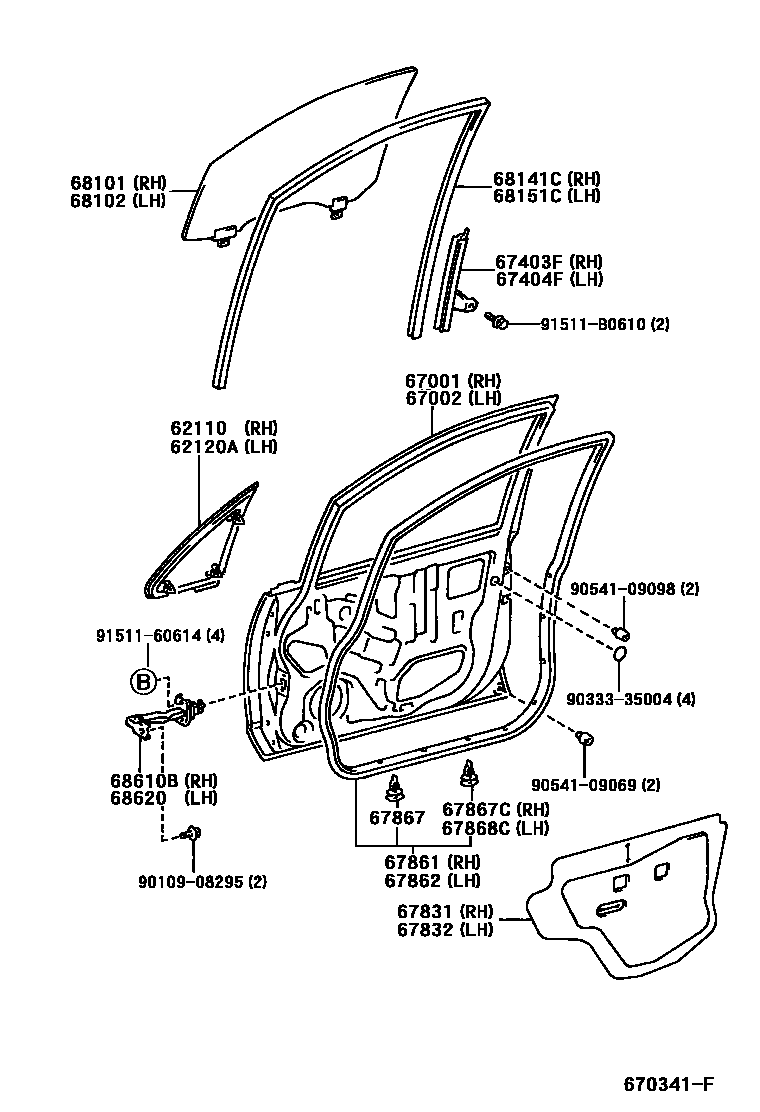

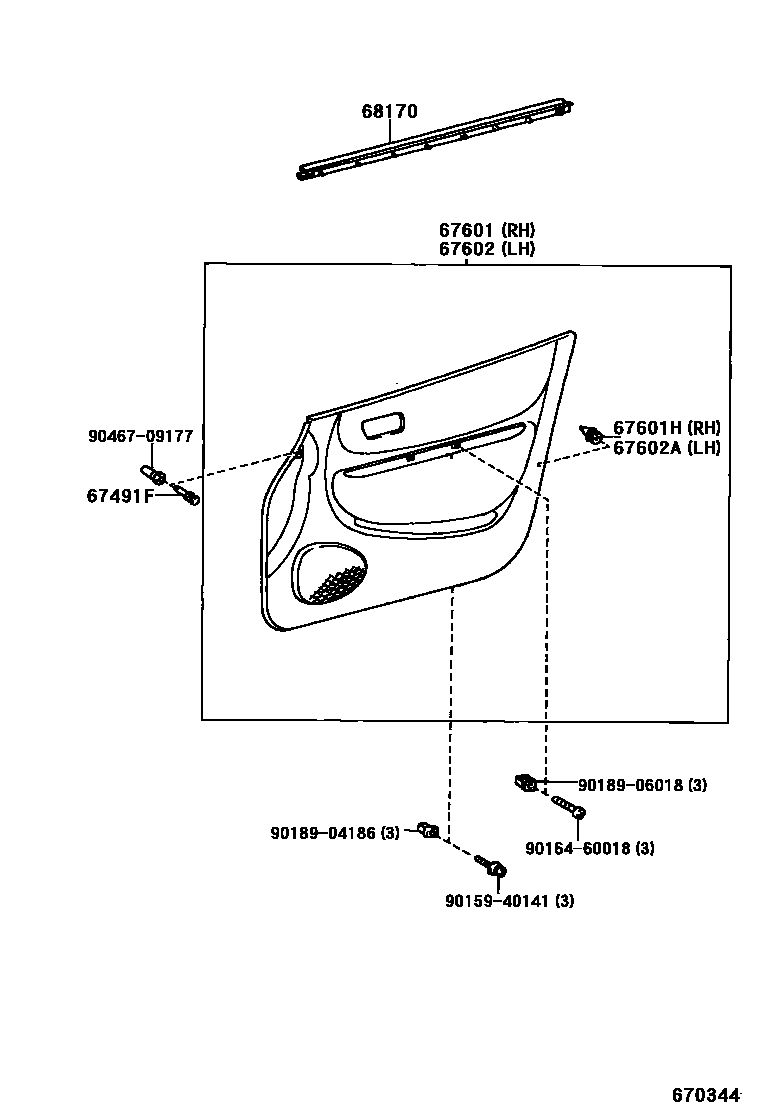

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62110 | Right front side fixed window assembly | 62110-13020 · 62110-13030 |
| 62120A | Left front side fixed window assembly | 62120-13020 · 62120-13030 |
| 67001 | Right front door panel sub-assembly | 67001-13110 |
| 67002 | Left front door panel sub-assembly | 67002-13090 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-13010 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-13010 |
| 67601H | Right door trim panel fixing | 67771-12050 |
| 67602A | Left door trim panel fixing | 67771-12050 |
| 67831 | Right front door access hole cover | 67831-13050 |
| 67832 | Left front door access hole cover | 67832-13040 |
| 67861 | Right front door seal | 67861-13020 |
| 67862 | Left front door seal | 67862-13020 |
| 67867 | Car door seal strip clip | 67868-30040 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 68101 | Right front door glass sub-assembly | 68101-13020 · 68101-13021 · 68101-13030 |
| 68102 | Left front door glass sub-assembly | 68102-13020 · 68102-13021 · 68102-13030 |
| 68141C | Right front door glass lift channel | 68141-13130 |
| 68151C | Left front door glass lift channel | 68151-13030 |
| 68170 | Front door glass inner sealing strip assembly | 68171-13020 |
| 68610B | Right front door opening limiter assembly | 68610-13010 |
| 68620 | Left front door opening limiter assembly | 68620-13010 |
