Toyota COROLLA 底板和底板装饰罩 — Figure 6404

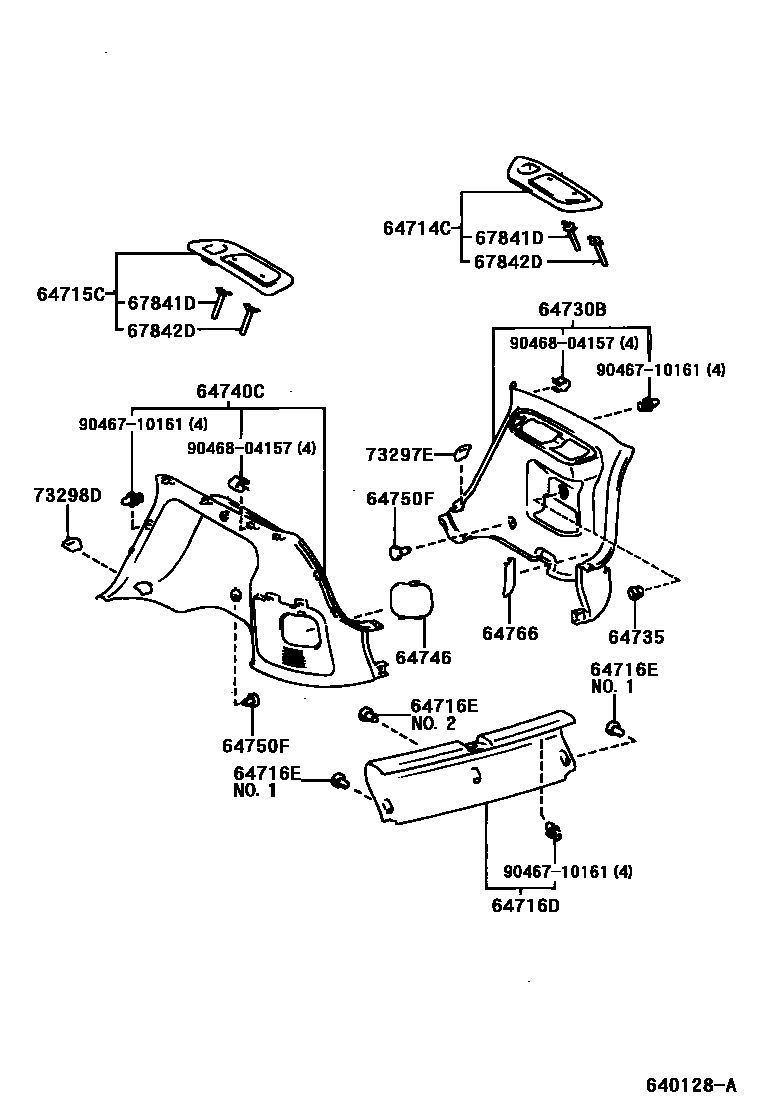

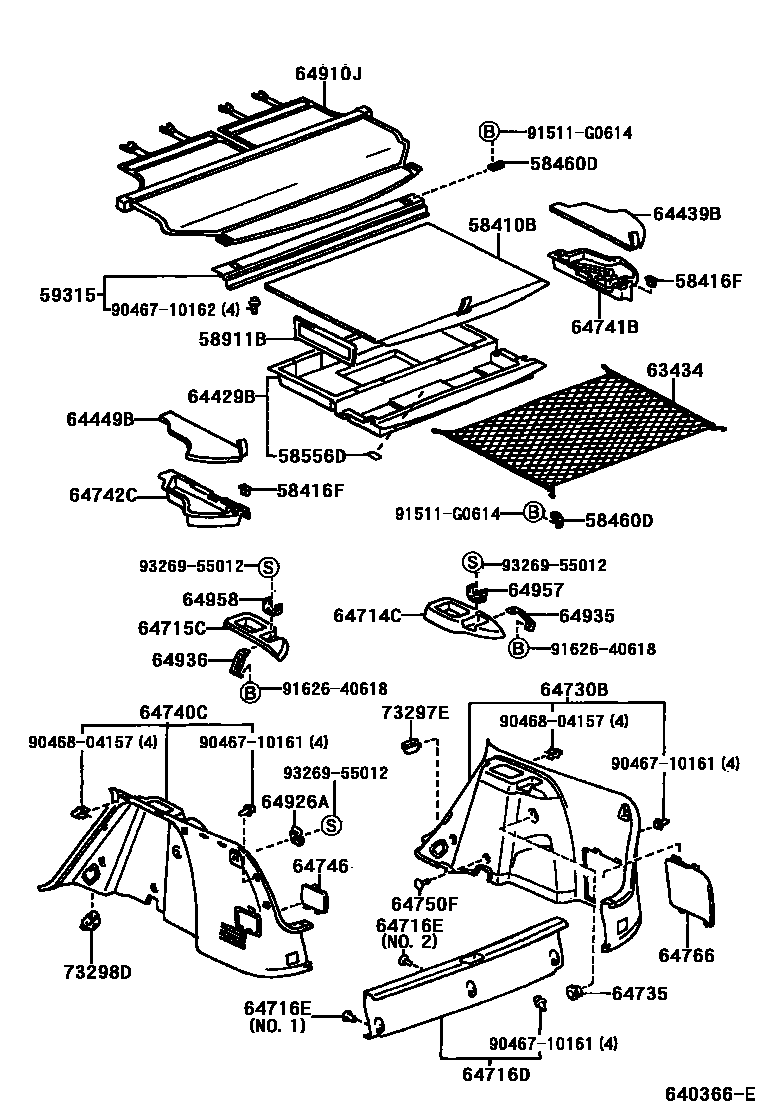

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58460D | Luggage fixing belt lock assembly | 58460-13020 |
| 58556D | Rear floor silencer | 58556-13010 · 58563-13030 |
| 63434 | In-car luggage rack net | 63434-13040 |
| 64735 | Bottom panel side trim access hole cover | 64735-13050 |
| 64935 | Right trunk trim cover retainer | 64935-13080 |
| 64936 | Left trunk trim cover retainer | 64936-13030 |
