Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 6 PNC and OE references.

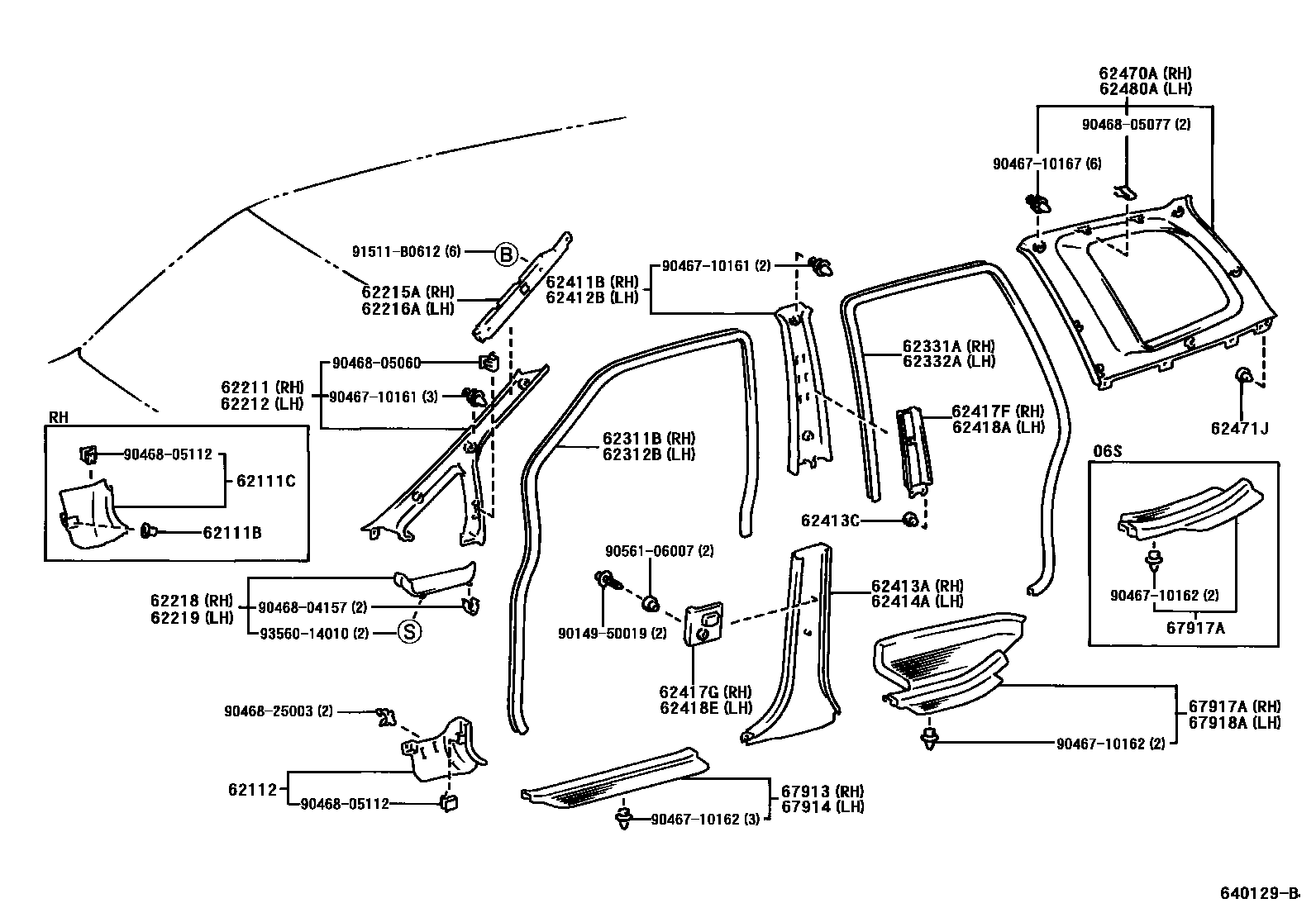

Toyota COROLLA 内饰板和车门防水胶条 EPC diagram — 640129B
内饰板和车门防水胶条 — 640129B (199701 – 999999)

PNC and OE references

PNCPart nameOE numbers
62215ARight front pillar decorative panel insert62215-13010 · 62215-13020
62216ALeft front pillar decorative panel insert62216-13010
62417FRight center pillar decorative panel lining62417-13010
62417GRight center pillar lower decorative panel lining62417-13020
62418ALeft center pillar decorative panel lining62418-13010
62418ELeft center pillar decorative panel lower lining62418-13020
