Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

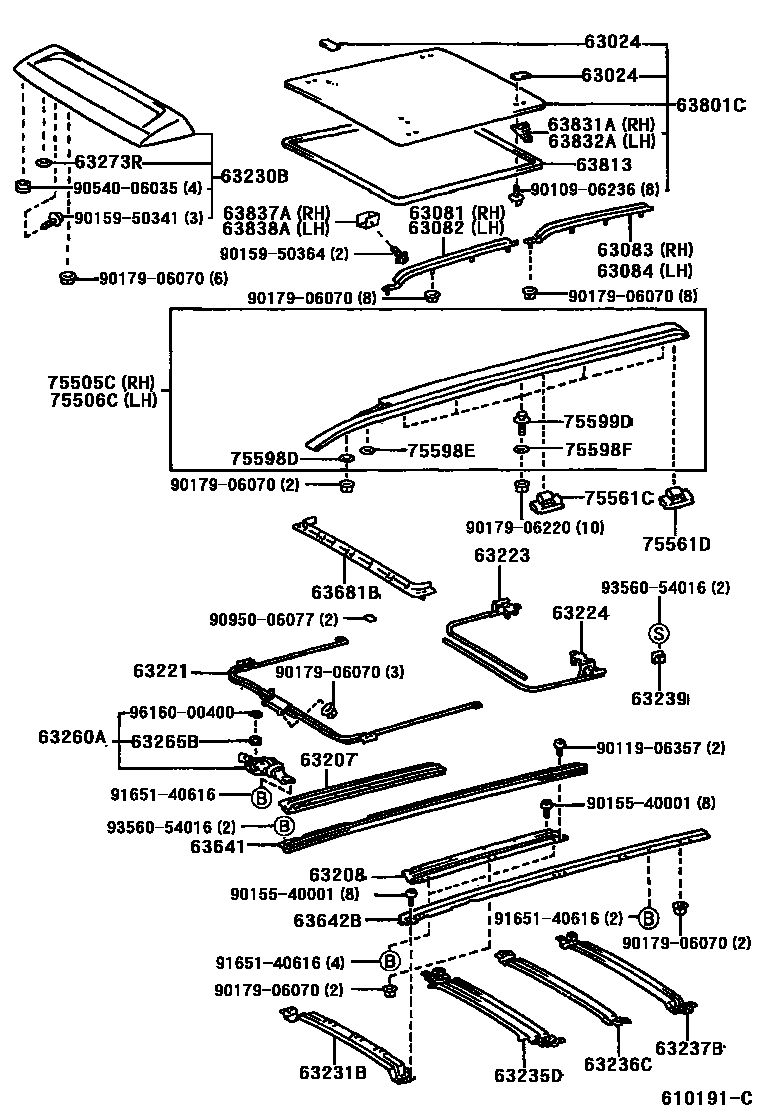

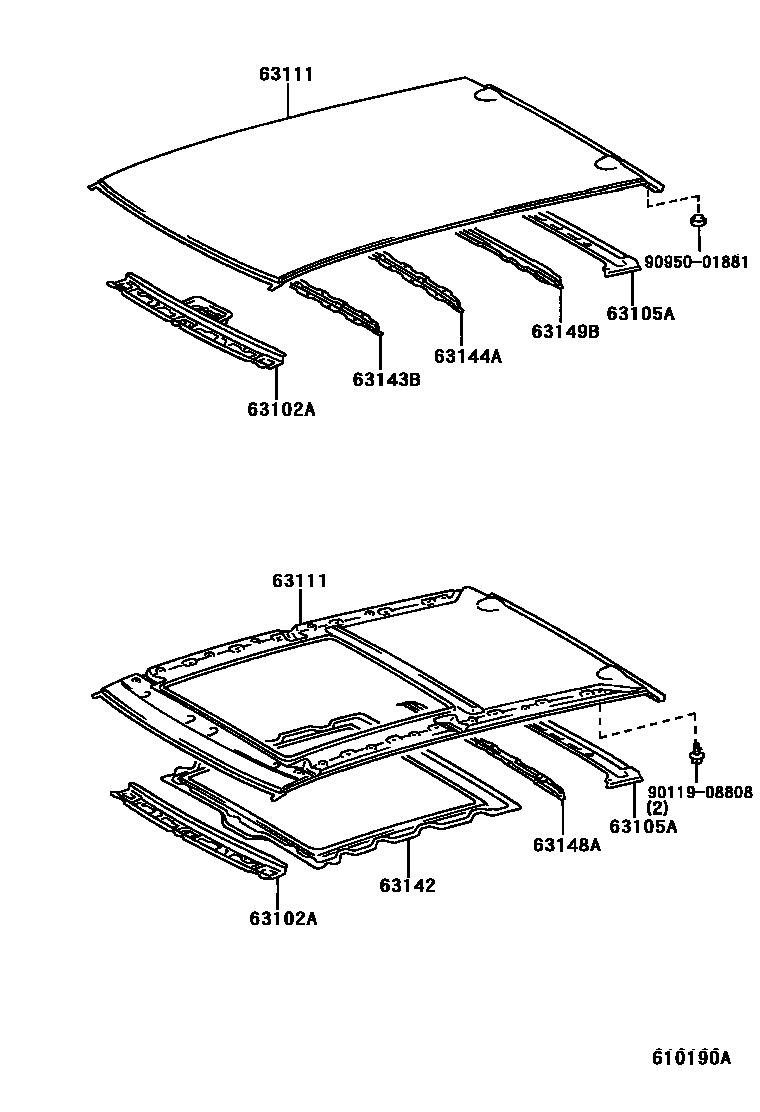

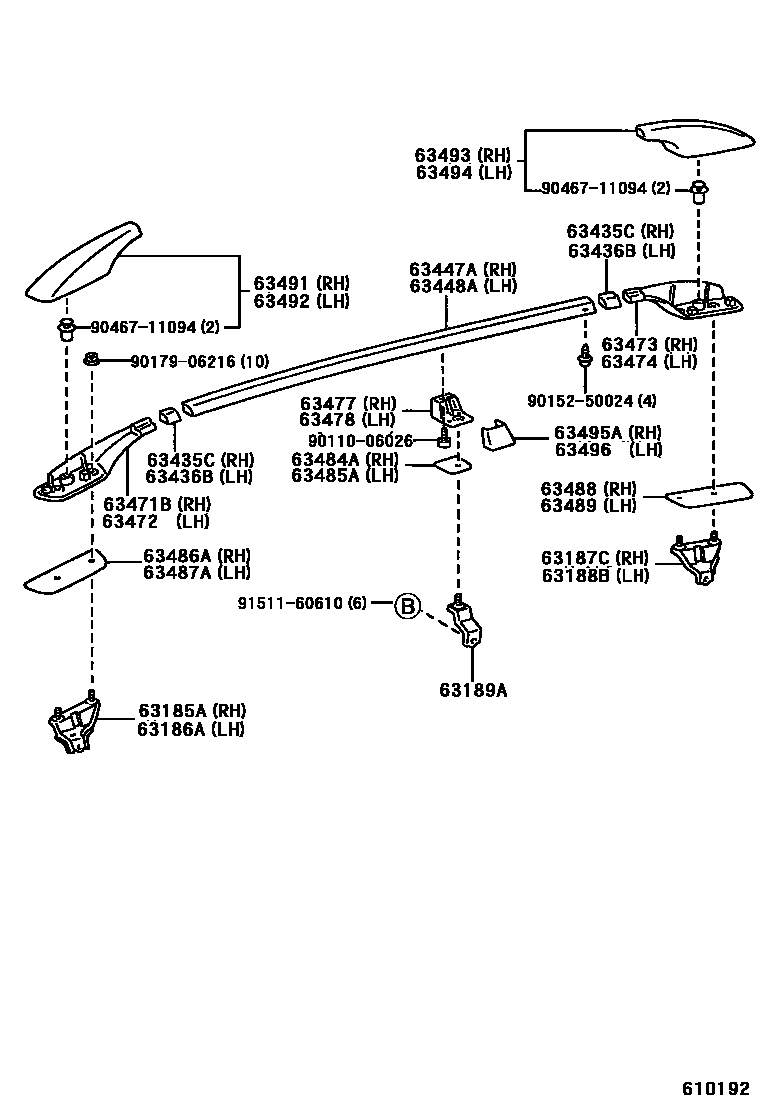

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 71 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63024 | Skylight hinge No. 1 seal sub-assembly | 63024-95700 |
| 63081 | Right rear sliding sunroof front longitudinal beam sub-assembly | 63081-13010 |
| 63082 | Left rear sliding sunroof front longitudinal beam sub-assembly | 63082-13010 |
| 63083 | Right rear sliding sunroof rear longitudinal beam sub-assembly | 63083-13010 |
| 63084 | Left rear sliding sunroof rear longitudinal beam sub-assembly | 63084-13010 |
| 63102A | Windshield roof sub-assembly | 63102-13040 · 63102-13050 |
| 63105A | Back door opening frame sub-assembly | 63105-13150 |
| 63111 | roof panel | 63111-13220 · 63111-13230 · 63111-13240 |
| 63142 | No. 2 roof panel reinforcement | 63142-13070 |
| 63143B | No. 3 roof panel reinforcement | 63143-13050 |
| 63144A | No. 4 roof panel reinforcement | 63144-13020 |
| 63148A | No. 7 roof panel reinforcement | 63148-13010 |
| 63149B | No. 1 rear roof panel reinforcement | 63149-13010 |
| 63185A | Right front roof rack bracket | 63185-13040 |
| 63186A | Left front roof rack bracket | 63186-13040 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-13010 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-13010 |
| 63189A | Center roof rack bracket | 63189-13040 |
| 63207 | Right sliding sunroof guide rail sub-assembly | 63207-13020 |
| 63208 | Left sliding sunroof guide rail sub-assembly | 63208-13020 |
| 63221 | Sliding sunroof cable duct | 63221-13020 |
| 63223 | Right sliding sunroof transmission cable | 63223-13020 |
| 63224 | Left sliding sunroof transmission cable | 63224-13020 |
| 63230B | Roof deflector assembly | 63230-13010 |
| 63231B | Sliding sunroof frame front frame | 63231-13010 |
| 63235D | central sliding skylight frame | 63235-13010 |
| 63236C | Sliding skylight frame No. 2 | 63236-13030 |
| 63237B | Rear sliding sunroof frame | 63237-13010 |
| 63239 | Sliding roof panel stop | 63239-13010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-13020 · 63260-13050 |
| 63265B | Sliding sunroof driving gear | 63265-12040 · 63265-20010 |
| 63273R | Skylight deflector seals | 63273-21010 |
| 63435C | Roof right storage rack No. 1 seal | 63435-13030 · 63436-13040 |
| 63436B | Roof left storage rack No. 1 seal | 63435-13040 · 63436-13020 |
| 63447A | Roof right side rail | 63447-13050 |
| 63448A | Roof left side rail | 63448-13050 |
| 63471B | Right front roof rack support | 63471-13040 |
| 63472 | Left front roof rack support | 63472-13040 |
| 63473 | Right rear roof rack support | 63473-13050 |
| 63474 | Left rear roof rack support leg | 63474-13050 |
| 63477 | Right center roof rack bracket | 63477-13040 |
| 63478 | Left center roof rack bracket | 63478-13040 |
| 63484A | Right center roof rack foot cushion | 63484-13040 |
| 63485A | Left center roof rack foot cushion | 63485-13040 |
| 63486A | Right front roof rack support foot cushion | 63486-13040 |
| 63487A | Left front roof rack support foot cushion | 63487-13040 |
| 63488 | Right rear roof rack foot cushion pad | 63488-13050 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-13050 |
| 63491 | Right front roof rack leg cover | 63491-13040 |
| 63492 | Left front roof rack leg cover | 63492-13040 |
| 63493 | Right rear roof rack foot cover | 63493-13050 |
| 63494 | Left rear roof rack leg cover | 63494-13050 |
| 63495A | Center roof rack foot cover | 63495-13040 |
| 63496 | Left center roof rack foot cover | 63496-13040 |
| 63641 | No. 1 right front sunshade slide rail | 63681-13020 |
| 63642B | No. 1 left front sunshade slide rail | 63682-13010 |
| 63681B | No. 1 front sunshade slide rail | 63681-13010 |
| 63801C | Rear sliding sunroof glass sub-assembly | 63801-13010 |
| 63813 | Rear sliding sunroof sealing strip | 63813-13010 |
| 63831A | Right rear sliding sunroof slider | 60383-13010 |
| 63832A | Left rear sliding sunroof slider | 60384-13010 |
| 63837A | Right rear sliding sunroof trim | 63837-13010 |
| 63838A | Left rear sliding sunroof trim | 63838-13010 |
| 75505C | Right front roof side trim sub-assembly | 75505-13040 |
| 75506C | Left front roof side trim sub-assembly | 75506-13040 |
| 75561C | Roof drain channel side decorative strip clip | 75561-13030 |
| 75561D | No. 2 roof drain channel side decorative strip clip | 75561-13040 |
| 75598D | No. 1 roof side trim seal | 75598-13010 |
| 75598E | No. 2 roof side trim seal | 75598-13020 |
| 75598F | No. 3 roof side trim seal | 75598-13030 |
| 75599D | Roof side trim bolts | 75599-95D00 |
