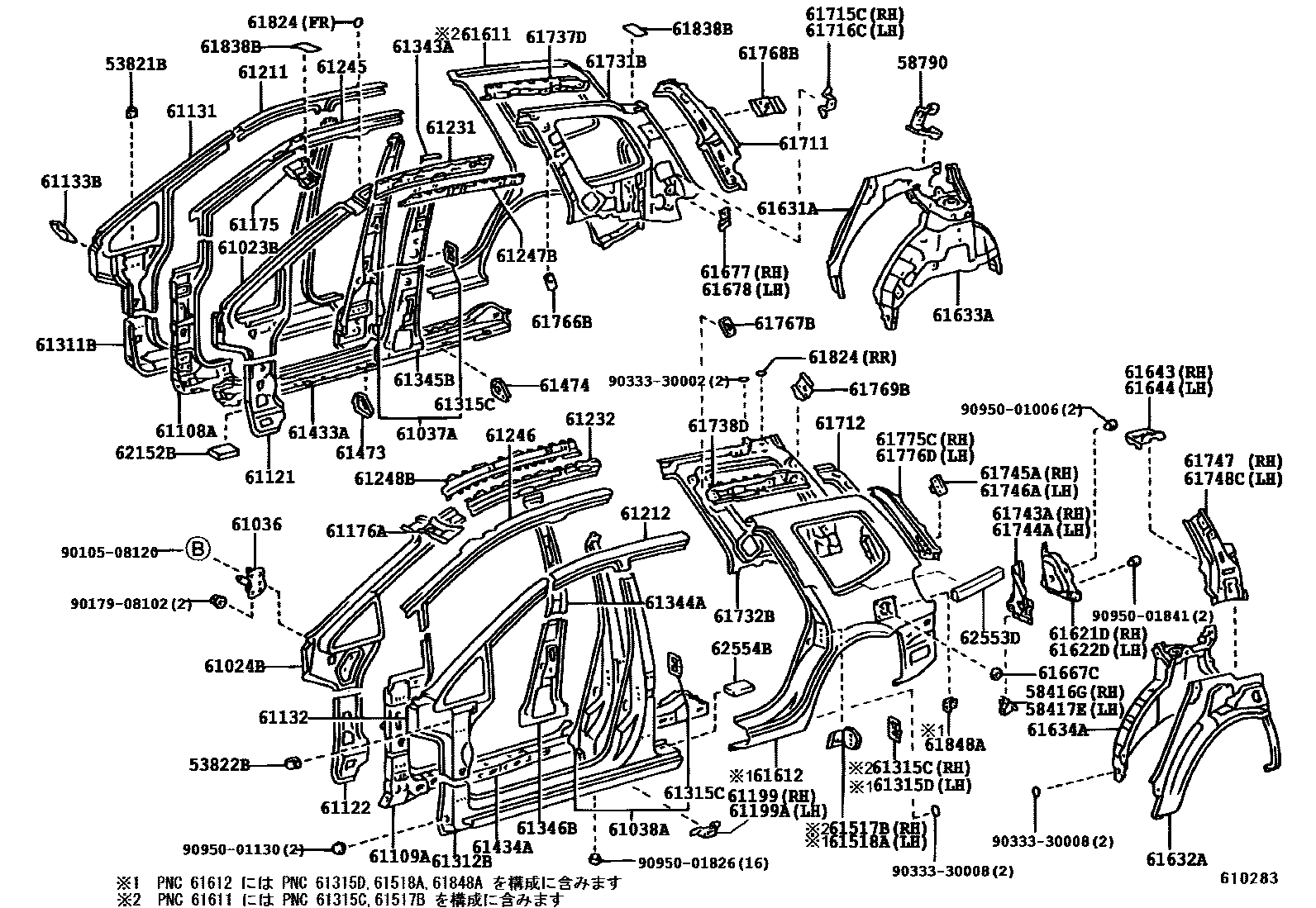

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 82 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 58416G | No. 1 base plate right bracket | 58418-13030 |
| 58417E | No. 1 base plate left bracket | 58419-13030 |
| 58790 | Jack bracket assembly | 58791-13080 |
| 61023B | Right body inner front pillar sub-assembly | 61023-13900 · 61023-13901 |
| 61024B | Left body inner front pillar sub-assembly | 61024-13900 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-13010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-13010 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-13010 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-13010 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-13010 |
| 61121 | Right front wall side outer panel | 61121-13010 |
| 61122 | Left front wall side outer panel | 61122-13010 |
| 61131 | Right body outer front upper pillar | 61131-13010 |
| 61132 | Left body outer front upper pillar | 61132-13010 |
| 61133B | Right body outer front pillar bracket | 61133-13010 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-13010 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-13010 |
| 61199 | Side panel to rear fender bracket | 61199-13010 |
| 61199A | Left side panel to rear fender bracket | 61199-13010 |
| 61211 | Roof right outer longitudinal beam | 61211-13060 |
| 61212 | Roof left outer longitudinal beam | 61212-13060 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-13160 |
| 61232 | Roof left inner longitudinal beam | 61232-13130 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-13010 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-13010 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-13010 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-13010 |
| 61311B | Right body outer center pillar | 61311-13010 |
| 61312B | Left body outer center pillar | 61312-13010 |
| 61315C | Right door latch fastener | 61315-22020 |
| 61315D | Left door latch fastener | 61315-22020 |
| 61343A | Right body inner center pillar | 61343-13010 |
| 61344A | Left body inner center pillar | 61344-13010 |
| 61345B | Right body inner middle and lower pillar | 61345-13010 |
| 61346B | Left side inner middle and lower pillar | 61346-13010 |
| 61433A | Right door outer sill reinforcement | 61433-13010 |
| 61434A | Left door outer sill reinforcement | 61434-13010 |
| 61473 | Bottom plate of column No. 3 | 61473-13010 |
| 61474 | Bottom plate of column No. 4 | 61474-13010 |
| 61517B | Right side locking column reinforcement | 61517-13010 |
| 61518A | Left side locking column reinforcement | 61518-13010 |
| 61611 | Right side hoarding | 61611-13340 |
| 61612 | left side panel | 61612-13340 |
| 61621D | Back door right opening slot | 61621-13040 · 61621-13041 |
| 61622D | Rear door left opening slot | 61622-13040 · 61622-13041 |
| 61631A | Right wheel cover outer panel | 61631-13100 |
| 61632A | Left side wheel cover outer panel | 61632-13090 |
| 61633A | Right wheel housing lining panel | 61607-13200 · 61607-13240 |
| 61634A | Left side wheel housing lining panel | 61608-13190 · 61608-13230 |
| 61643 | Right wheel housing center corner panel | 61643-13040 |
| 61644 | Left side wheel housing center corner panel | 61643-13040 |
| 61667C | No. 1 side panel seal | 61667-12110 |
| 61677 | Right No. 2 seat belt anchor lower reinforcement | 61677-13020 |
| 61678 | Left No. 2 seat belt anchor lower reinforcement | 61678-13020 |
| 61711 | Roof right side outer panel | 61711-13110 |
| 61712 | Roof left outer panel | 61712-13110 |
| 61715C | Roof right bracket | 61715-13040 |
| 61716C | Roof left bracket | 61716-13030 |
| 61731B | Roof right inner panel | 61731-13370 |
| 61732B | Roof left inner panel | 61732-13380 |
| 61737D | Roof right inner reinforcement | 61737-13050 |
| 61738D | Roof left inner reinforcement | 61709-13020 |
| 61743A | Rear door opening right reinforcement | 61743-13030 |
| 61744A | Rear door opening left reinforcement | 61744-13030 |
| 61745A | Back door opening lower right reinforcement | 61745-13090 |
| 61746A | Rear door opening lower left reinforcement | 61746-13080 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-13040 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-13070 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-12220 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-12180 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-13060 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-13060 |
| 61775C | Opening frame on the right side of the back door | 61775-13010 |
| 61776D | Back door left opening frame | 61776-13010 |
| 61824 | Noise Control Panel No. 1 | 61824-13010 · 61825-13010 |
| 61838B | No. 5 Noise Control Panel | 61838-20060 |
| 61848A | Left side panel fixing | 61848-13010 |
| 62152B | No. 2 silencer pad on cowl side | 62151-20160 |
| 62553D | No. 3 column pad | 62553-13020 |
| 62554B | No. 4 column pad | 62554-12130 |
