Toyota COROLLA 地板垫和地毯 — Figure 5804

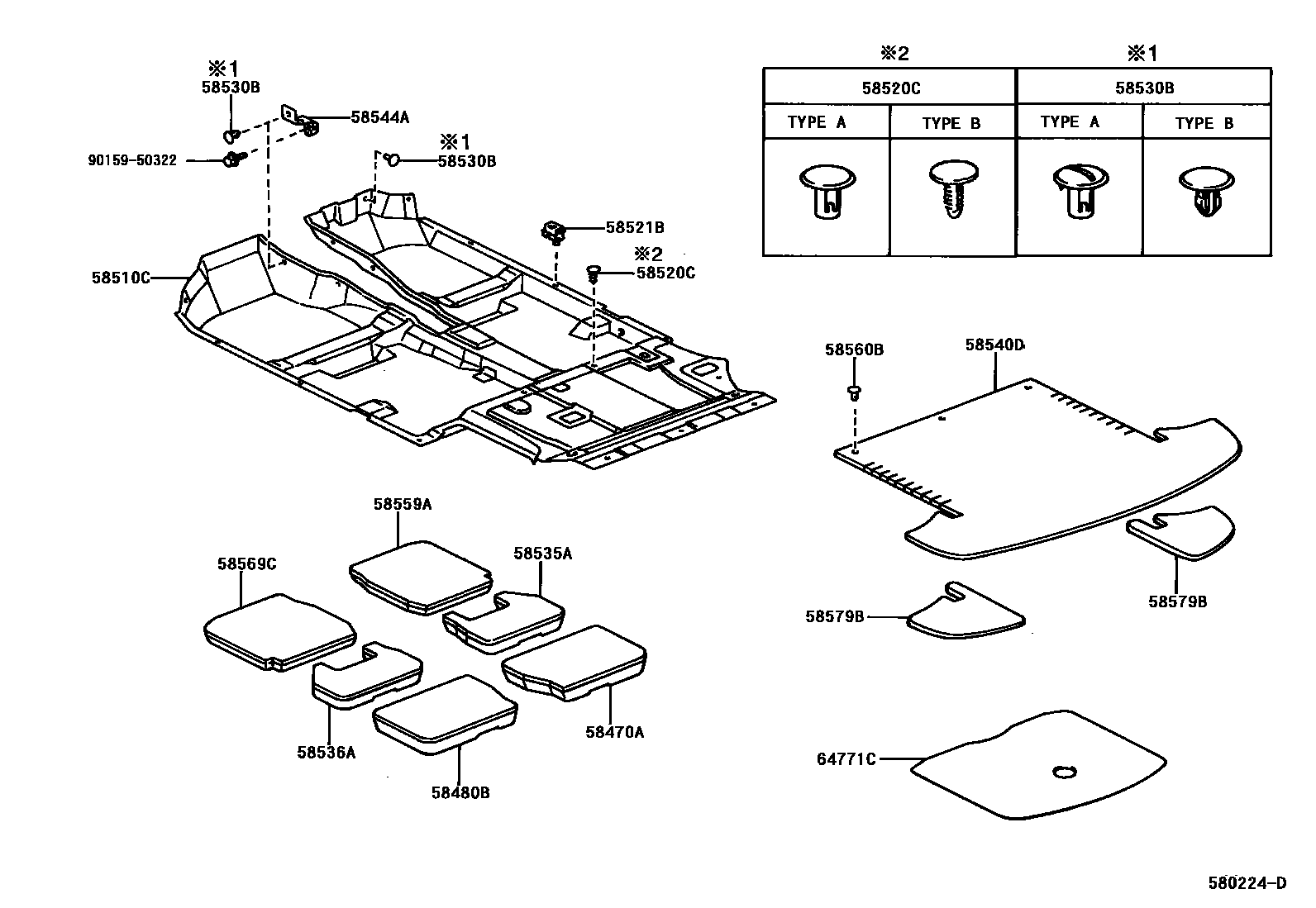

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58470A | Rear floor plate No. 1 assembly | 58470-13010 · 58470-13020 · 58470-13030 · 58470-13040 |
| 58480B | Rear floor plate No. 2 assembly | 58480-13010 |
| 58521B | carpet hook | 58521-12120 |
| 58530B | Clip (for front carpet) | 90467-09118 |
| 58535A | Front floor No. 1 rear pad | 58535-13020 · 58535-13030 · 58535-13040 |
| 58536A | Front floor No. 2 rear pad | 58536-13020 |
| 58544A | left carpet bracket | 58544-13040 |
| 58559A | Front floor right pad | 58559-13010 · 58559-13020 · 58559-13030 · 58559-13040 |
| 58569C | Front floor left pad | 58569-13010 · 58569-13030 |
| 58579B | rear floor pad | 58579-13040 · 58579-13050 |
| 64771C | Spare Wheel Cover | 58401-13050 |
