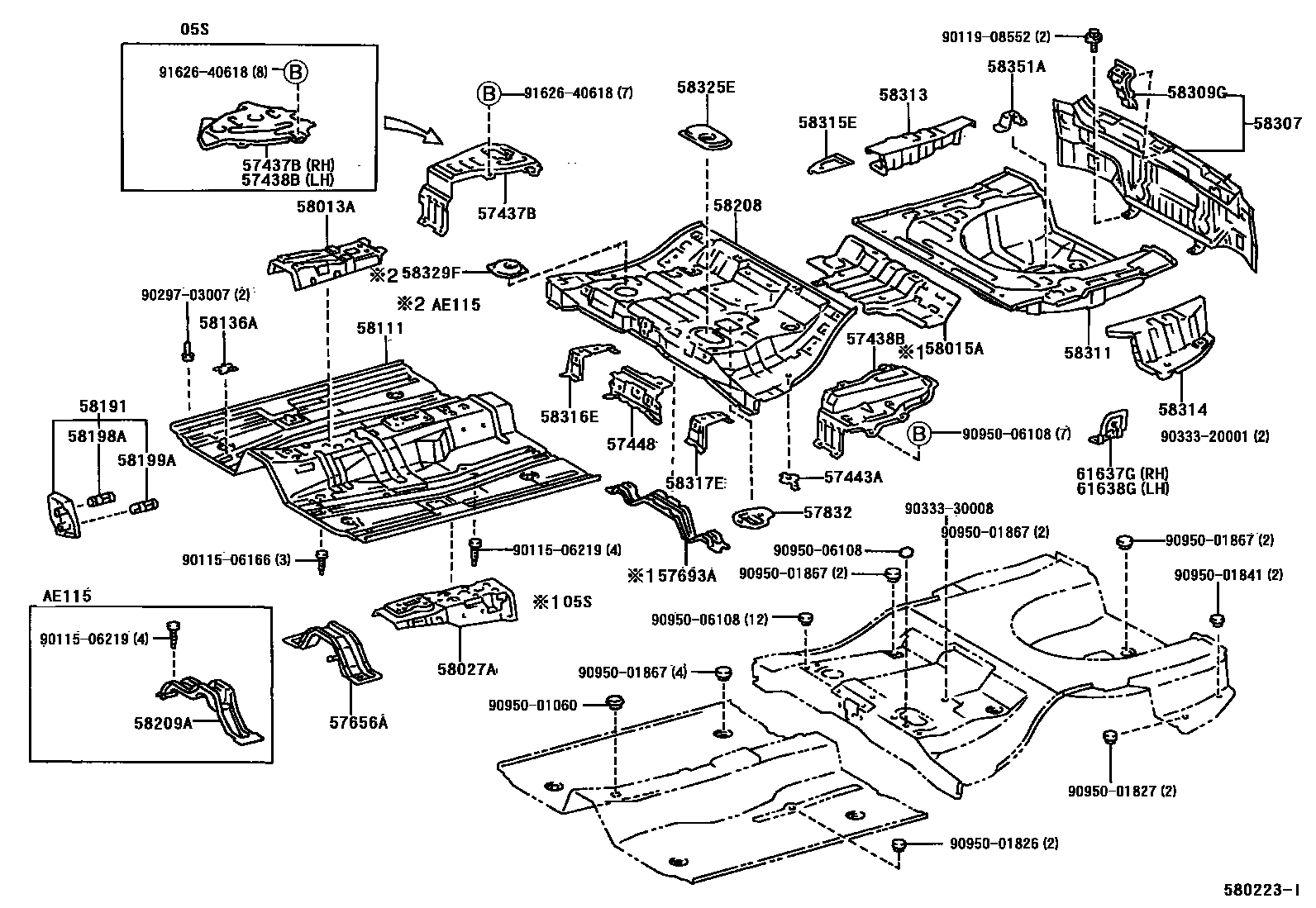

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57437B | Right rear running board side lining | 57437-13010 · 57437-13030 · 58303-13010 |
| 57438B | Left rear running board side lining | 57438-13010 · 57438-13020 |
| 57443A | Right rear running board bracket | 57443-13010 |
| 57448 | Central floor beam fixings | 57448-13010 |
| 57656A | No. 1 exhaust pipe mounting bracket | 57656-12060 |
| 57693A | Fuel tank right mounting bracket reinforcement | 57693-13030 · 57693-13050 |
| 57832 | Rear No. 1 seat support No. 2 front reinforcement | 57832-13010 · 57832-13020 |
| 58013A | Front floor and rear upper panel sub-assembly | 58013-12060 · 58013-12070 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-13030 · 58015-13040 |
| 58027A | Seat belt anchor reinforcement sub-assembly | 58027-12121 · 58027-12132 |
| 58111 | front floor pan | 58111-12262 · 58111-12263 · 58111-12272 · 58111-12273 |
| 58136A | Front floor access hole cover | 58136-12030 |
| 58191 | Front floor footrest | 58191-13010 |
| 58198A | No. 1 footrest clip | 58198-13010 |
| 58199A | Footrest clip No. 2 | 58199-13010 |
| 58208 | central floor base | 58211-13140 · 58211-13150 · 58211-13210 · 58211-13220 · 58211-13230 · 58211-13240 |
| 58209A | Drive shaft center bracket reinforcement sub-assembly | 58209-12040 |
| 58307 | Body lower back panel sub-assembly | 58307-13130 |
| 58309G | Rear door lock fastener sub-assembly | 58309-13020 |
| 58311 | rear floor pan | 58311-13170 · 58311-13220 |
| 58313 | Rear floor right panel | 58313-13140 |
| 58314 | rear floor left panel | 58314-13130 |
| 58315E | Rear floor right front side panel extension | 58315-12070 |
| 58316E | Rear seat assembly mounting bracket | 58316-13040 |
| 58317E | Rear seat No. 2 fixed parts | 58317-13030 |
| 58325E | Rear floor access hole cover | 58325-13010 |
| 58329F | Rear floor manhole cover No. 2 | 58329-13010 |
| 58351A | Spare tire rack bracket | 58351-12040 |
| 61637G | Right wheel cover bracket | 61073-13010 · 61637-13010 |
| 61638G | Left side wheel cover bracket | 61074-13010 · 61638-13010 |
