Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

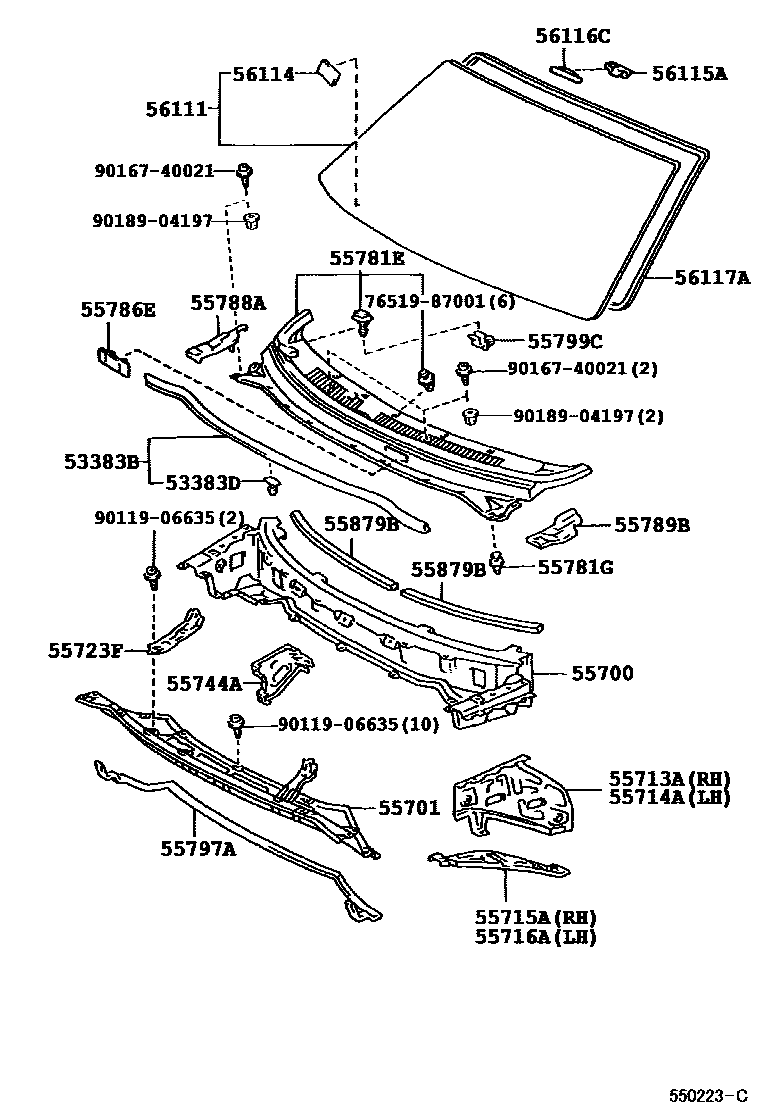

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-13010 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55700 | Front panel assembly | 55700-13010 |
| 55701 | Front apron sub-assembly | 55701-13010 |
| 55713A | Right front wall upper side panel | 55713-13010 |
| 55714A | Left front wall upper side panel | 55714-13010 |
| 55715A | From cowl upper cover to fender right stay | 55715-13010 |
| 55716A | From cowl upper cover to fender left stay | 55716-13010 |
| 55723F | From the cowl upper cover to the No. 3 bracket inside the cowl | 55723-13010 |
| 55744A | Pedal bracket mounting reinforcement | 55744-13010 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-13010 · 55708-13020 |
| 55786E | Ventilation grille connection plate on front apron | 55786-13010 |
| 55788A | Ventilation grille protector on front apron | 55788-13010 |
| 55789B | Ventilation grille protector on front apron No. 2 | 55789-13010 |
| 55797A | Front wall pumping device seal | 55797-13010 |
| 55799C | Ventilation grille clips on front apron | 55799-13010 |
| 55879B | cowl vent seal | 55879-12090 |
| 56111 | windshield | 56101-13010 |
| 56114 | windshield stopper | 56114-13010 |
| 56115A | Windshield block No. 1 | 56115-13010 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-13010 |
