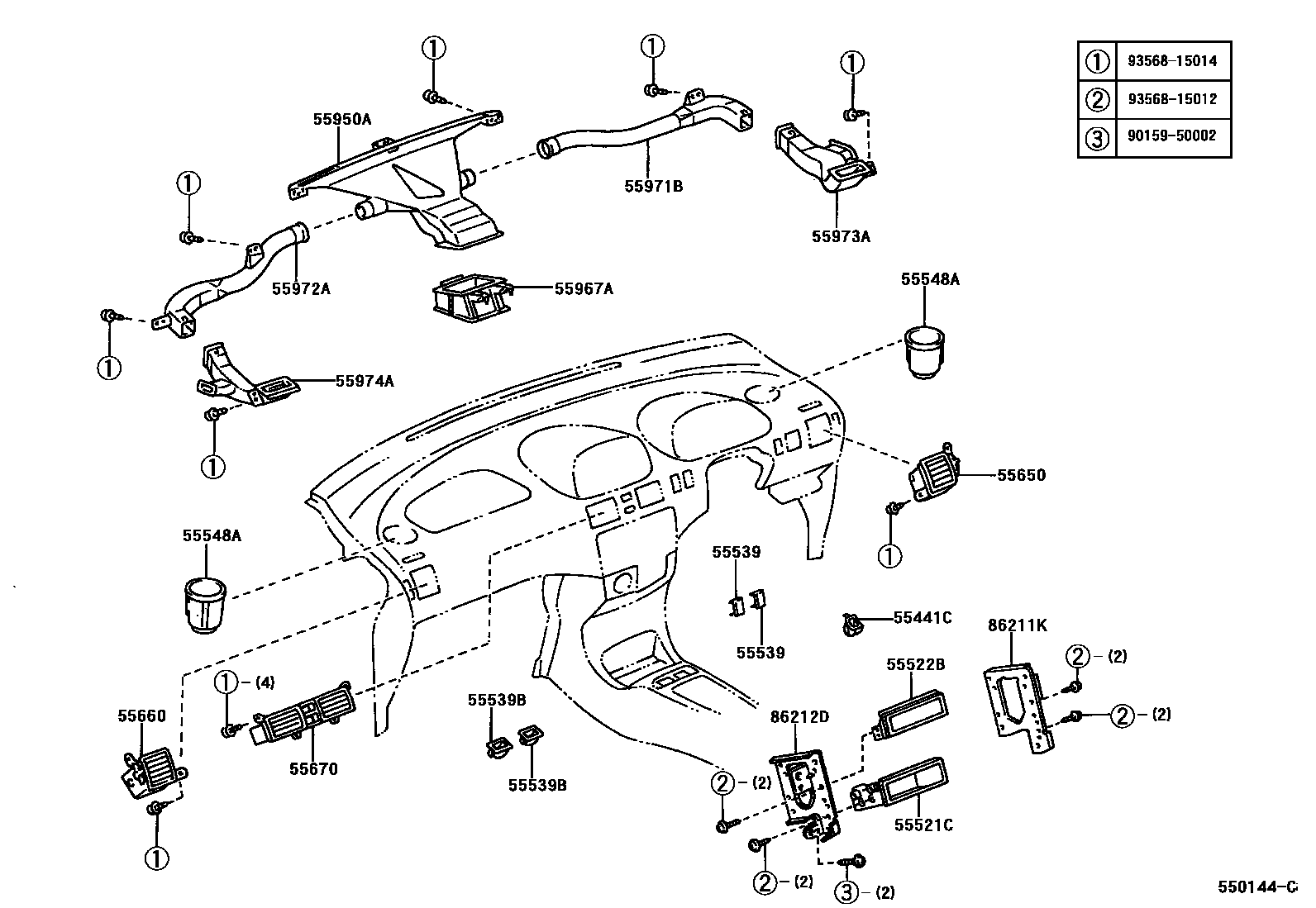

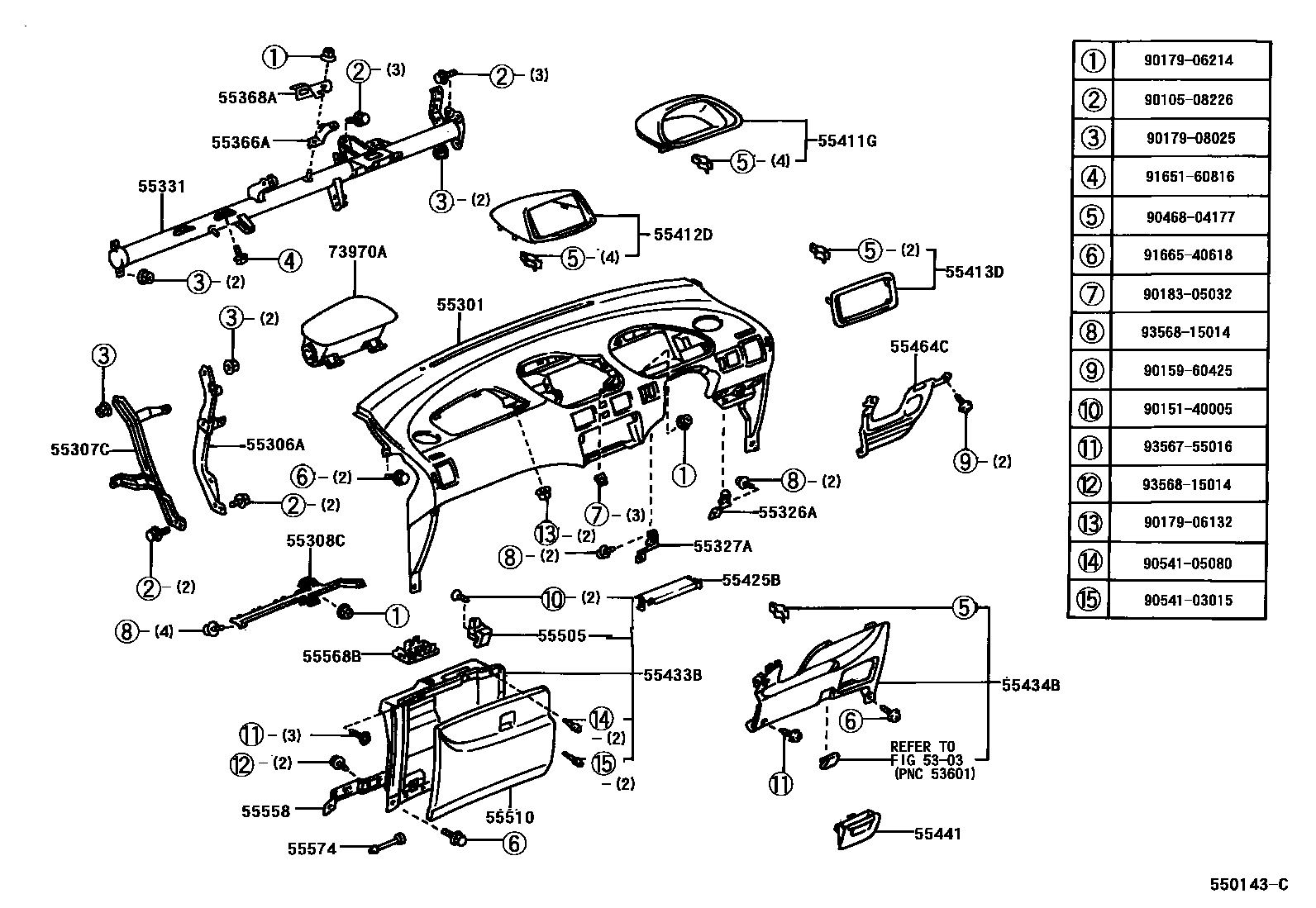

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-13010 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-13010 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-13010 |
| 55326A | Dashboard No. 1 stay | 55326-13010 |
| 55327A | Instrument panel support No. 2 | 55327-13010 |
| 55331 | Dashboard reinforcement | 55330-13010 · 55330-13011 |
| 55366A | Radio No. 1 mounting bracket | 55366-13010 |
| 55368A | Radio No. 2 mounting bracket | 55368-13010 |
| 55413D | Center instrument cluster lower decorative panel | 55413-13020 |
| 55425B | Instrument cluster decorative panel reinforcement | 55425-13010 |
| 55464C | Dashboard lower right pad insert | 55464-13010 |
| 55521C | stereo system hole cover | 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55558 | Glove box cover reinforcement | 55558-13010 |
| 55568B | Glove box cover decorative panel | 55568-24020 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55950A | Defroster nozzle assembly | 55950-13010 |
| 55967A | Lower defroster nozzle | 55967-13010 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-13010 |
| 55972A | Side defroster No. 2 nozzle air duct | 55972-13010 |
| 55973A | Side defroster No. 3 nozzle air duct | 55973-13010 |
| 55974A | Defroster No. 4 nozzle side air duct | 55974-13010 |
| 86211K | Right stereo system hole cover bracket | 86211-12290 |
| 86212D | Left stereo system hole cover bracket | 86212-12270 |
