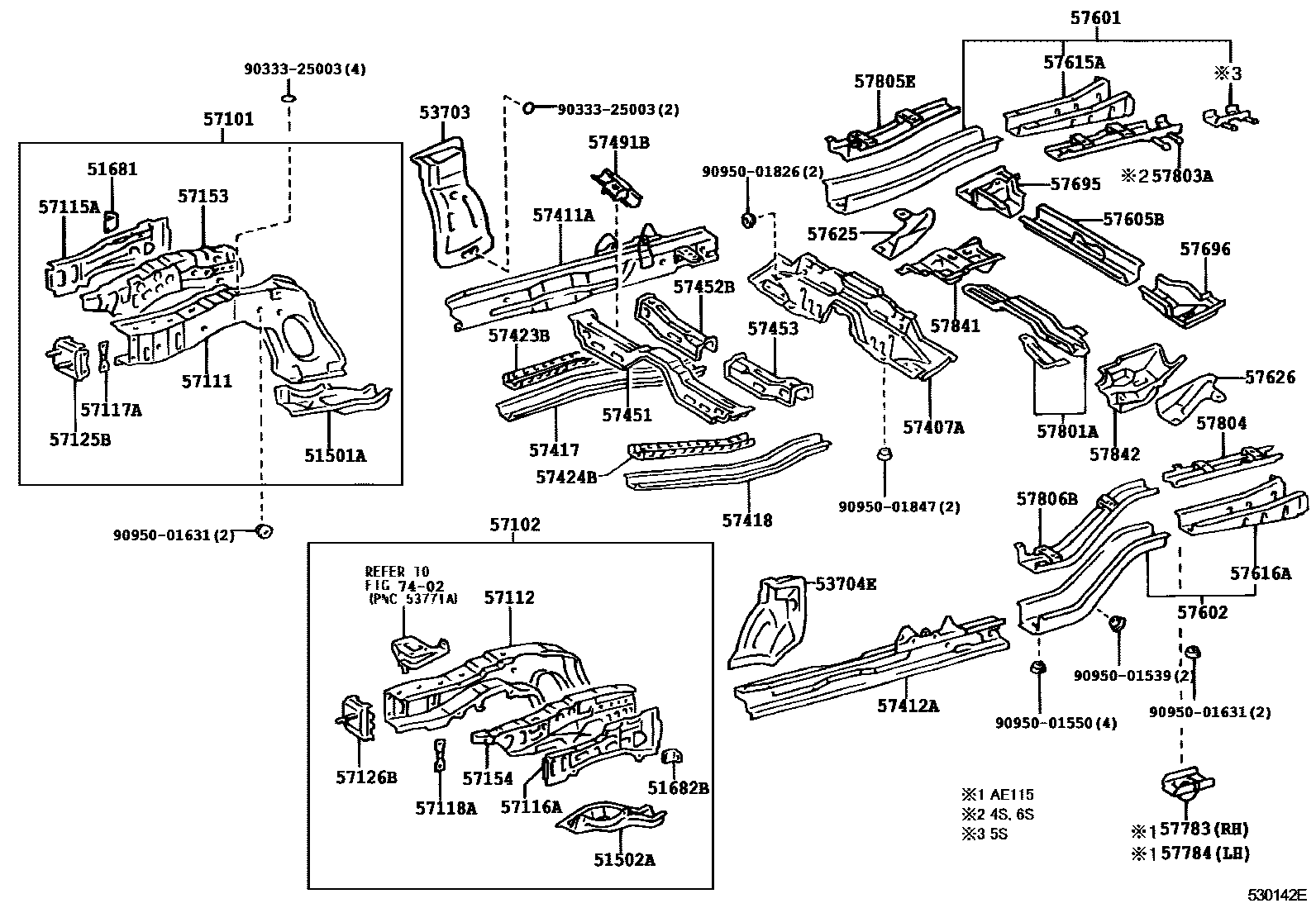

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51501A | Right front suspension cross member reinforcement sub-assembly | 51501-13010 |
| 51502A | Left front suspension cross member reinforcement sub-assembly | 51502-13010 |
| 51681 | Flexible hose bracket | 51681-12050 |
| 51682B | Left side flexible hose bracket | 51682-12060 |
| 53703 | Right front fender, rear fender sub-assembly | 53703-13010 |
| 53704E | Left front fender rear fender sub-assembly | 53704-13010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-13900 · 57101-13901 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-13900 · 57102-13901 |
| 57111 | Right front longitudinal beam | 57111-12201 |
| 57112 | Left front longitudinal beam | 57112-12142 |
| 57115A | Right front longitudinal beam outer panel | 57115-12060 |
| 57116A | Left front longitudinal beam outer panel | 57116-12060 |
| 57117A | Front bumper mounting reinforcement | 57117-12110 |
| 57118A | Install reinforcement on the left side of the front bumper | 57117-12110 |
| 57125B | Right front longitudinal beam reinforcement | 57125-12090 · 57125-13010 |
| 57126B | Left front longitudinal beam reinforcement | 57126-12050 · 57126-13010 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-13010 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-13010 |
| 57407A | Center floor beam sub-assembly | 57407-13080 · 57407-13090 |
| 57411A | Floor right inner longitudinal beam | 57401-13030 · 57401-13040 · 57401-13050 · 57401-13060 |
| 57412A | Floor left inner longitudinal beam | 57402-13030 · 57402-13040 |
| 57417 | Front floor lower right reinforcement | 57417-13010 |
| 57418 | Front floor lower left reinforcement | 57418-13010 |
| 57423B | Right inner reinforcement under front floor | 57423-13010 |
| 57424B | Left inner reinforcement under front floor | 57424-13010 |
| 57451 | front floor cross member | 57451-12152 · 57451-12153 · 57451-12170 |
| 57452B | Front floor beam No. 2 | 57051-13010 · 57051-13020 · 57452-13020 · 57452-13030 |
| 57453 | Front floor beam No. 3 | 57453-13010 · 57453-13020 |
| 57491B | Front floor No. 1 beam right bracket | 57491-13010 · 57491-13020 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-13250 · 57601-13340 · 57601-13350 · 57601-13360 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-13240 · 57602-13320 · 57602-13330 · 57602-13340 · 57602-13370 · 57602-13371 · 57602-13380 · 57602-13381 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12140 · 57605-12150 · 57605-13060 · 57605-13070 |
| 57615A | Rear floor right rear longitudinal member | 57615-13900 · 57615-13901 |
| 57616A | Rear floor left rear longitudinal member | 57616-13900 · 57616-13901 · 57616-13902 |
| 57625 | Rear floor right longitudinal beam reinforcement | 57626-13040 |
| 57626 | Rear floor left longitudinal beam reinforcement | 57627-13030 |
| 57695 | Rear floor cross member rear right extension | 57695-12030 · 57703-12080 |
| 57696 | Rear floor cross member rear left extension | 57696-12030 · 57704-12100 |
| 57783 | Right body No. 8 mounting bracket | 57783-12010 |
| 57784 | Left body No. 8 mounting bracket | 57784-12010 |
| 57801A | Rear floor right longitudinal beam reinforcement sub-assembly | 57802-13020 · 57802-13030 |
| 57803A | Rear floor right rear longitudinal beam reinforcement sub-assembly | 57803-13010 |
| 57804 | Rear floor left rear longitudinal beam reinforcement sub-assembly | 57804-13020 |
| 57805E | Right seat belt anchor reinforcement sub-assembly | 57805-13010 · 57805-13020 · 57805-13030 |
| 57806B | Left seat belt anchor reinforcement sub-assembly | 57806-13020 · 57806-13030 |
| 57841 | Rear No. 2 seat support leg right front reinforcement | 57841-13010 |
| 57842 | Rear No. 2 seat support leg left front reinforcement | 57842-13010 |
