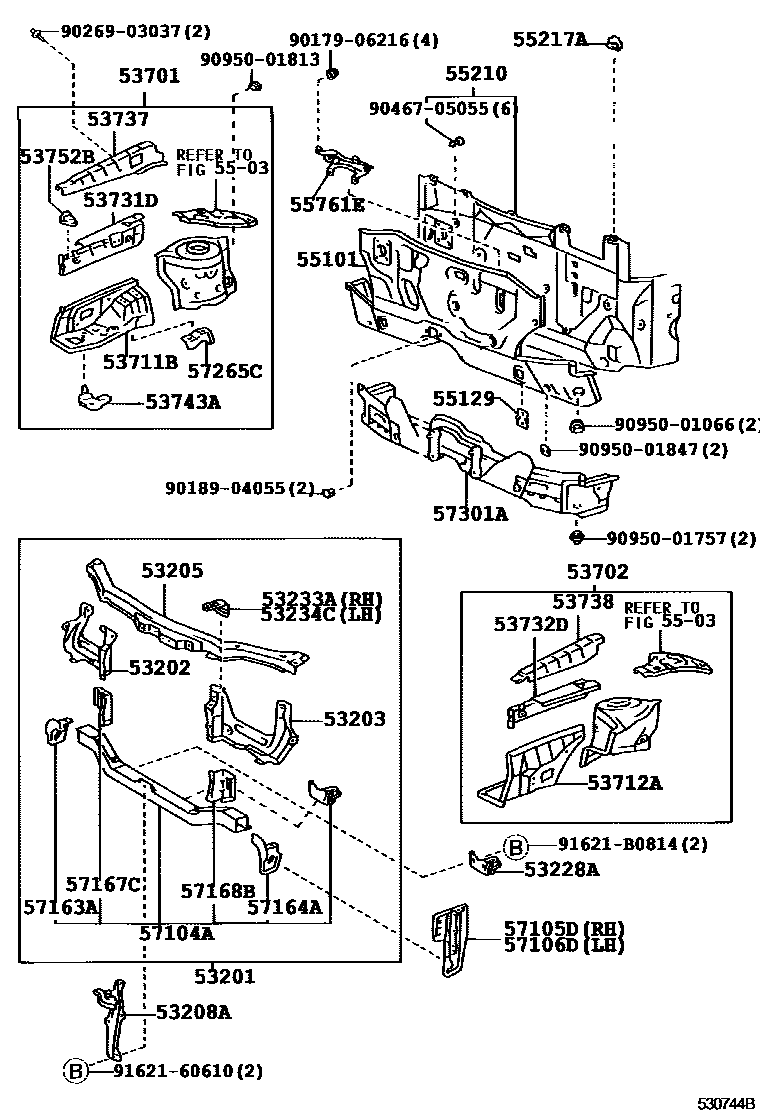

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-13010 · 53201-13020 |
| 53202 | Radiator right side bracket sub-assembly | 53202-13010 |
| 53203 | Radiator left bracket sub-assembly | 53203-13010 |
| 53205 | Radiator upper bracket sub-assembly | 53205-13010 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-13040 |
| 53228A | Radiator No. 1 lower mounting bracket | 53228-12130 |
| 53233A | No. 1 right headlight bracket | 53233-13010 |
| 53234C | No. 1 left headlight bracket | 53234-13010 |
| 53701 | Right front fender fender sub-assembly | 53701-13020 |
| 53702 | Left front fender fender sub-assembly | 53702-13020 |
| 53711B | Right front fender front fender | 53711-12902 |
| 53712A | Left front fender with bracket | 53712-12182 |
| 53731D | Right front fender to cowl side upper beam | 53731-13010 |
| 53732D | Left front fender to cowl side upper beam | 53732-13010 |
| 53737 | Right front fender to front wall side sill | 53737-13010 |
| 53738 | Left front fender to front wall side sill | 53738-13010 |
| 53743A | Right front fender fender front reinforcement | 53743-12040 |
| 53752B | Cleaner water tank mounting bracket | 53752-13010 |
| 55101 | Front apron sub-assembly | 55101-13010 · 55101-13020 |
| 55129 | Front panel hole cover | 55129-12030 |
| 55210 | Front wall insulation pad assembly | 55210-13010 |
| 55217A | Front apron muffler fixings | 55217-13010 |
| 55761E | Heater mounting bracket | 55761-13010 |
| 57104A | Front cross member sub-assembly | 57104-12030 · 57104-12080 |
| 57105D | Right front longitudinal beam plate sub-assembly | 57105-12120 · 57105-12130 · 57105-13010 |
| 57106D | Left front longitudinal beam plate sub-assembly | 57106-12110 · 57106-13010 |
| 57163A | No. 1 front cross member right reinforcement | 57163-12120 · 57163-12130 |
| 57164A | No. 1 front cross member left reinforcement | 57164-12070 · 57164-12080 |
| 57167C | Front cross member right corner panel | 57167-12100 |
| 57168B | Front cross member left corner panel | 57168-12100 |
| 57265C | Engine right side mounting bracket | 57265-12050 |
| 57301A | Steering housing support beam sub-assembly | 57301-13010 |
