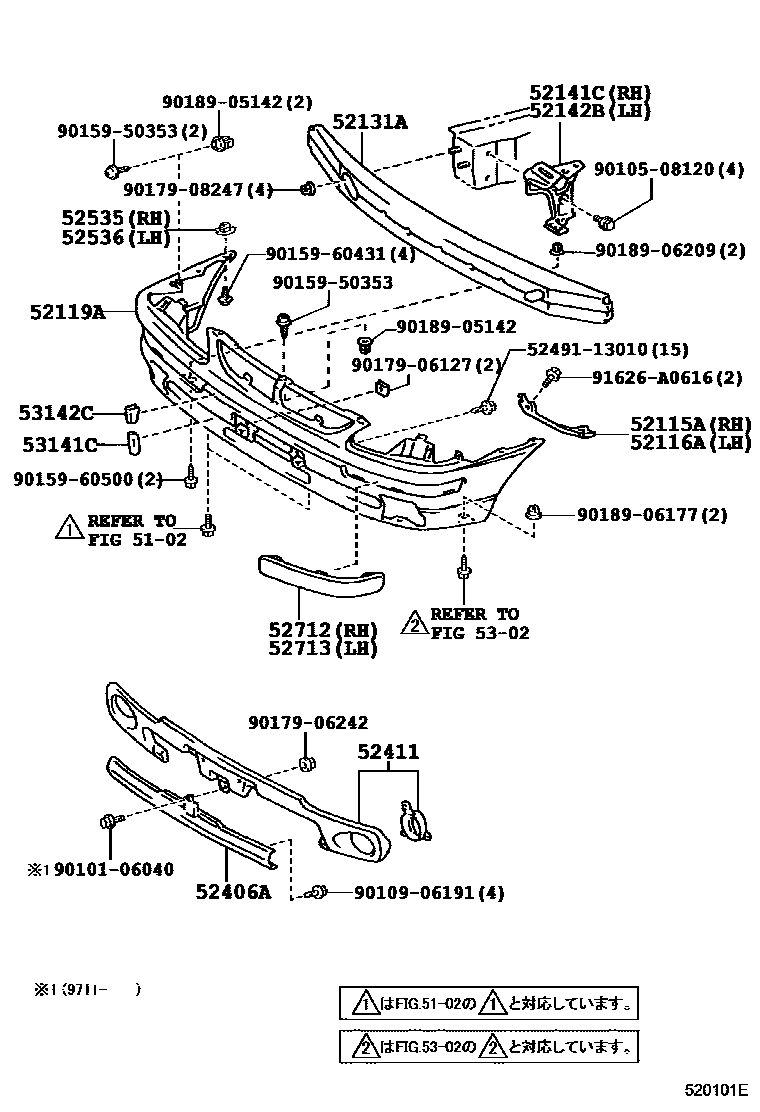

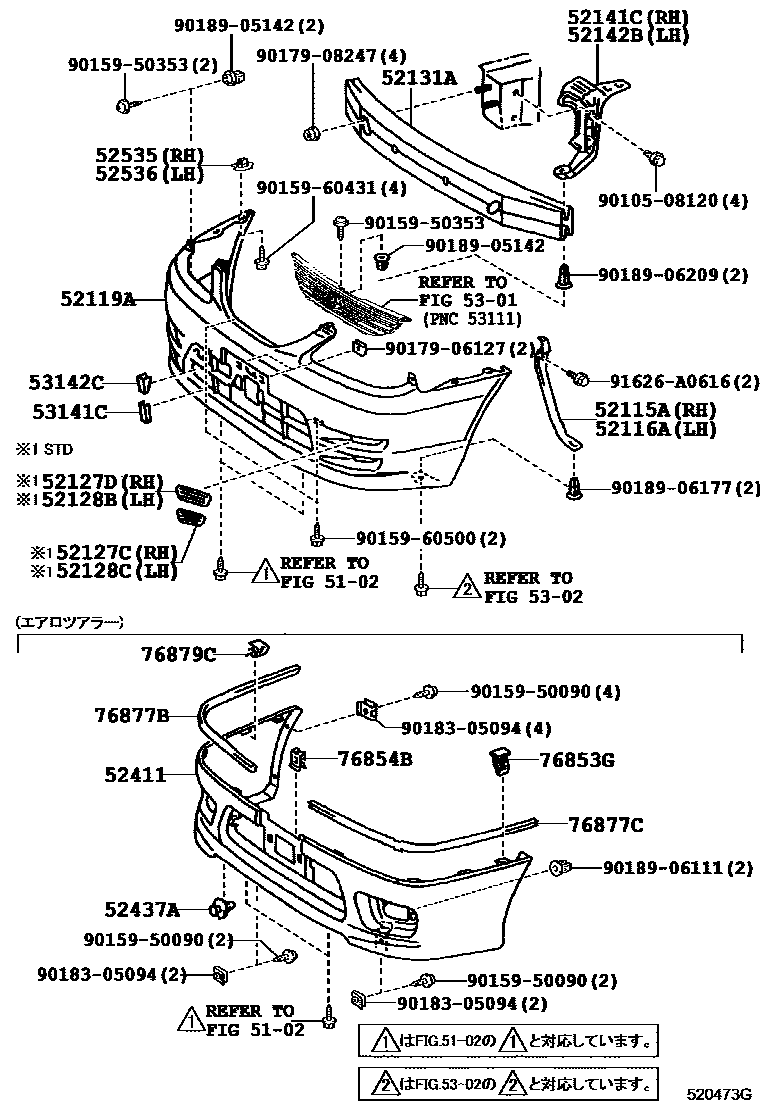

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52115A | Front bumper right side bracket | 52115-13030 |
| 52116A | Front bumper left bracket | 52116-13020 |
| 52127C | Front bumper hole cover | 52127-13050 |
| 52127D | Front bumper right hole cover | 52127-13040 |
| 52128B | Front bumper left hole cover | 52128-13040 |
| 52128C | Front bumper left hole cover | 52128-13050 |
| 52131A | Front bumper reinforcement | 52131-13010 |
| 52141C | Front bumper right arm | 52130-13010 · 52141-13020 |
| 52142B | Front bumper left arm | 52140-13010 · 52142-13020 |
| 52406A | Front bumper anti-collision bar decorative part sub-assembly | 52406-13020 · 52406-13030 |
| 52437A | Front bumper anti-collision bar cover fixing parts | 67771-12070 |
| 52535 | Front bumper right side fixing bracket | 52535-13020 |
| 52536 | Front bumper left fixed bracket | 52535-13020 |
| 52712 | Front bumper right side protective strip | 52712-13020 |
| 52713 | Front bumper protection strip screw plug | 52713-13020 |
| 53141C | Radiator grille trim | 53141-13010 · 53141-13030 |
| 53142C | Radiator grille trim part 2 | 53142-13010 · 53142-13020 |
| 76853G | No. 1 front bumper anti-collision bar fixing piece | 76853-10010 |
| 76854B | No. 2 front spoiler fixing piece | 76854-44010 |
| 76879C | No. 1 front bumper anti-collision bar clip | 76879-44010 |
