Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

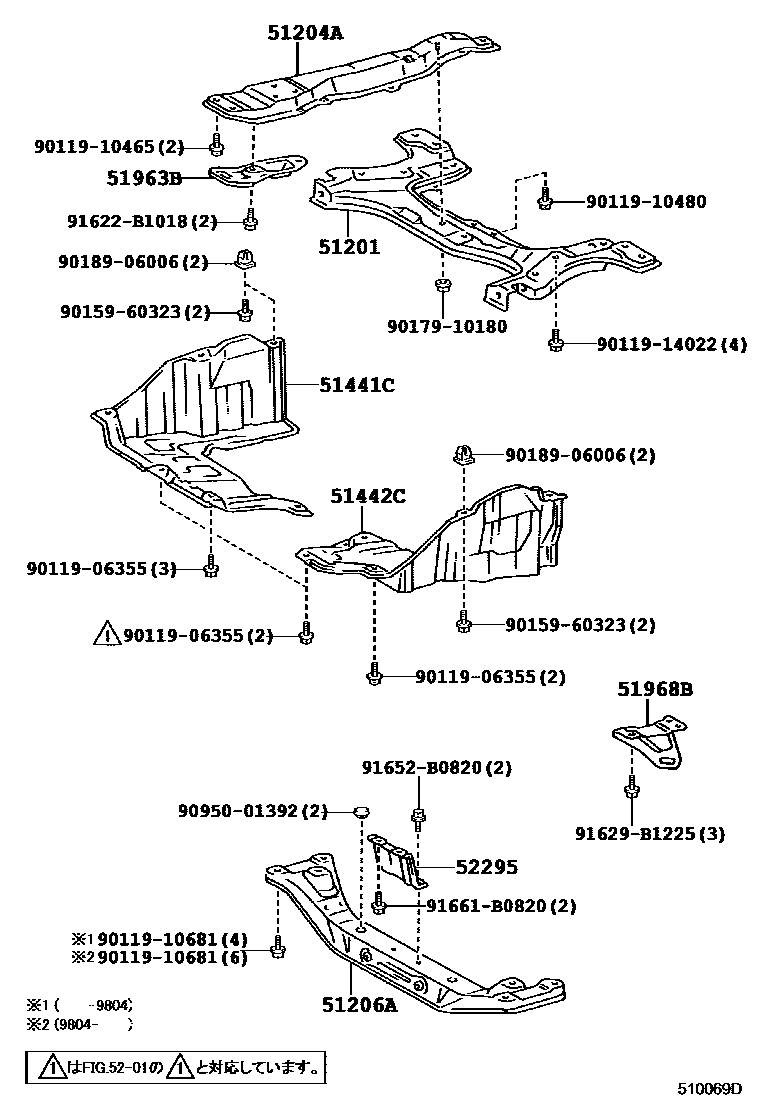

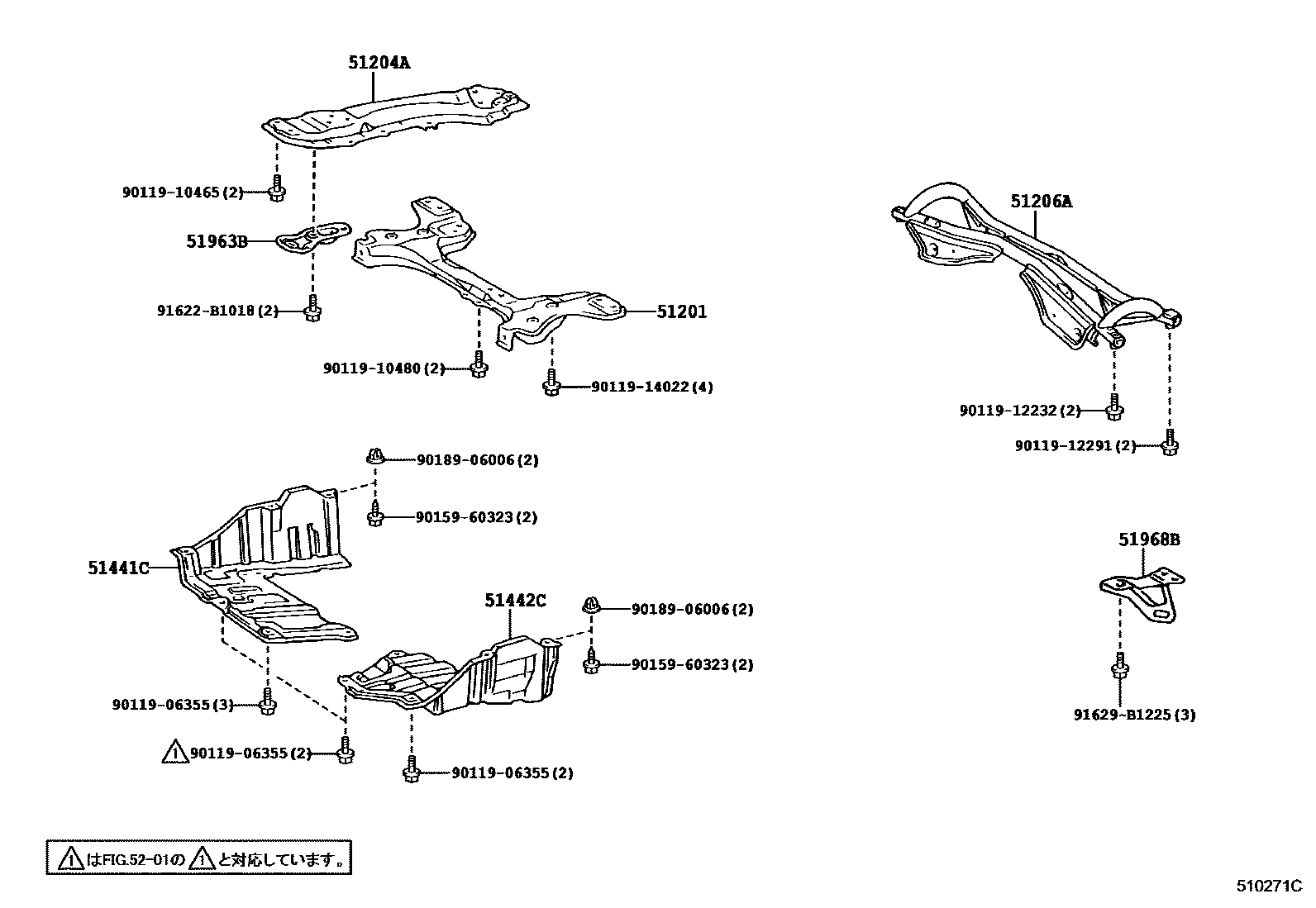

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12380 · 51201-12390 |
| 51204A | Engine center mount beam sub-assembly | 51204-12080 · 51204-12081 · 51204-12082 · 51204-12110 |
| 51206A | Rear suspension cross member sub-assembly | 51206-12040 · 51206-12060 · 51206-12070 |
| 51441C | Engine right bottom cover | 51441-12150 |
| 51442C | Engine left bottom cover | 51442-12110 |
| 51963B | Right front transport hook | 51963-12210 |
| 51968B | Left rear transport hook | 51968-13020 |
| 52295 | Right rear suspension cross member bracket | 52295-12010 · 52295-12020 |
