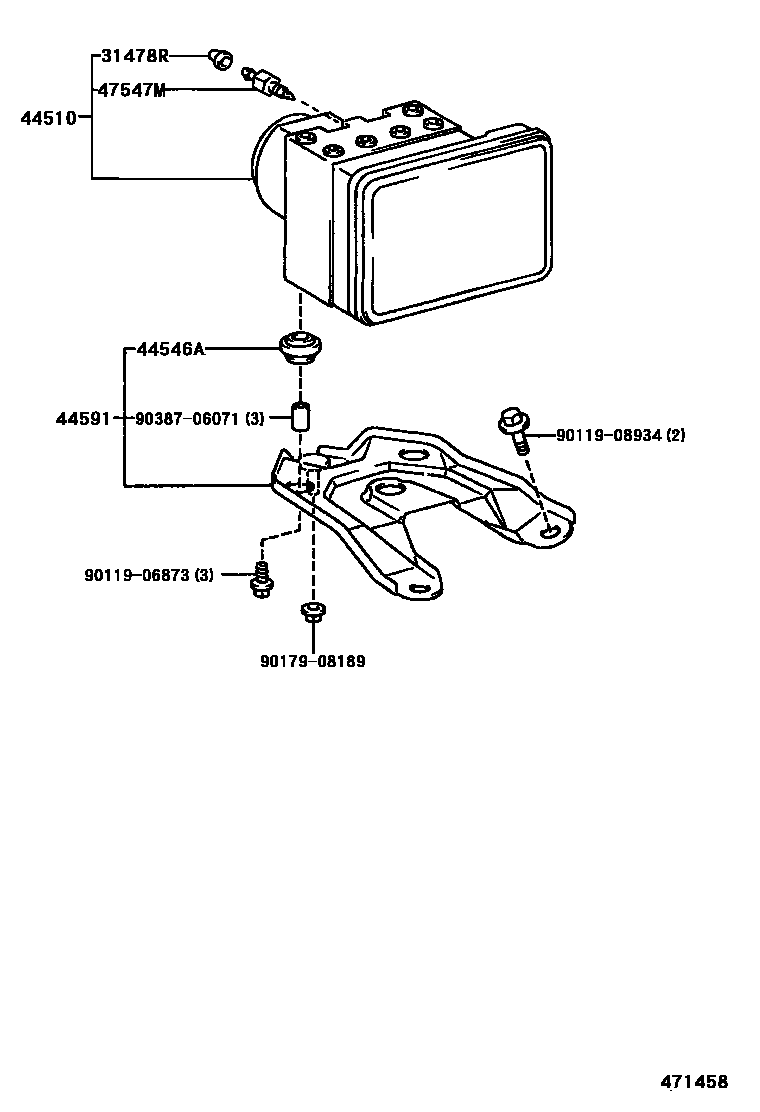

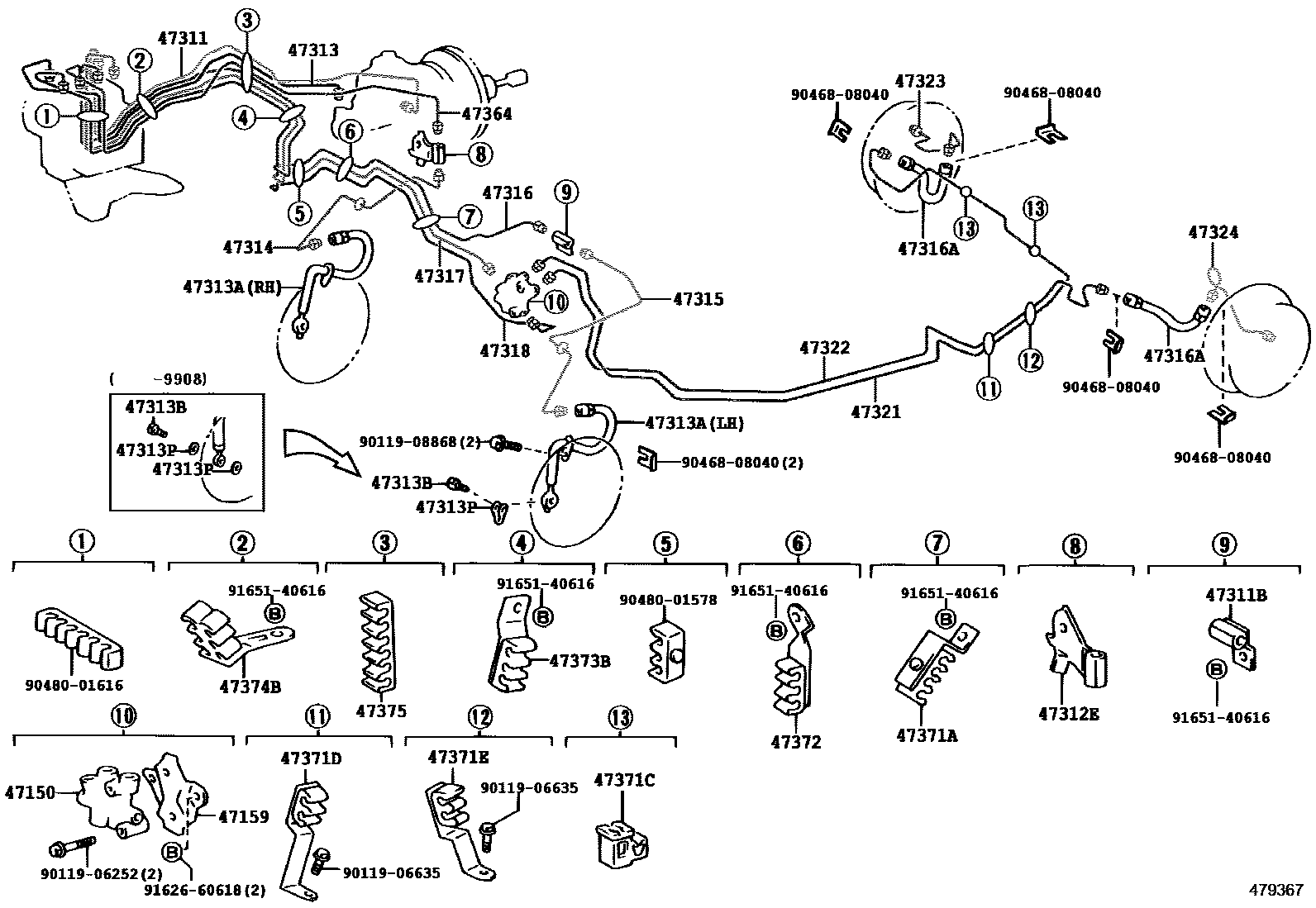

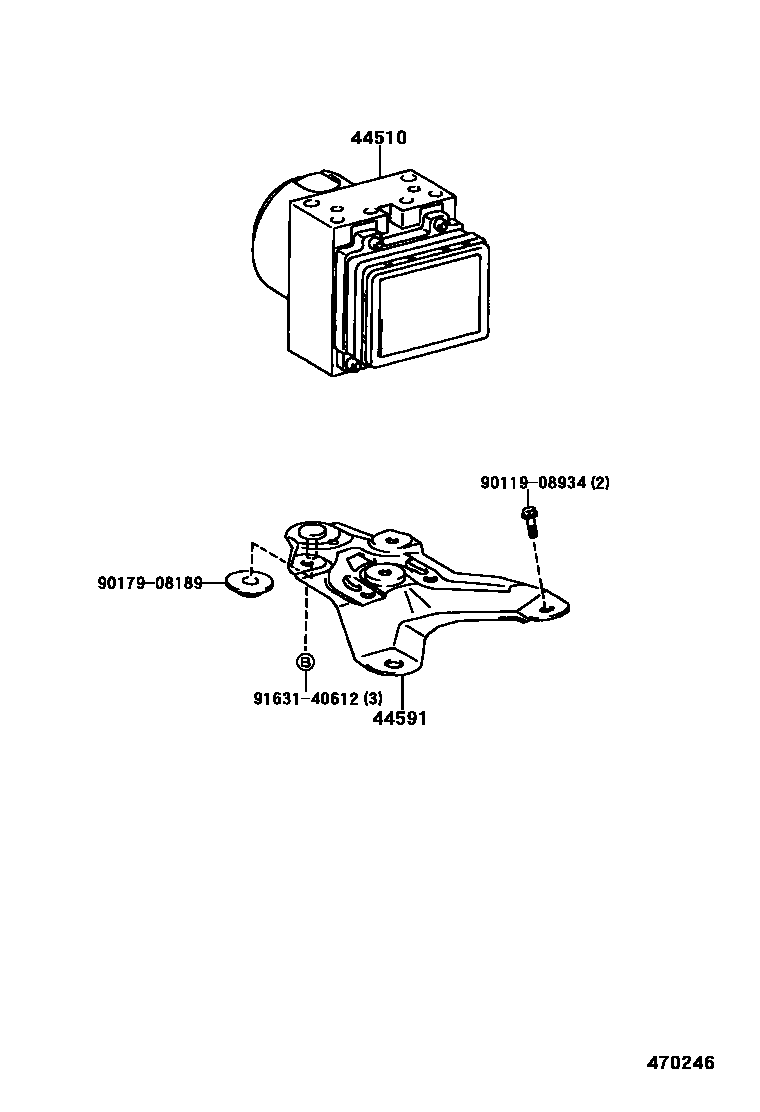

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31478R | Bleed plug cap (for brake actuator) | 31478-30010 |
| 44510 | brake actuator assembly | 44050-13050 · 44050-13060 · 44510-12210 |
| 44546A | Brake actuator bolt cushion | 44546-12100 |
| 44591 | No. 1 brake actuator bracket | 44590-12030 · 44590-12040 · 44591-12050 |
| 47150 | Proportional valve assembly | 47150-12150 · 47150-13020 |
| 47159 | Proportional valve bracket | 47159-12070 |
| 47311 | No. 1 front brake pipe | 47311-12580 · 47311-12620 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10116 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12007 |
| 47313 | No. 3 front brake pipe | 47313-12390 · 47313-12430 |
| 47313A | No. 1 front flexible hose | 90947-02911 · 90947-02912 · 90947-02915 · 90947-02916 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 · 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12290 |
| 47315 | No. 5 front brake pipe | 47315-12450 |
| 47316 | No. 6 front brake pipe | 47316-12270 · 47316-12320 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02921 · 90947-02923 |
| 47317 | No. 7 front brake pipe | 47317-12140 · 47317-12170 |
| 47318 | No. 8 front brake pipe | 47318-12280 · 47318-12310 |
| 47321 | No. 1 rear brake pipe | 47321-12130 · 47321-12140 |
| 47322 | No. 2 rear brake pipe | 47322-12280 · 47322-12290 |
| 47323 | No. 3 rear brake pipe | 47323-12240 · 47323-12250 |
| 47324 | No. 4 rear brake pipe | 47324-12200 · 47324-12210 |
| 47364 | No. 13 front brake pipe | 47364-12110 · 47364-12160 |
| 47371A | No. 1 brake pipe clamp | 47371-12090 |
| 47371C | No. 7 brake pipe clamp | 47371-12150 · 90949-01B45 |
| 47371D | No. 8 brake pipe clamp | 47375-12040 |
| 47371E | No. 9 brake pipe clamp | 47375-12060 |
| 47372 | No. 2 brake pipe clamp | 47372-12060 |
| 47373B | No. 3 brake pipe clamp | 47373-12010 |
| 47374B | No. 4 brake pipe clamp | 47374-12030 |
| 47375 | No. 5 brake pipe clamp | 90949-01856 |
| 47547M | Bleed plug (for brake actuator) | 47547-22020 |
