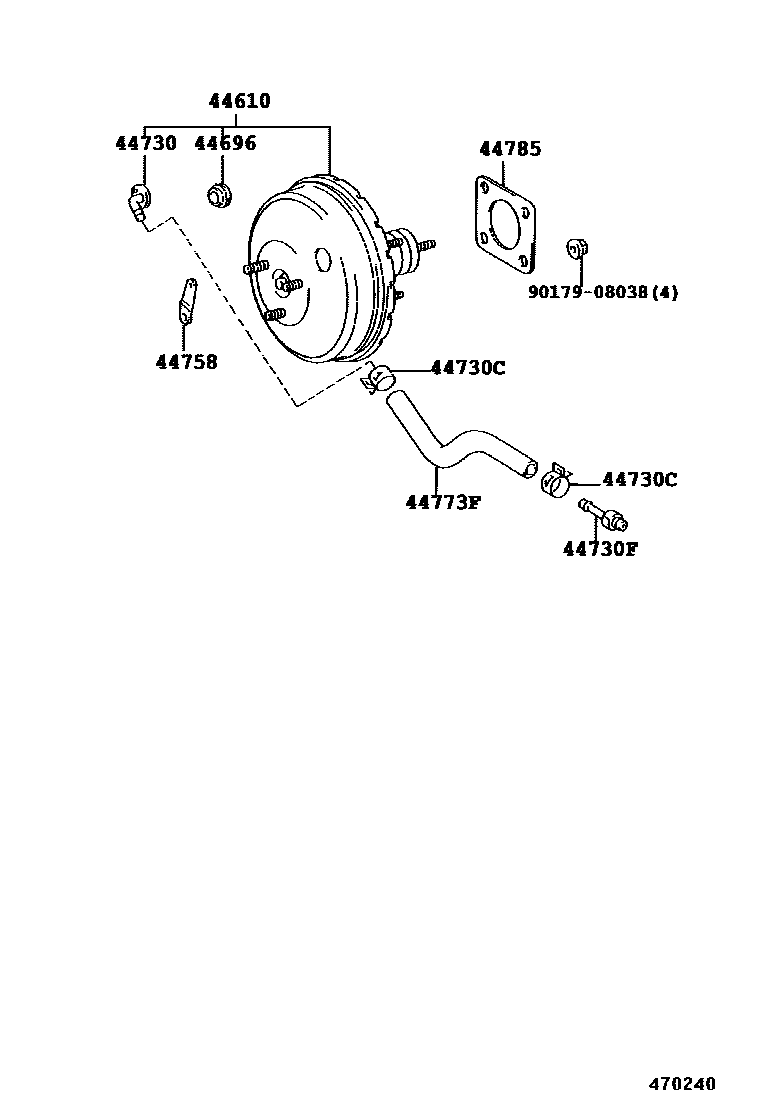

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-13050 |
| 44696 | One-way valve seal | 90480-24517 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12050 |
| 44730C | Clip (for vacuum hose) | 90467-16002 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44758 | Vacuum check valve bracket | 44758-12300 |
| 44773F | Hoses (connector to check valve) | 44773-12600 |
| 44785 | brake booster pad | 44785-20020 |
