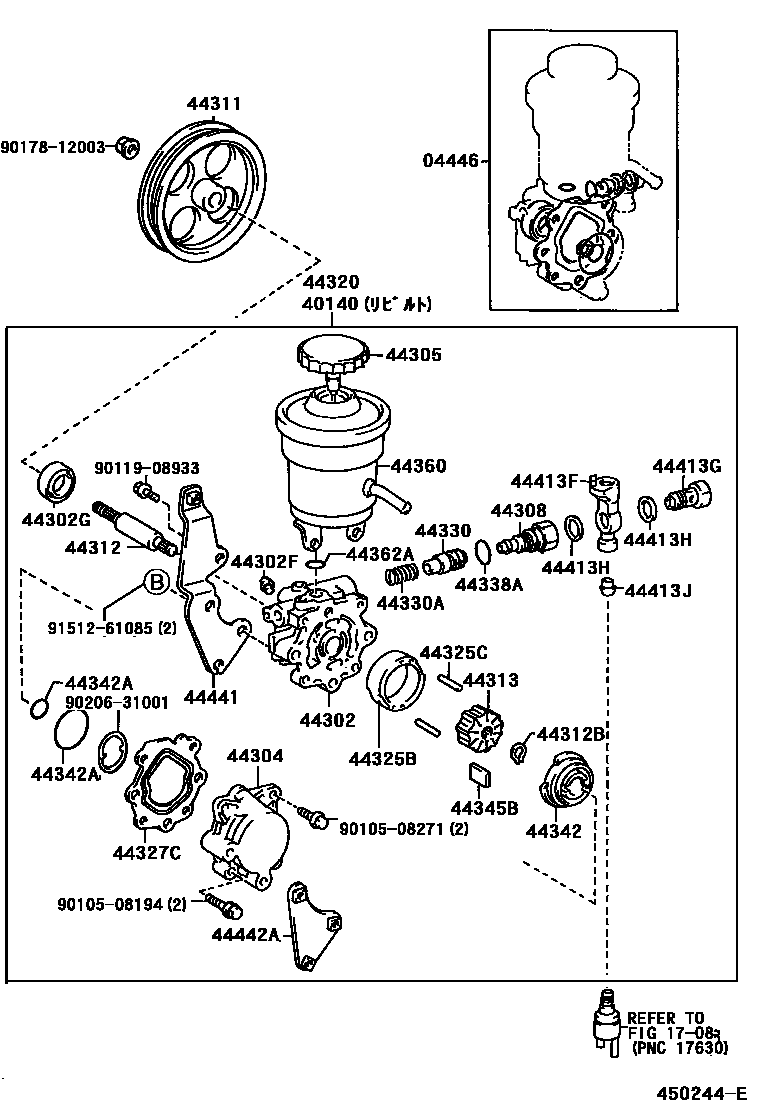

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-32011 |
| 40140 | Refurbished vane pump assembly | 40140-12391 |
| 44302 | Front vane pump housing sub-assembly | 44302-12160 |
| 44302F | Joint seat (for vane pump housing) | 90410-05035 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-18015 |
| 44304 | Vane pump rear housing sub-assembly | 44324-26031 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 |
| 44308 | Pressure hole connector sub-assembly | 44308-12110 · 44308-28010 |
| 44311 | vane pump pulley | 44311-12090 |
| 44312 | vane pump shaft | 44312-32020 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 |
| 44320 | Vane pump assembly | 44320-12390 · 44320-12391 |
| 44325B | vane pump cam ring | 44325-12270 · 44325-12280 · 44325-12290 · 44325-12300 · 44325-12310 |
| 44325C | Direct sales (for vane pump cam rings) | 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-26010 |
| 44330 | Flow control valve assembly | 44330-12570 · 44330-12580 · 44330-12590 · 44330-12600 · 44330-12610 · 44330-12620 |
| 44330A | Compression spring (for flow control valve) | 90501-13034 |
| 44338A | O-ring (for pressure port connector) | 90301-19013 |
| 44342 | Vane pump rear end cover | 44342-26020 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-18007 · 90301-47001 |
| 44345B | vane pump disc | 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 |
| 44360 | Vane pump oil storage tank assembly | 44306-12160 |
| 44362A | O-ring (for vane pump oil storage tank) | 90301-11016 |
| 44413F | No. 2 pressure supply pipe | 44413-12160 |
| 44413G | Joint bolt (for pressure supply pipe No. 2) | 96341-41603 |
| 44413H | Gasket (for pressure supply pipe No. 2) | 90430-16242 |
| 44413J | Connector seat (for No. 2 pressure supply pipe) | 90410-05035 |
| 44441 | Pump front bracket | 44441-12070 |
| 44442A | Vane pump rear bracket | 44442-12020 |
