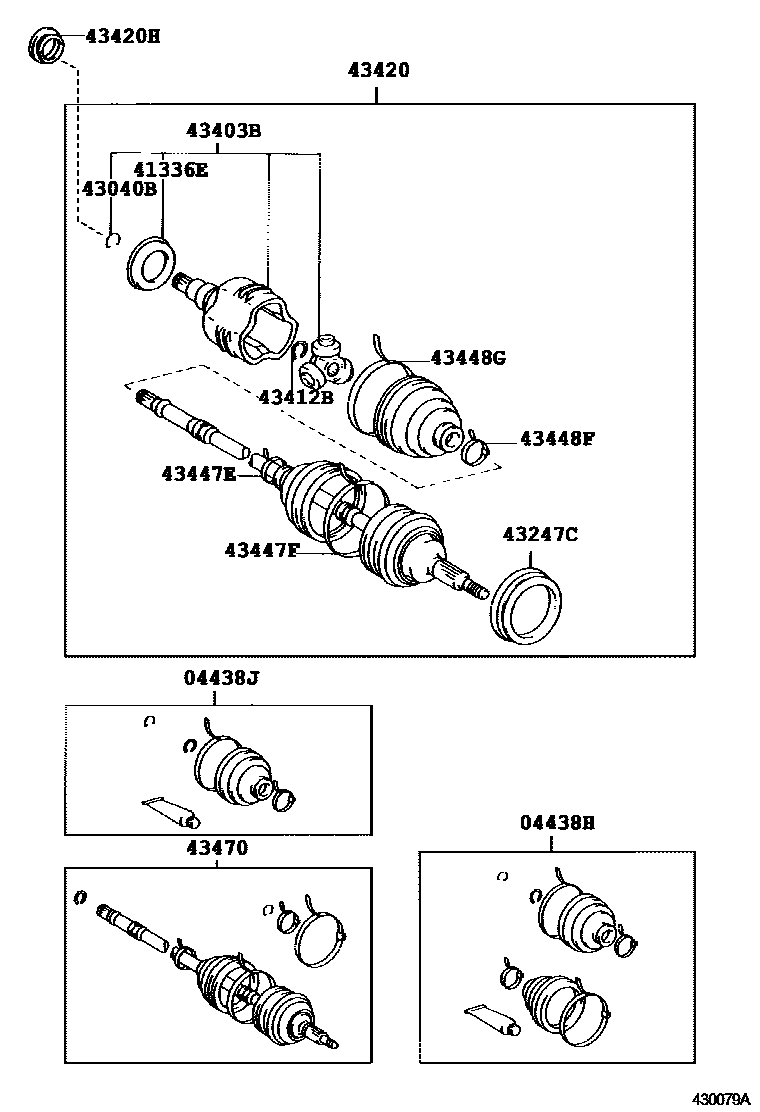

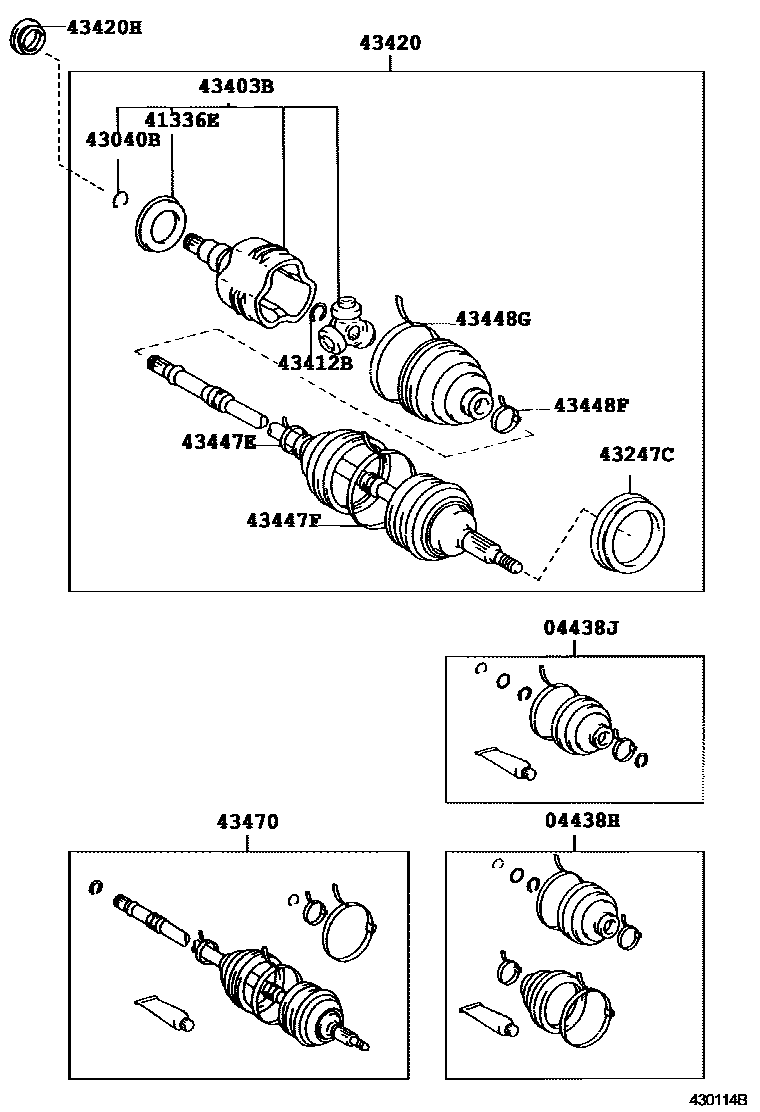

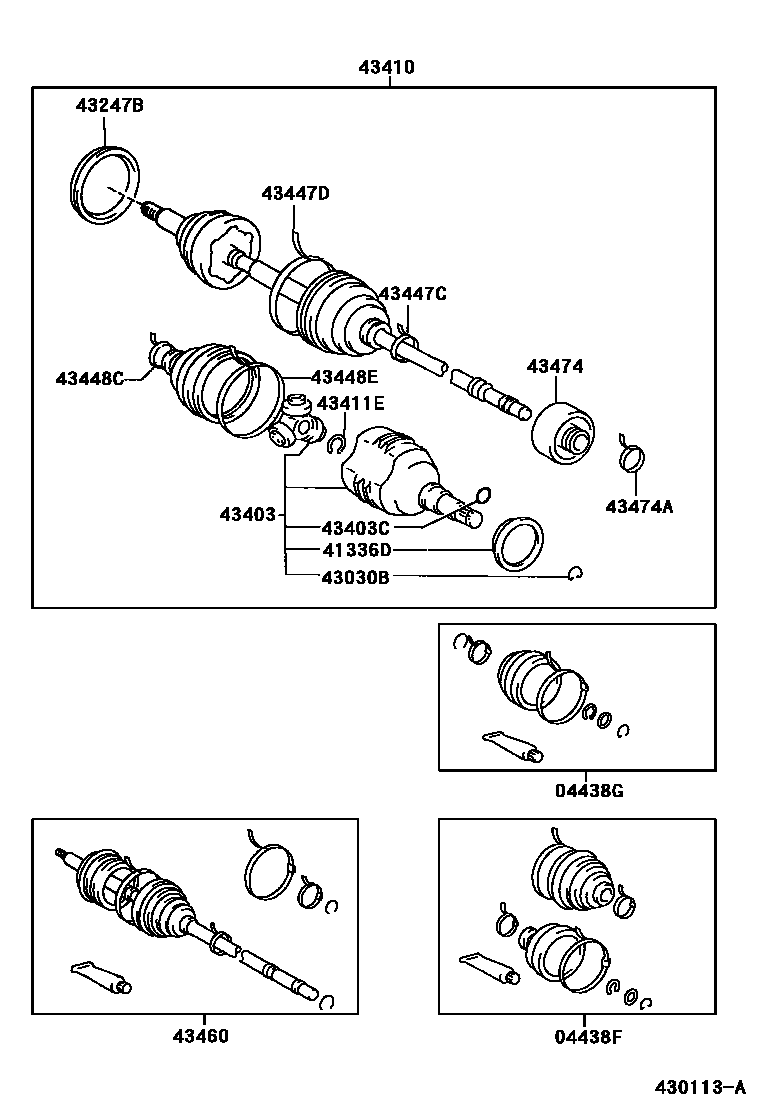

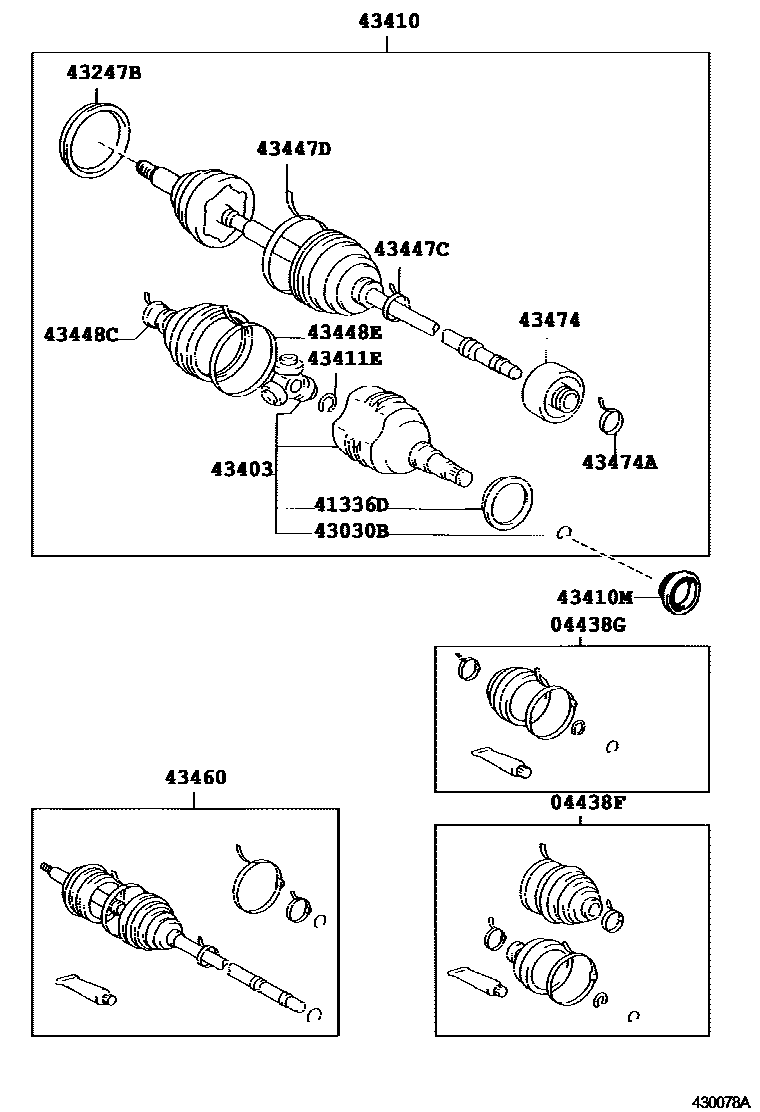

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12172 · 04438-12300 · 04438-12301 · 04438-12302 · 04438-12650 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-12410 · 04438-32230 · 04438-32231 · 04438-52051 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12172 · 04438-12300 · 04438-12301 · 04438-12302 · 04438-12650 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-12410 · 04438-32230 · 04438-32231 · 04438-52051 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-20040 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12040 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 |
| 43403 | Right front axle inner universal joint assembly | 43403-12040 · 43403-12050 |
| 43403B | Left front axle inner universal joint assembly | 43403-12040 · 43403-12060 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43410 | Right front driveshaft assembly | 43410-12410 · 43410-12411 · 43410-12412 · 43410-12413 · 43410-20450 · 43410-20451 |
| 43410M | Toyota part | 90311-34012 · 90311-34023 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-20281 · 43420-20282 · 43420-32161 · 43420-32162 · 43420-32163 · 43420-32164 |
| 43420H | Toyota part | 90311-34013 · 90311-34026 · 90311-44004 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-12150 · 42345-16010 · 42345-16030 · 42345-20090 · 42345-20100 · 90949-01078 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-12140 · 42345-16020 · 42345-16040 · 42345-20110 · 42345-20120 · 90949-01080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-12150 · 42345-16010 · 42345-16030 · 42345-20090 · 42345-20100 · 90949-01078 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-12140 · 42345-16020 · 42345-16040 · 42345-20110 · 42345-20120 · 90949-01080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-16010 · 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-16010 · 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 90949-01076 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-29167 · 43460-29168 · 43470-19306 · 43470-19307 · 43470-19308 · 43470-19309 · 43470-19310 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-19306 · 43470-19307 · 43470-19308 · 43470-19309 · 43470-19310 · 43470-29237 · 43470-29238 |
| 43474 | drive shaft damper | 43474-12030 · 43474-12040 · 43474-20050 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-16030 · 90949-01696 |
