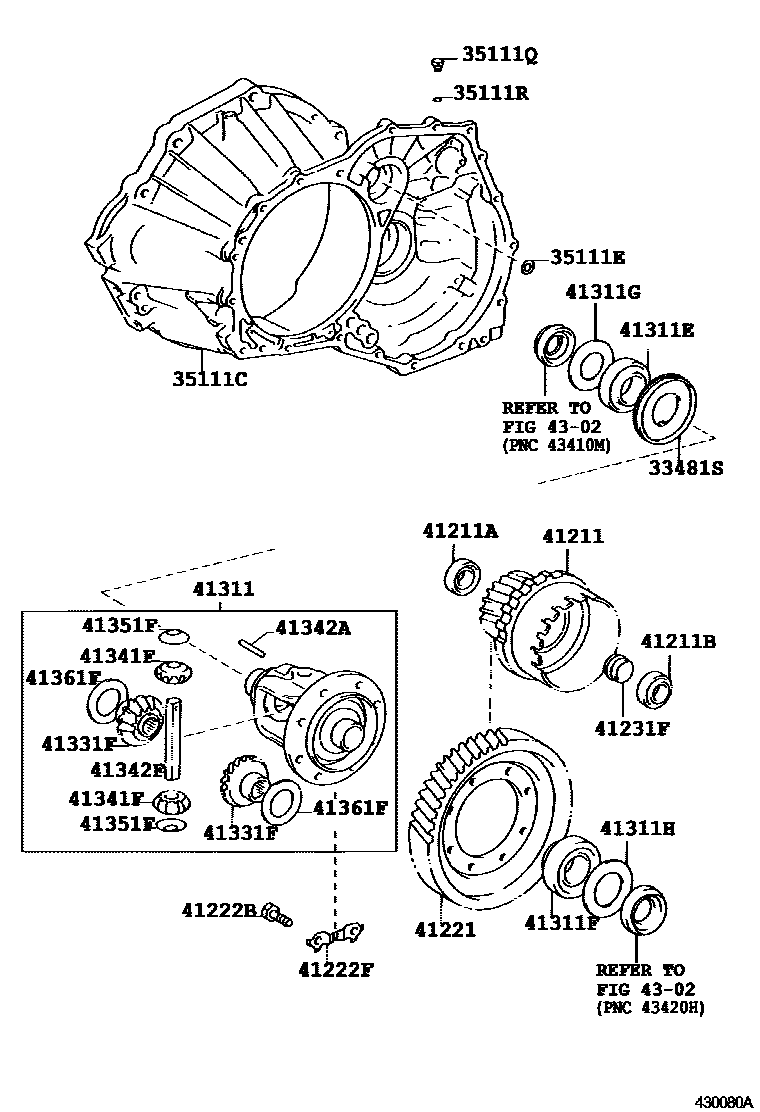

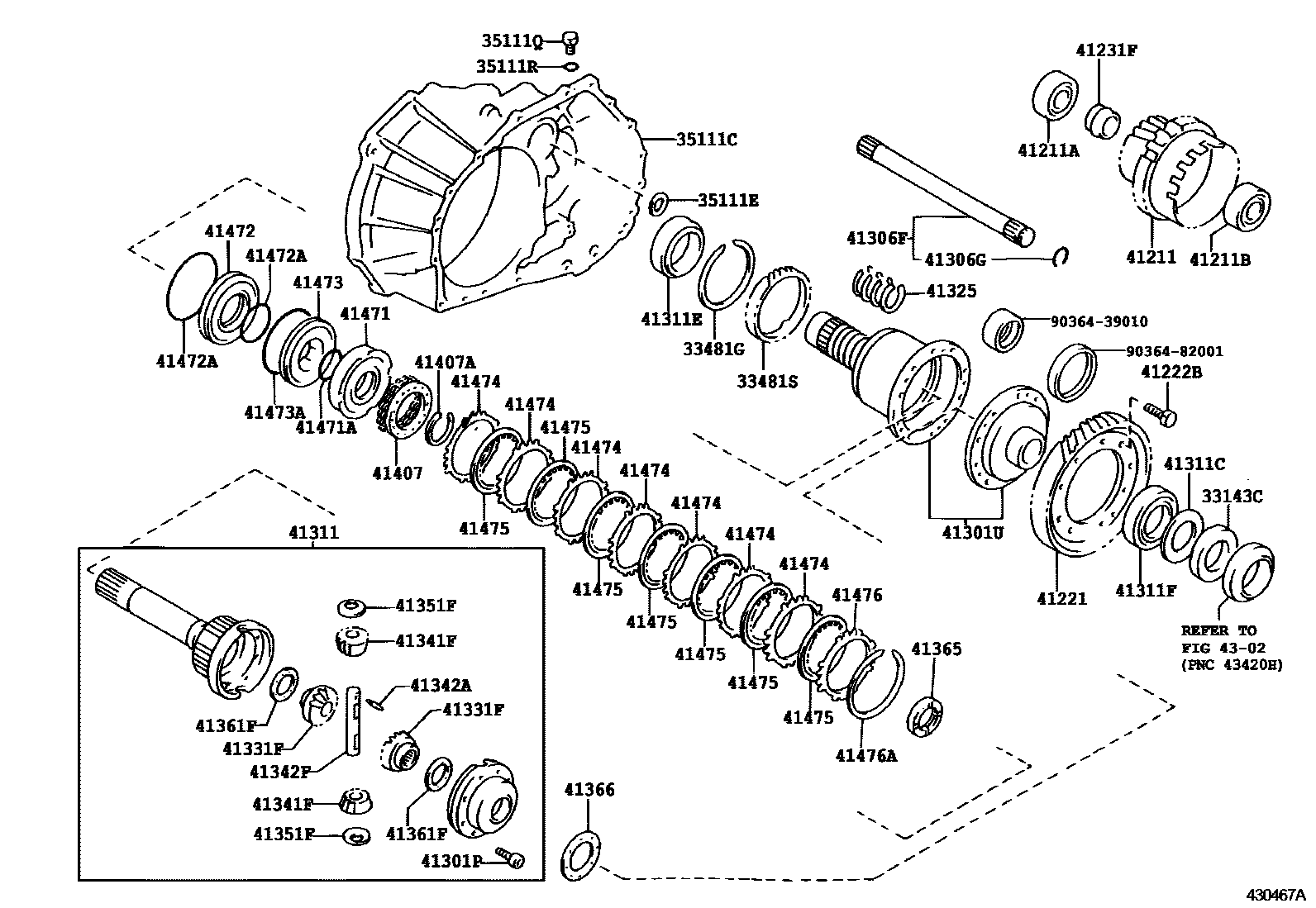

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 2 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33143C | Front differential oil baffle | 33143-12030 |
| 33481G | Shaft snap ring (for ATM speedometer driving gear) | 90520-99005 |
| 33481S | Speedometer driving gear (ATM) | 33481-12040 · 33481-12070 |
| 35111C | Transmission axle housing | 35105-12041 · 35105-12050 |
| 35111E | Gasket (for front transaxle housing) | 90210-13002 |
| 35111Q | No. 2 screw plug (for transmission axle housing) | 90341-08001 |
| 35111R | O-ring (for transmission axle housing plug No. 2) | 90301-06196 |
| 41211 | Differential drive pinion | 41206-20050 · 41206-20070 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30020 · 90366-30054 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30019 · 90366-30053 |
| 41221 | Front differential ring gear | 41221-20230 · 41221-20280 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 · 90105-12150 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-12050 |
| 41231F | Front differential drive pinion bearing spacer | 41231-12030 · 41231-17010 |
| 41301P | Screw (for front differential case) | 90149-80017 |
| 41301U | Front differential ring gear mounting housing sub-assembly | 41301-12200 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-20010 |
| 41306G | Hole snap ring (for differential side gear countershaft) | 90521-26004 |
| 41311 | front differential case | 41301-12120 · 41301-20150 |
| 41311C | Rear gasket (for front differential case) | 90564-77001 · 90564-77004 · 90564-77007 · 90564-77010 · 90564-77011 · 90564-77012 · 90564-77013 · 90564-77014 · 90564-77015 · 90564-77016 · 90564-77017 · 90564-77018 · 90564-77019 · 90564-77020 · 90564-77021 · 90564-77022 · 90564-77023 · 90564-77024 · 90564-77025 · 90564-77026 · 90564-77027 · 90564-77028 · 90564-77029 · 90564-77030 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-67001 · 90368-38010 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-42001 · 90366-55028 |
| 41311G | Front flat washer (for front differential case) | 90201-41024 |
| 41311H | Rear flat washer (for front differential case) | 90201-41024 · 90201-41025 · 90201-41026 · 90201-41027 · 90201-41028 · 90201-41029 · 90201-41030 · 90201-41031 · 90201-41032 · 90201-41033 · 90201-41034 · 90201-41035 · 90201-41036 · 90201-41039 · 90201-41040 · 90201-41041 · 90201-41042 · 90201-41043 · 90201-41044 |
| 41325 | Front differential ring gear mounting housing oil seal ring | 41325-12010 |
| 41331F | Front differential side gear | 41331-12011 · 41331-12030 |
| 41341F | Front differential planetary gear | 41341-12030 · 41341-20011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90249-06093 · 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12060 · 41342-20060 |
| 41351F | Front differential planetary gear thrust washer | 41351-12010 · 41351-12020 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-12330 · 41361-12340 · 41361-12350 · 41361-12360 · 41361-12370 · 41361-12380 · 41361-12390 · 41361-12400 · 41361-12410 · 41361-12420 · 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 |
| 41365 | No. 1 front differential side gear thrust washer | 41365-12010 |
| 41366 | No. 2 front differential side gear thrust washer | 41366-12010 |
| 41407 | Differential lock piston return spring sub-assembly | 41407-12010 |
| 41407A | Shaft snap ring (for differential lock piston return spring) | 90520-43008 |
| 41471 | No. 1 differential lock clutch piston | 41471-12010 |
| 41471A | O-ring (for No. 1 differential lock clutch piston) | 90301-55004 |
| 41472 | No. 2 differential lock clutch piston | 41472-12010 |
| 41472A | O-ring (for No. 2 differential lock clutch piston) | 90301-46002 · 90301-98001 |
| 41473 | Differential lock clutch piston reaction sleeve | 41473-12010 |
| 41473A | O-ring (for piston reaction sleeve) | 90301-92001 |
| 41474 | Differential lock clutch plate | 41474-12010 |
| 41475 | Differential lock clutch disc | 41475-12010 |
| 41476 | Differential lock clutch flange | 41476-12010 |
| 41476A | Hole snap ring (for differential lock clutch flange) | 90521-99057 |
