Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

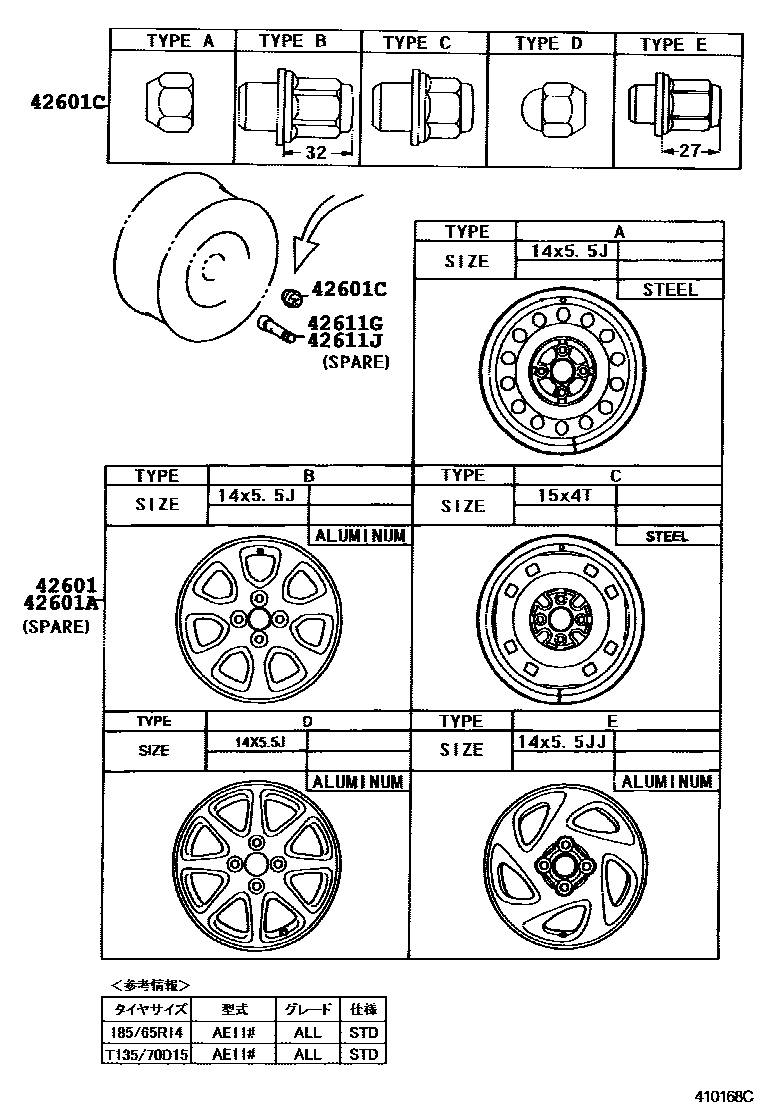

| 42601 | spoke wheel | 42611-02140 · 42611-1A370 · 42611-1A380 |
| 42601A | Spoke wheel (for spare tire) | 42611-1A010 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01058 · 90942-01083 |

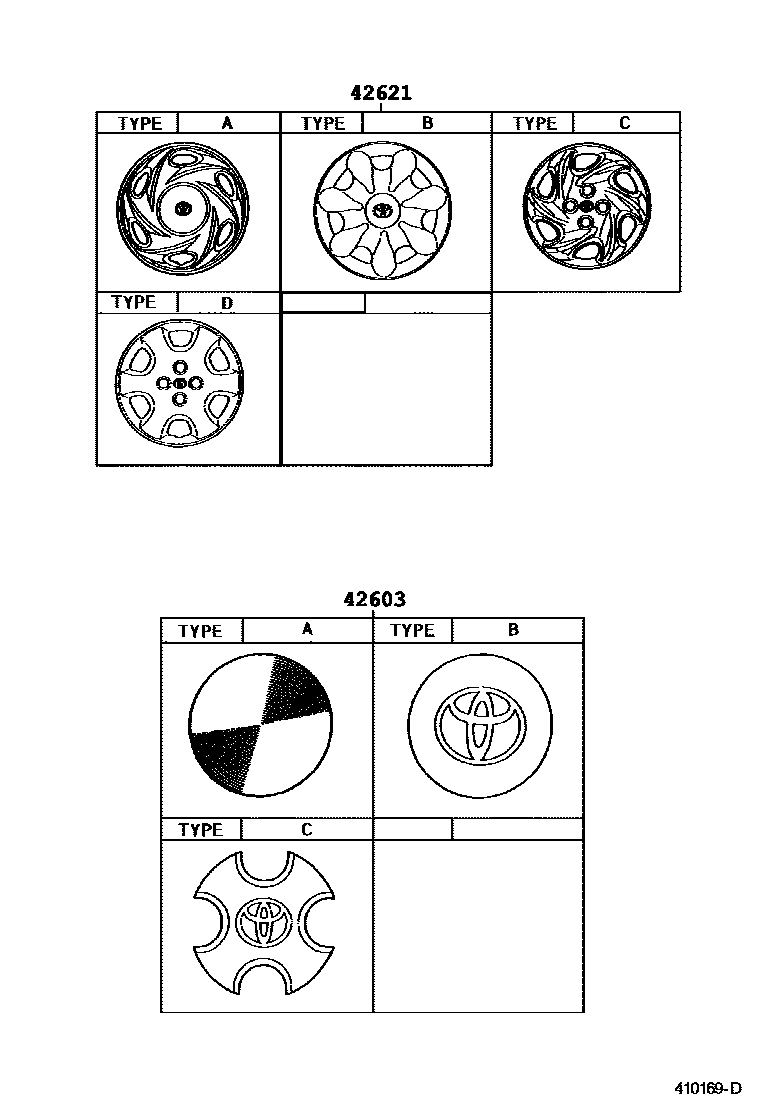

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02070 · 42603-12640 · 42603-12660 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-12490 · 42602-12500 · 42602-12510 · 42602-13020 |
