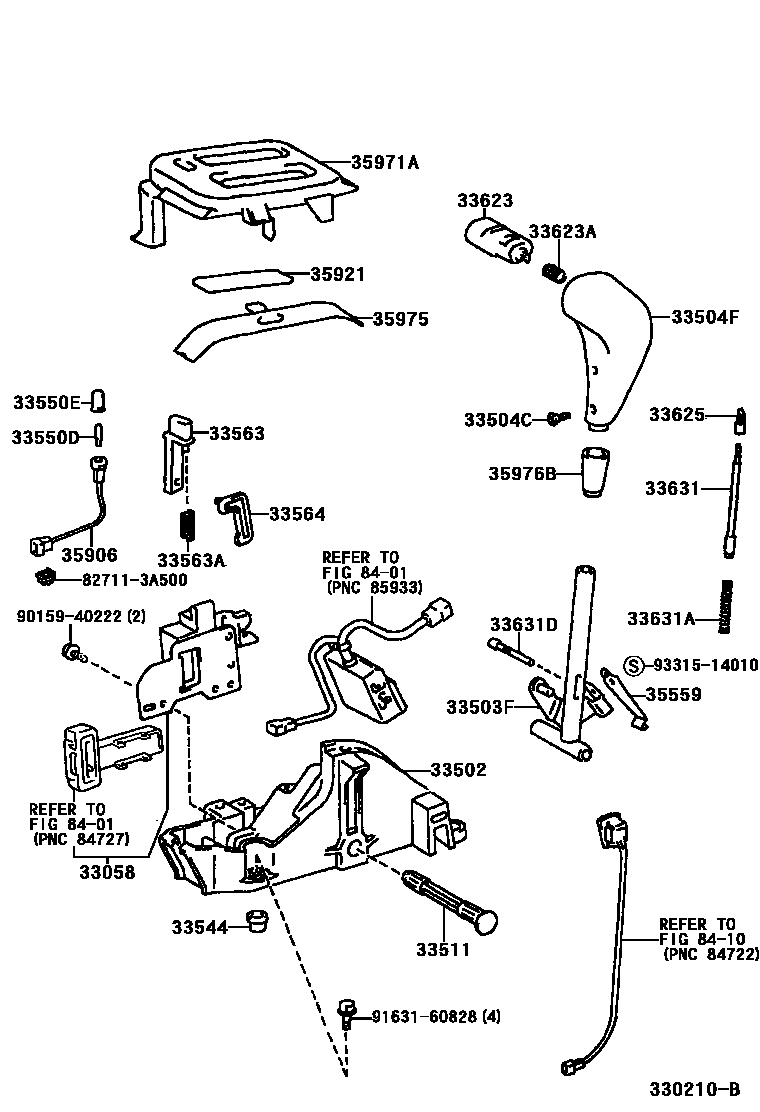

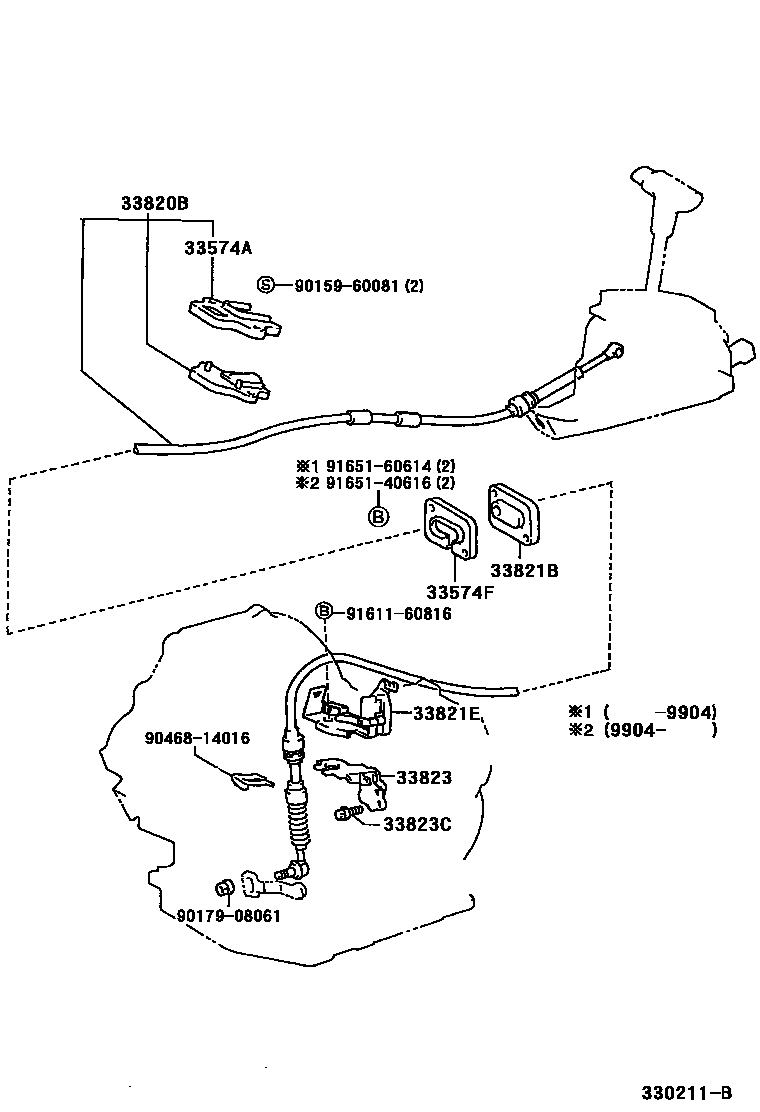

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33058 | Shift lock solenoid valve bracket sub-assembly | 33058-12060 |
| 33502 | Shift lever base plate sub-assembly | 33521-12250 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-12050 · 33055-13010 |
| 33504C | Screw (for securing shift lever knob) | 90159-40238 |
| 33511 | Control shaft (for floor shifting) | 33511-12110 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 90981-11036 |
| 33550E | position indicator cover | 90339-09001 |
| 33563 | Shift lock release button | 33563-12070 |
| 33563A | Compression spring (for shift lock release button) | 90501-05041 |
| 33564 | No. 1 shift lock release link | 33564-12070 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12040 |
| 33574F | Dust seal retainer (for floor shift) | 33574-12080 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07110 |
| 33625 | Shift lever handle sleeve | 33625-12030 |
| 33631 | Locking lever | 33631-13010 · 33631-33020 |
| 33631A | Compression spring (for locking lever) | 90501-07117 |
| 33631D | Grooved pin (for locking lever) | 90245-04009 |
| 33820B | Transmission control cable assembly | 33820-12690 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01672 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90929-01353 |
| 33823 | No. 1 transmission control cable bracket | 33823-12150 · 33823-12170 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-61022 · 91612-61022 |
| 35559 | Manual locking spring | 35559-12040 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12140 · 35906-13010 |
| 35921 | control position indicator board | 35921-12400 |
