Toyota COROLLA Exhaust Pipe — Figure 1702

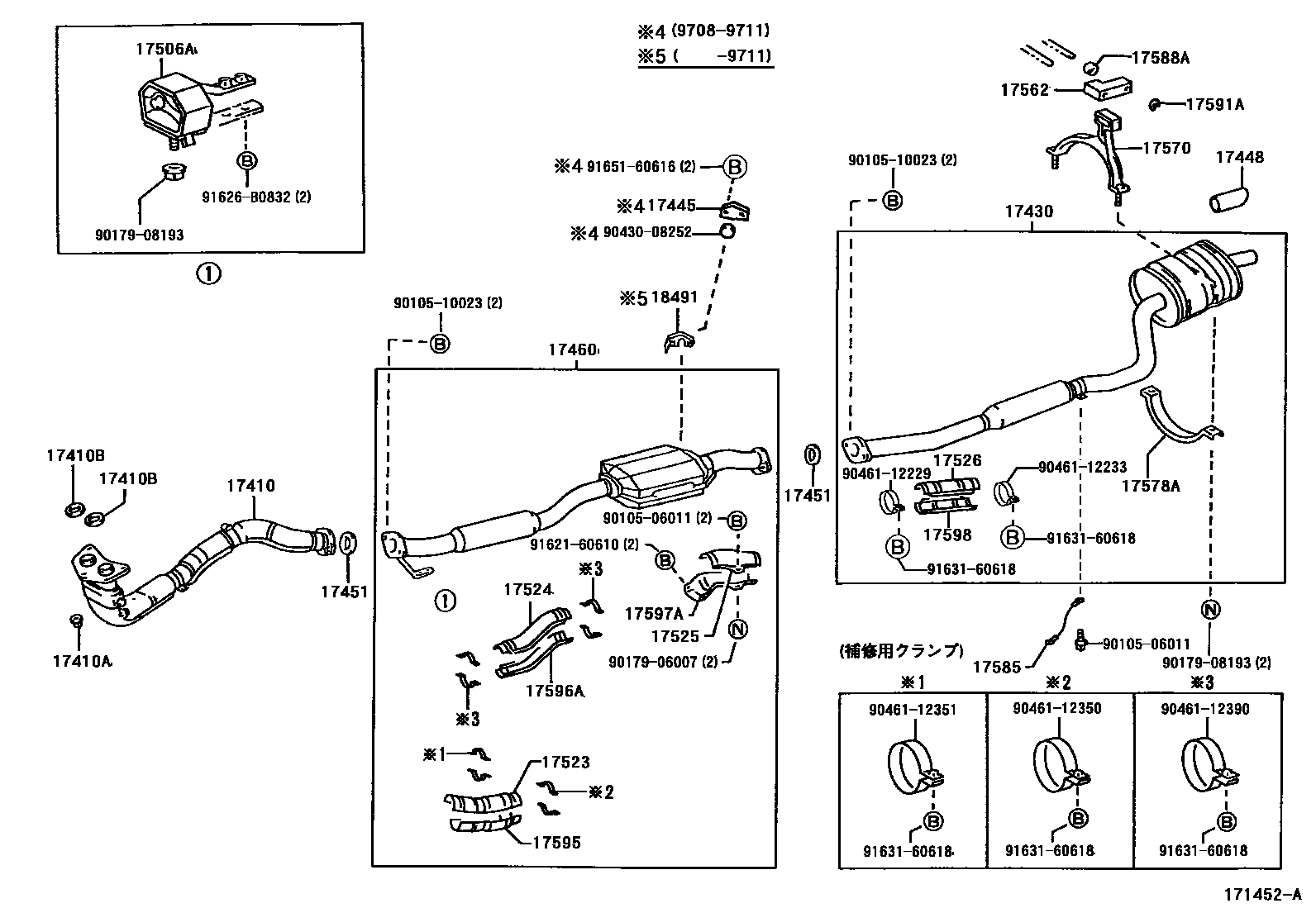

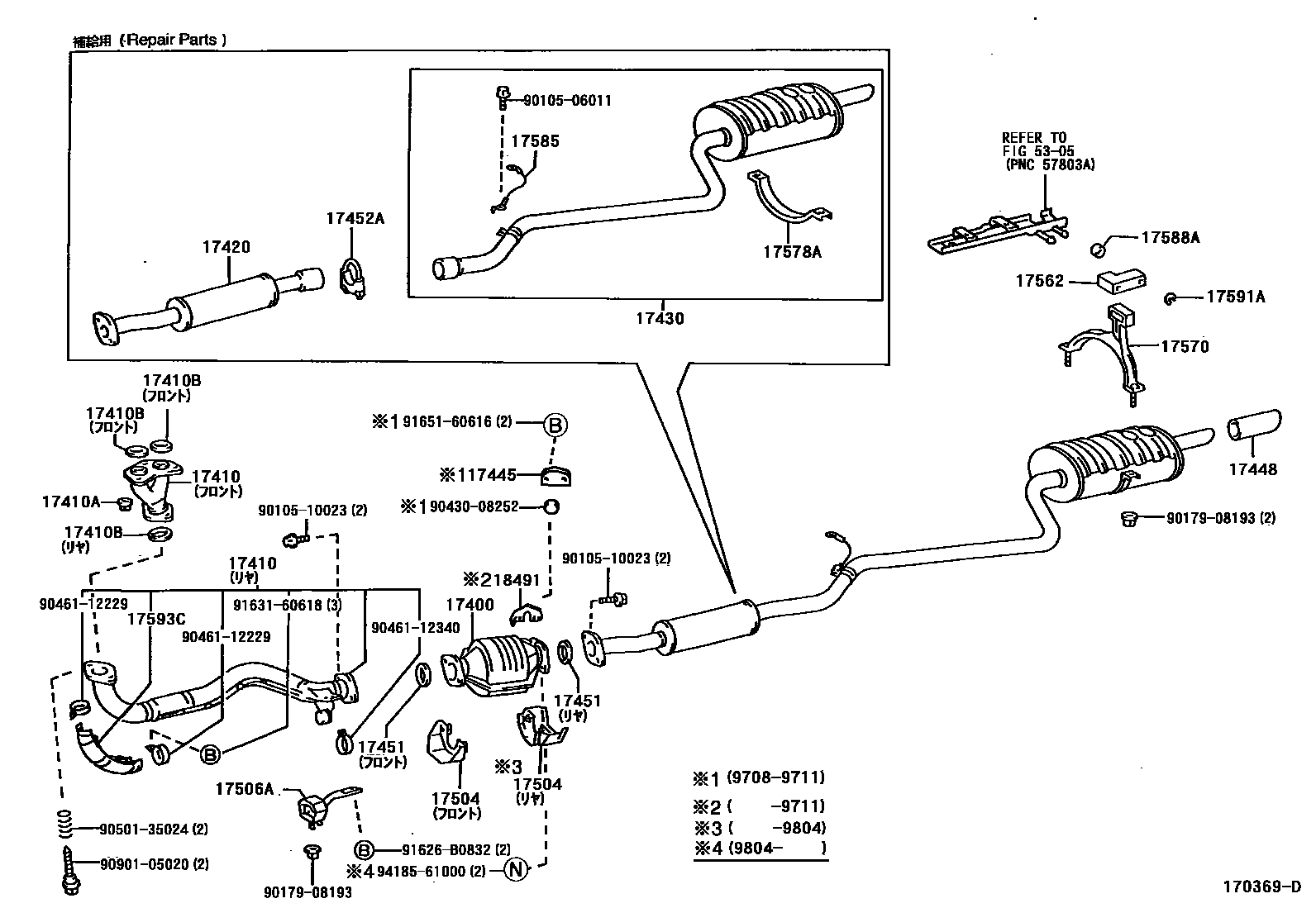

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16780 · 18450-1A030 |
| 17410 | Front exhaust pipe assembly | 17410-1A220 · 17410-1A250 · 17410-1A330 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 17451-16030 · 90917-06061 · 90917-06064 |
| 17420 | Central exhaust pipe assembly | 17420-16640 · 17420-16641 |
| 17430 | Exhaust tailpipe assembly | 17430-1A840 · 17430-1A841 · 17430-1D080 · 17430-1D081 · 17430-1D270 · 17430-1D290 |
| 17445 | Exhaust pipe collar | 17445-50010 |
| 17448 | Exhaust pipe tail throat | 17448-16060 |
| 17451 | Exhaust pipe gasket | 90917-06039 · 90917-06043 · 90917-06057 |
| 17452A | Exhaust pipe clamp | 17452-16120 |
| 17460 | Three-way catalytic converter assembly with tube | 17460-16230 · 17460-16240 |
| 17504 | Three-way catalytic converter bracket sub-assembly | 17504-16030 · 17504-16040 |
| 17506A | No. 1 exhaust pipe bracket sub-assembly | 17506-11100 · 17506-15080 · 17506-16100 |
| 17523 | No. 3 upper exhaust pipe protection device | 17523-16220 |
| 17524 | No. 4 upper exhaust pipe protection device | 17524-16060 |
| 17525 | No. 5 upper exhaust pipe protection device | 17525-16020 |
| 17526 | No. 6 upper exhaust pipe protection device | 17526-16050 |
| 17562 | No. 2 exhaust pipe lifting lug | 17562-16240 |
| 17570 | Exhaust pipe bracket assembly | 17570-16040 |
| 17578A | muffler clip | 17578-16030 · 17578-16050 |
| 17585 | Exhaust pipe hanger | 17585-16060 · 17585-16100 |
| 17588A | Exhaust pipe hanger spacer | 17588-16020 |
| 17591A | Exhaust pipe bracket block | 17591-16020 |
| 17593C | No. 1 lower exhaust pipe protection device | 17593-16360 |
| 17595 | No. 3 lower exhaust pipe protection device | 17595-16380 |
| 17596A | No. 4 lower exhaust pipe protection device | 17596-16170 |
| 17597A | No. 5 lower exhaust pipe protection device | 17597-16060 |
| 17598 | No. 6 lower exhaust pipe protection device | 17598-16040 |
| 18491 | Thermal sensor air inlet flange | 18491-16010 · 18491-16020 |
