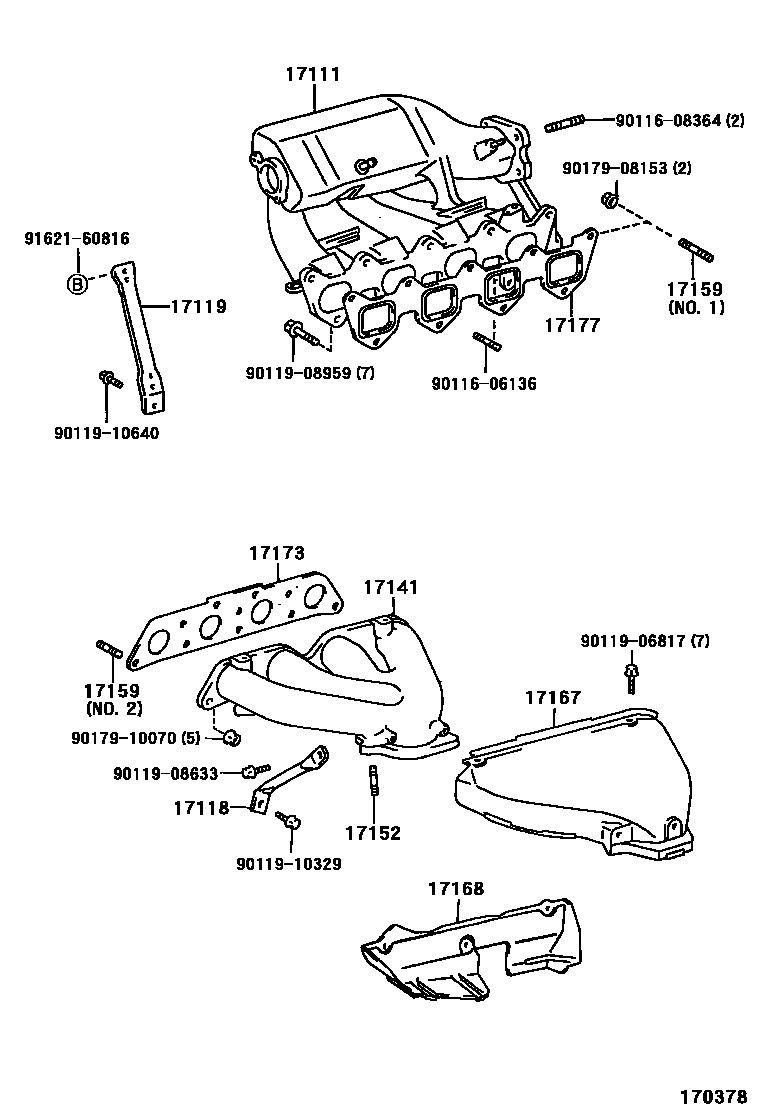

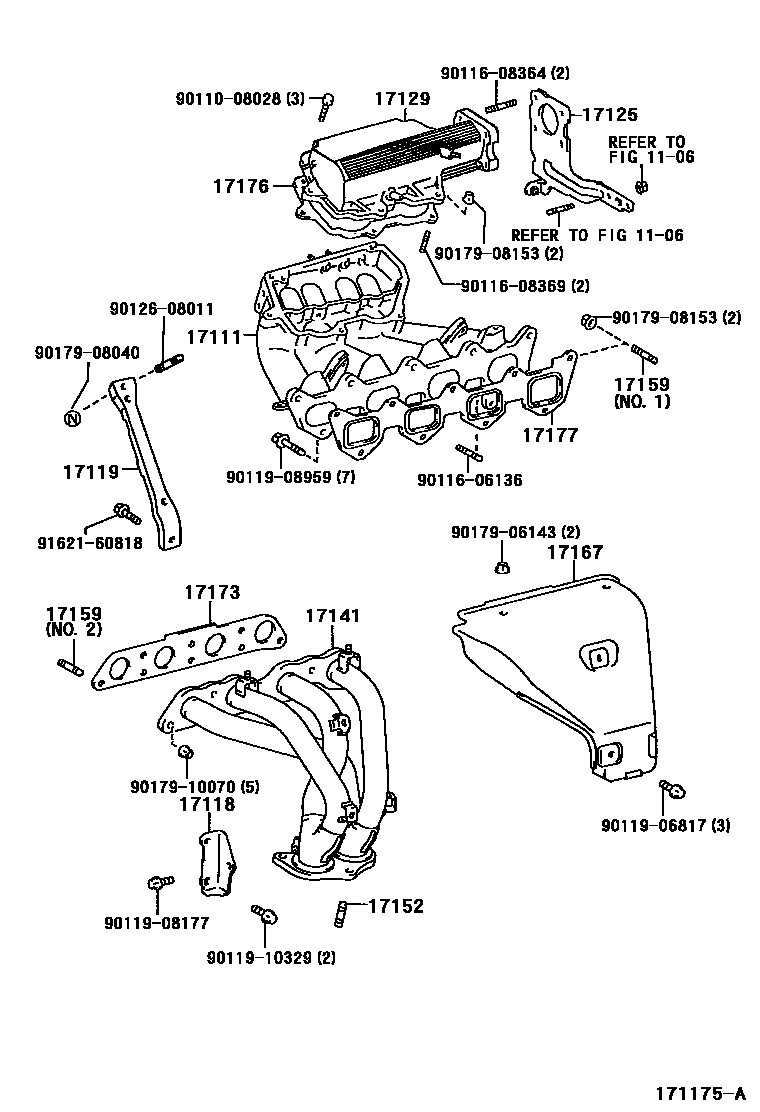

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-16190 · 17101-16280 |
| 17118 | Manifold stays | 17118-16050 · 17118-16100 |
| 17119 | No. 2 manifold stay | 17139-15050 · 17139-16140 |
| 17125 | No. 1 pressure tank stay | 17125-16080 |
| 17129 | Intake pressure tank | 17109-15010 |
| 17141 | exhaust manifold | 17141-16300 · 17141-16320 |
| 17152 | Studs (for manifold to exhaust) | 90116-10146 |
| 17159 | Studs (for manifold to cylinder head) | 92112-60825 · 92112-61028 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-16150 · 17167-16171 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-16100 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-15040 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-15010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15030 |
