Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.

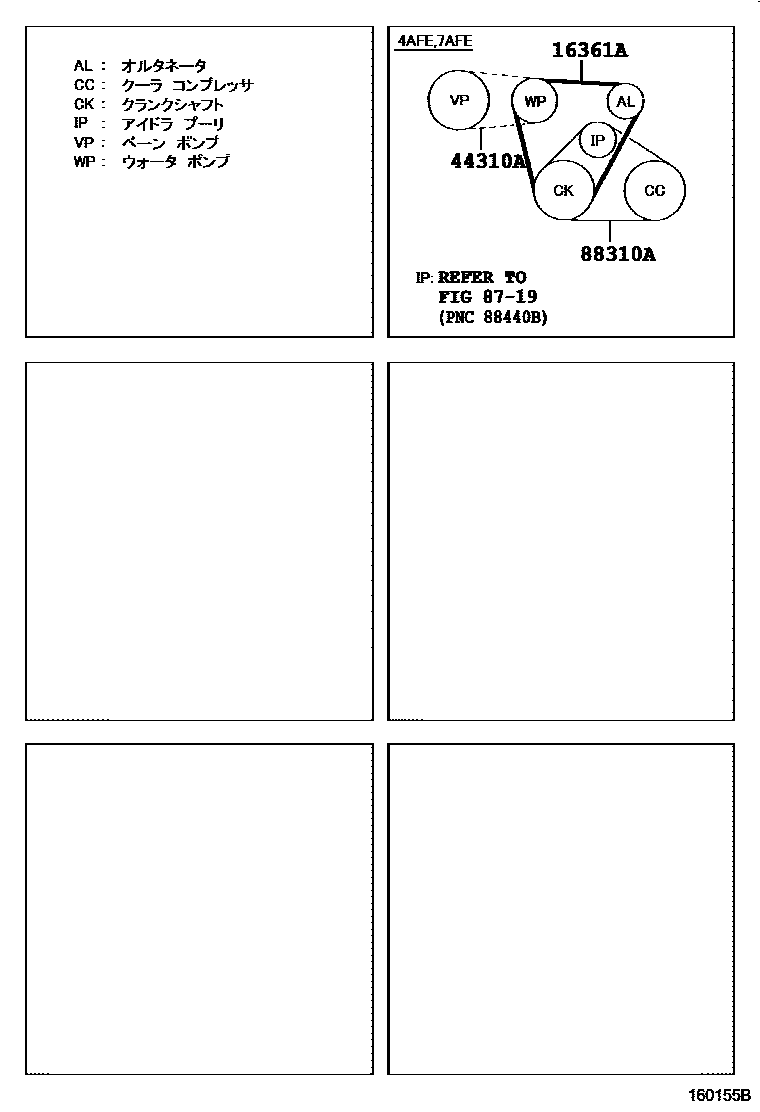

Toyota COROLLA V-Belt EPC diagram — 160155B
V-Belt — 160155B (199701 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91055 · 99365-20970
44310AV-belt (for vane pump)90080-91051 · 99363-90630
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)99364-20850
