Toyota COROLLA Engine Mounting — Figure 1107

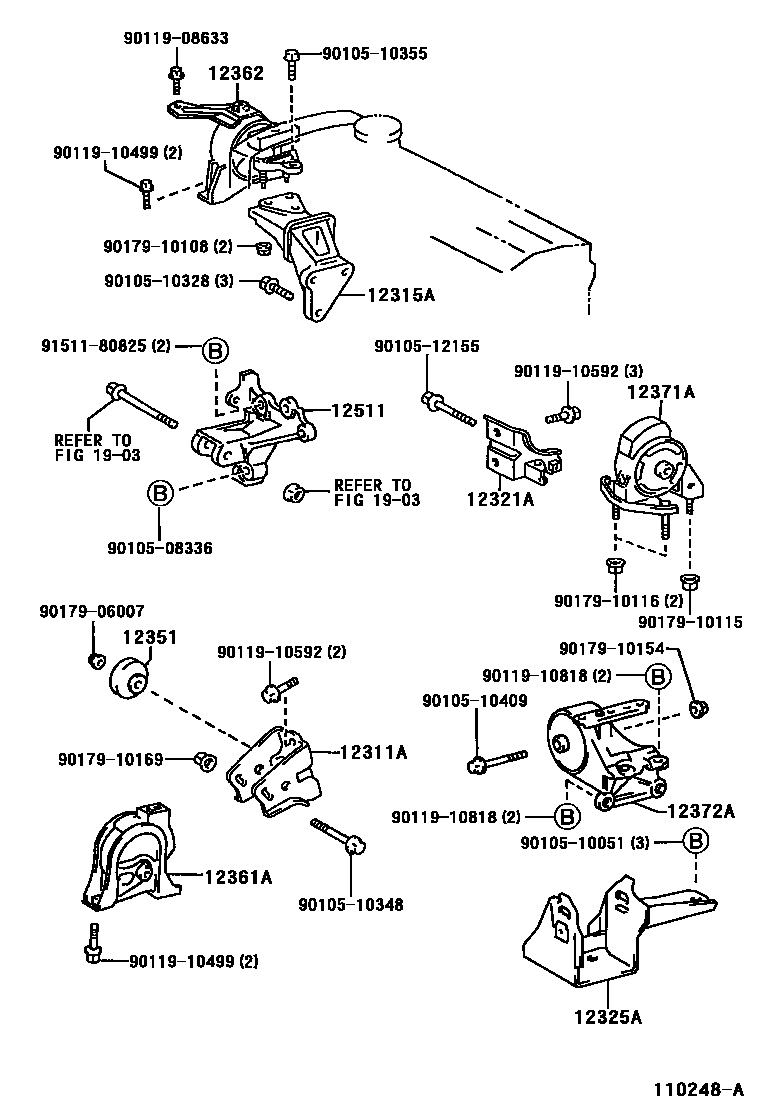

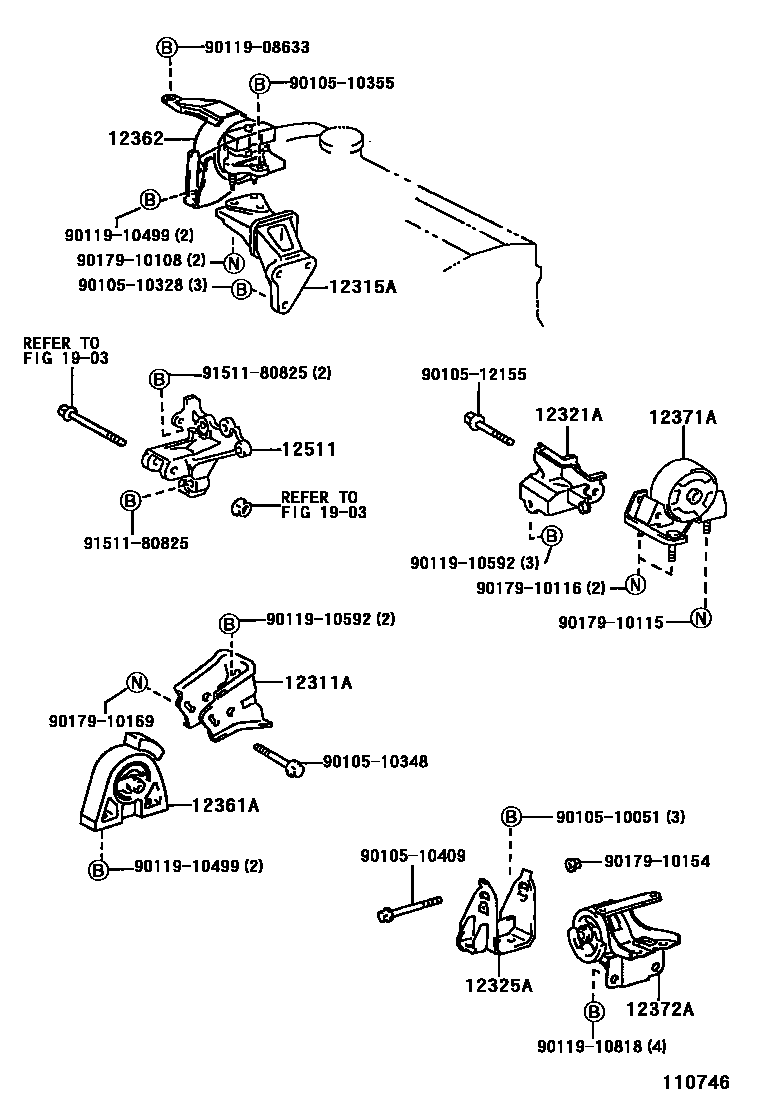

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-15130 · 12311-16110 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-15070 · 12315-15081 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-15140 · 12321-16250 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-15100 · 12325-16250 |
| 12351 | engine mount shock absorber | 12351-15060 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-15180 · 12361-15181 · 12361-16270 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12305-15040 · 12305-16110 |
| 12371A | Engine rear mount vibration isolation pad | 12371-16250 · 12371-64210 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-15220 · 12372-15230 |
| 12511 | No. 1 generator bracket | 12511-15060 · 12511-16110 |
