Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 12 PNC and OE references.

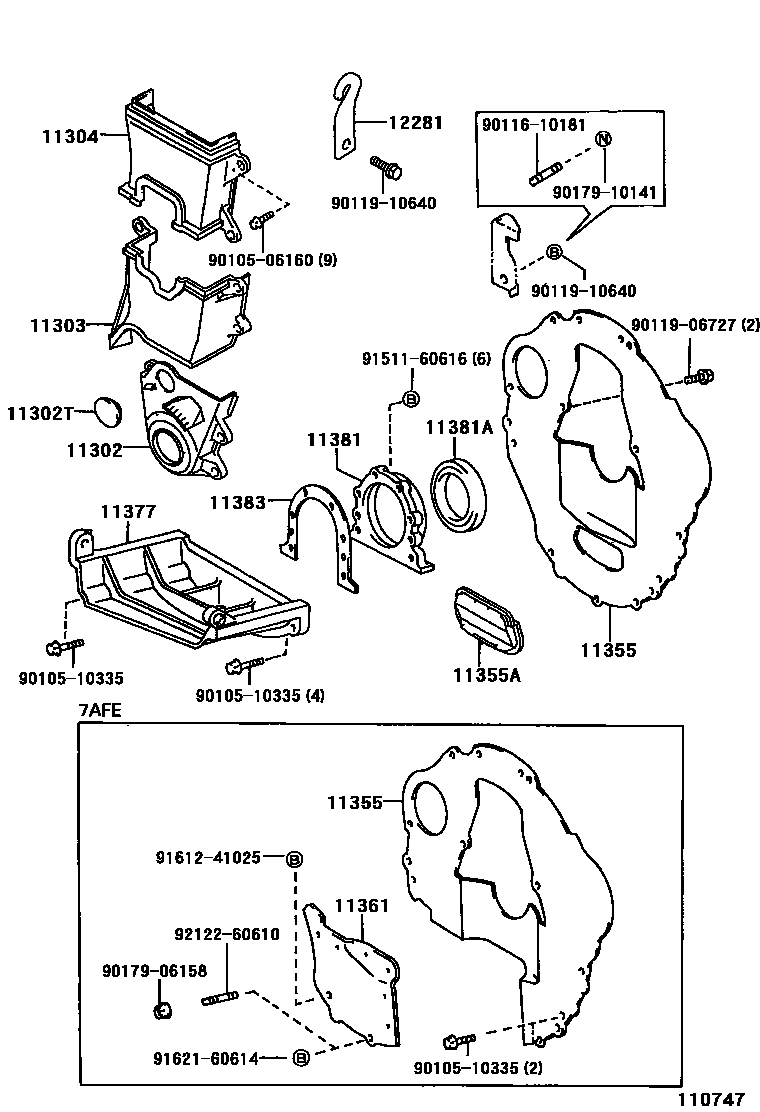

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110747
Timing Gear Cover & Rear End Plate — 110747 (199701 – 999999)

PNC and OE references

PNCPart nameOE numbers
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-15050 · 11302-16040
11302Thole plug90950-01783
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-15050 · 11303-16050 · 11303-16070
11304No. 2 timing chain or timing belt cover11304-15030 · 11304-16060
11355rear end plate11355-15080 · 11355-16060
11355AHole plug (for rear end plate)90950-01264
11361Flywheel housing bottom cover11361-16050
11377Rear end plate reinforcement11377-15012
11381RETAINER, ENGINE REAR OIL SEAL11381-15010
11381ASEAL, ENGINE REAR OIL90311-70007
11383Engine rear oil seal seat gasket11383-16010
12281Engine No. 1 hanger12281-15050
