Toyota COROLLA Cylinder Head — Figure 1104

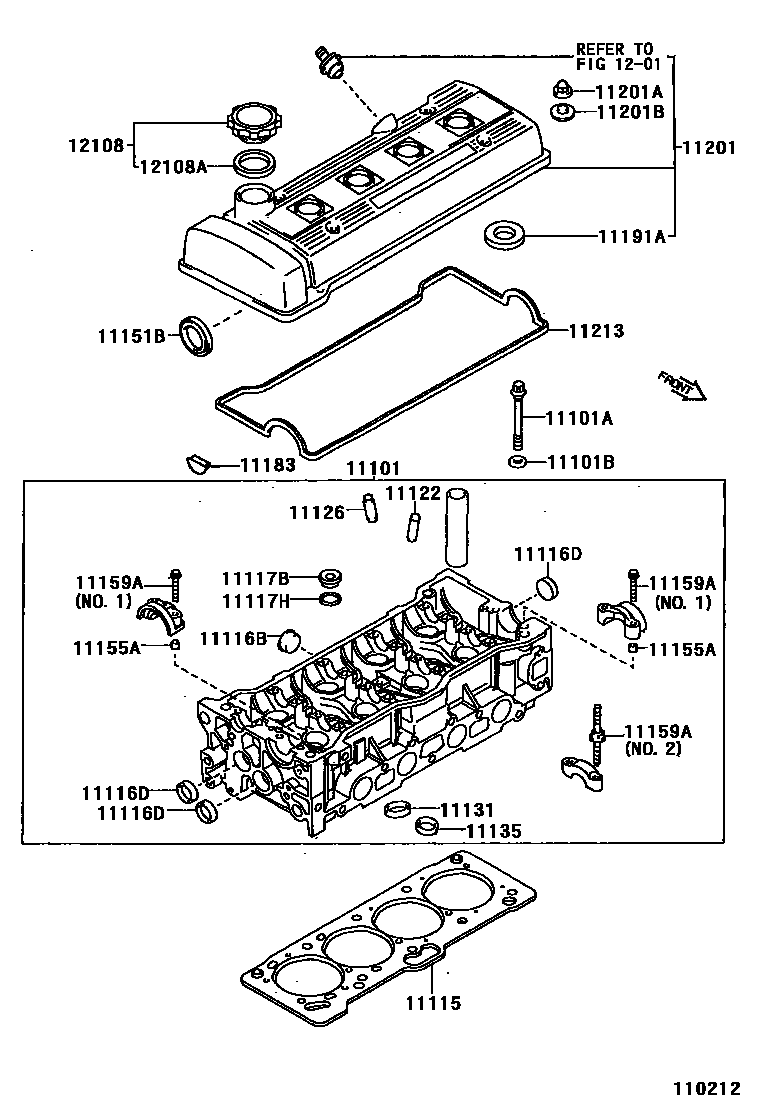

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 1 images and 23 PNC and OE references.

Toyota COROLLA Cylinder Head EPC diagram — 110212
Cylinder Head — 110212 (199701 – 999999)

PNC and OE references

PNCPart nameOE numbers
11101CYLINDER HEAD SUB-ASSY11101-19485 · 11101-19515
11101ABOLT (FOR CYLINDER HEAD)90109-10058 · 90109-10059 · 90910-02120 · 90910-02121
11101BFlat Washer (for cylinder head assembly)90201-10344
11115GASKET, CYLINDER HEAD11115-16121 · 11115-16150
11116BNo. 2 sealing plug96411-42500
11116DNo. 4 sealing plug96411-42800
11117BNo. 2 headed tapered thread plug90341-20002
11117HGasket (for coolant hole)90430-20004
11122BUSH, INTAKE VALVE GUIDE11122-15030 · 11123-15030
11126BUSH, EXHAUST VALVE GUIDE11122-15030 · 11123-15030
11131intake valve seat11131-16040 · 11132-16040
11135Exhaust valve seat11135-16040 · 11136-16040
11151BOIL SEAL (FOR CAMSHAFT SETTING)90311-35013 · 90311-35022
11155APIN, RING W/HEAD90253-09001
11159ABOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP)90109-06080 · 90109-06222
11183PLUG, SEMICIRCULAR11183-15020
11191AGasket (for spark plug bushing)11193-15010
11201CYLINDER HEAD COVER SUB-ASSY11210-15071
11201ACap nut (for cylinder head cover)90176-06028
11201BGasket (for cylinder head cover)90210-06010 · 90210-06013
11213GASKET, CYLINDER HEAD COVER11213-15070 · 11213-15071
12108OIL FILLER CAP SUB-ASSY12180-55010
12108AGASKET (FOR OIL FILLER CAP)90430-37140
