Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

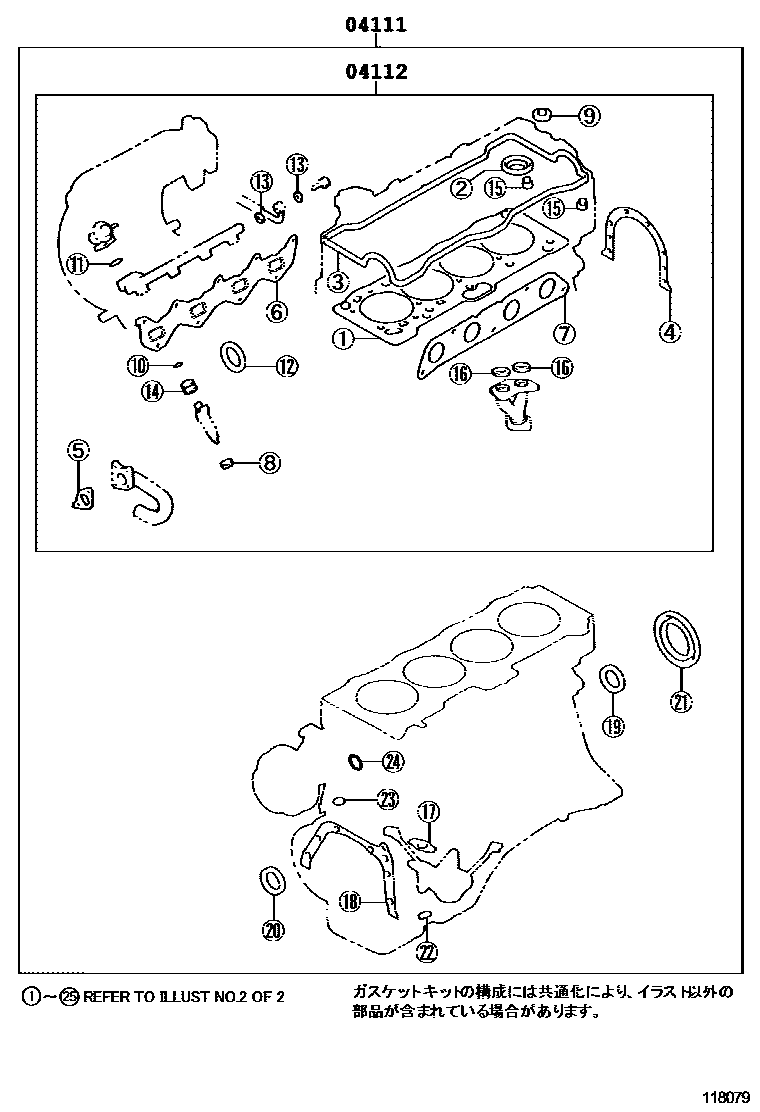

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118079
Engine Overhaul Gasket Kit — 118079 (199701 – 199904)

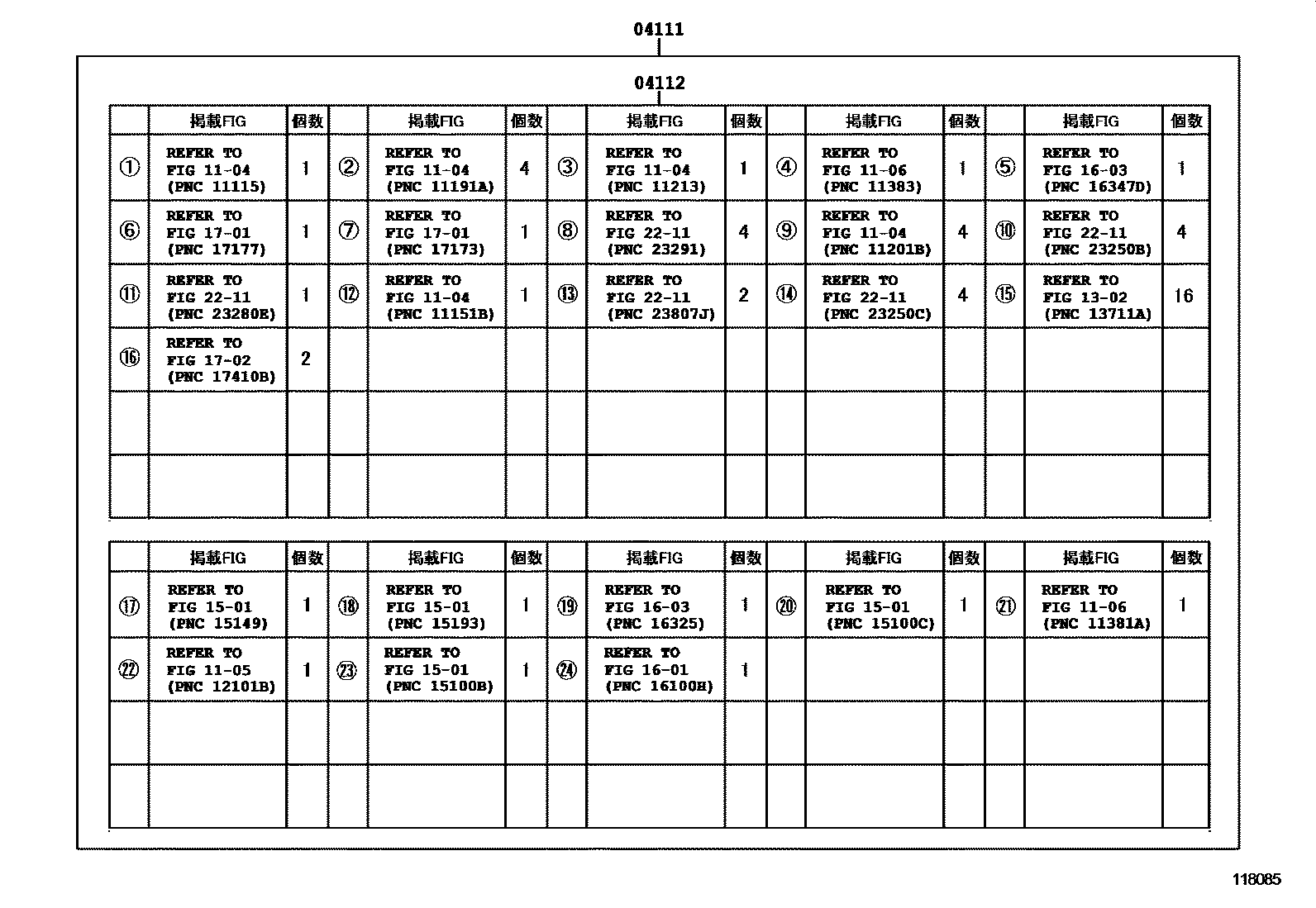

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118085
Engine Overhaul Gasket Kit — 118085 (199701 – 199904)

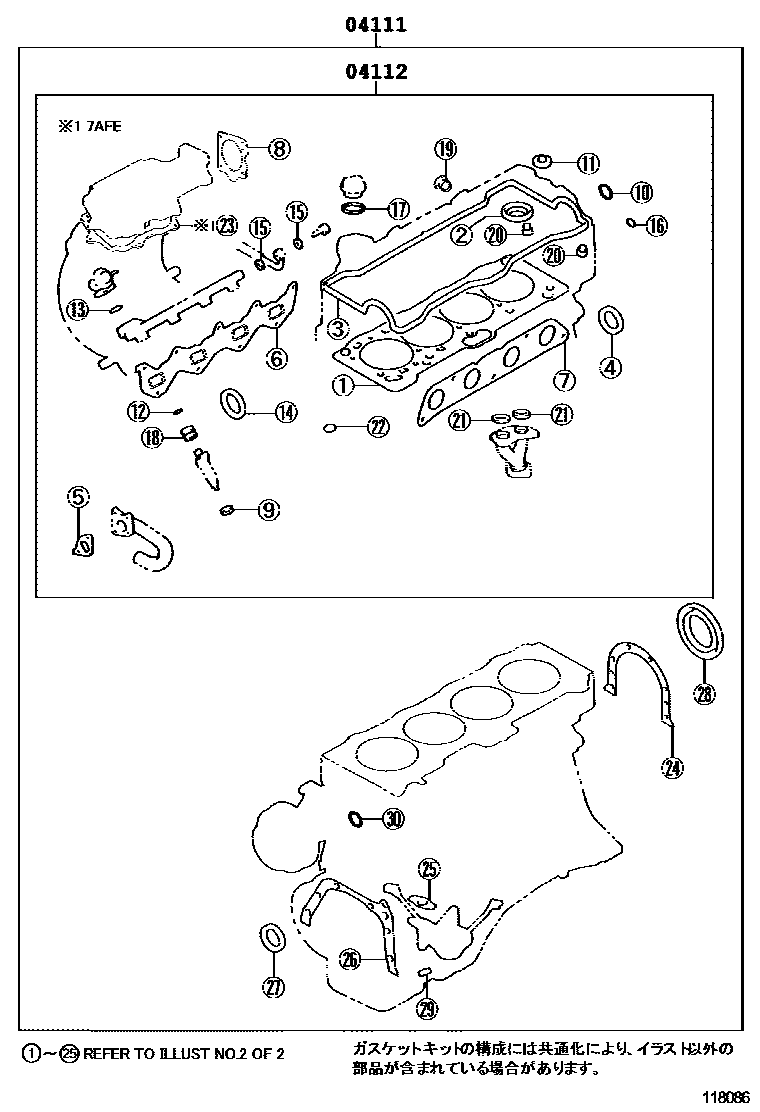

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118086
Engine Overhaul Gasket Kit — 118086 (199904 – 999999)

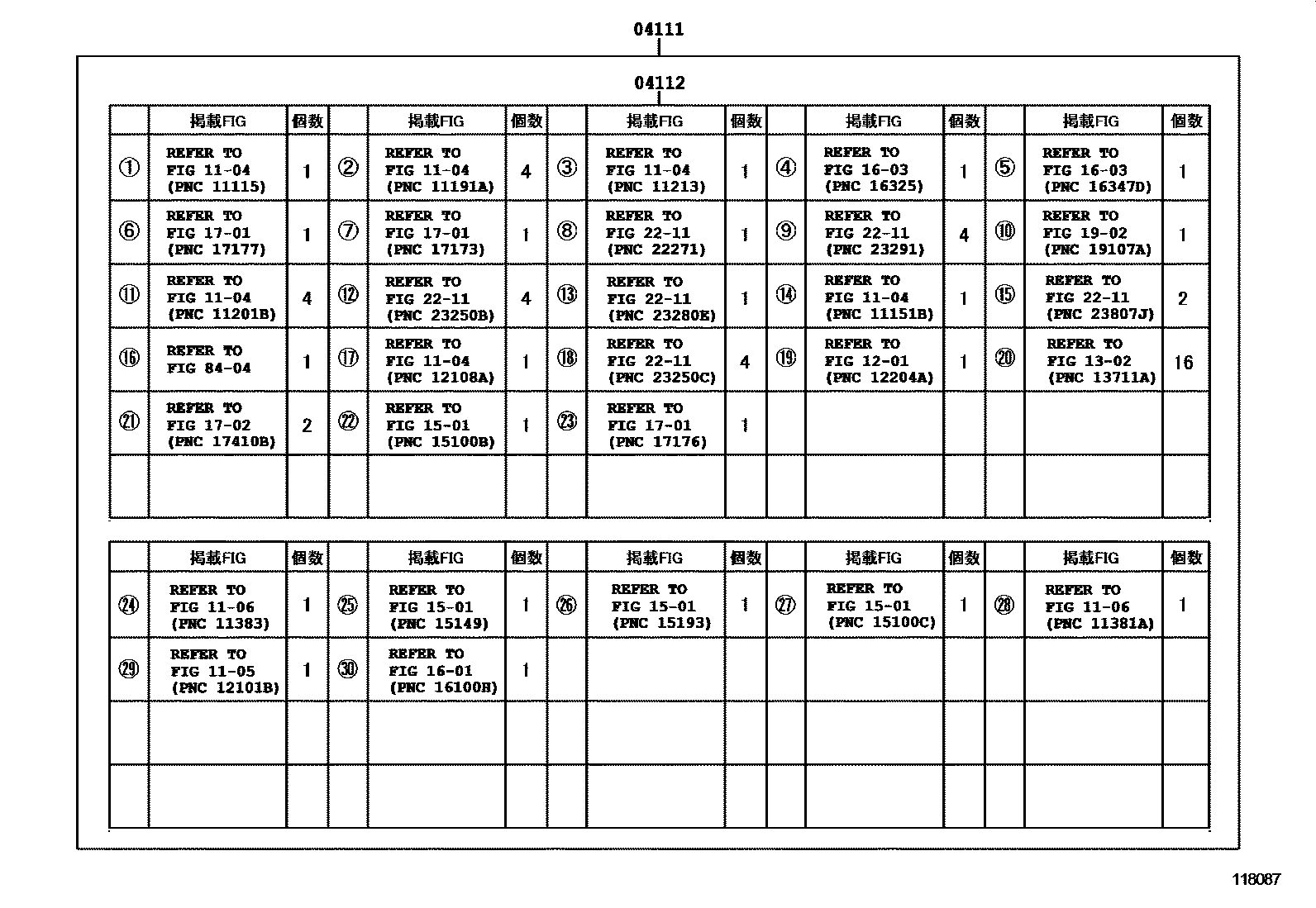

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 118087
Engine Overhaul Gasket Kit — 118087 (199904 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-16231 · 04111-16320 · 04111-16360 · 04111-16370
04112Engine valve grinding pad assembly04112-16230 · 04112-16320 · 04112-16360 · 04112-16370
