Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

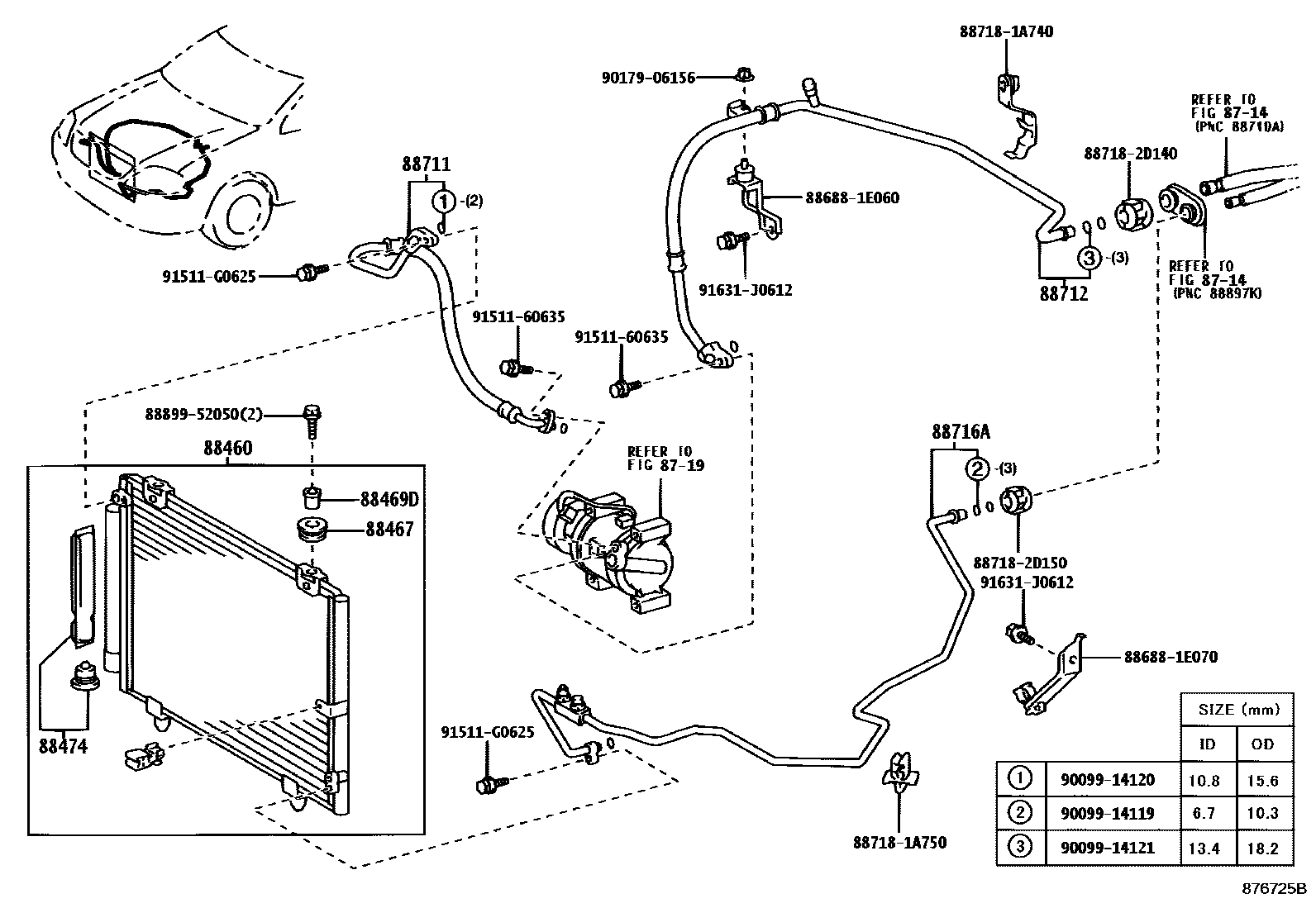

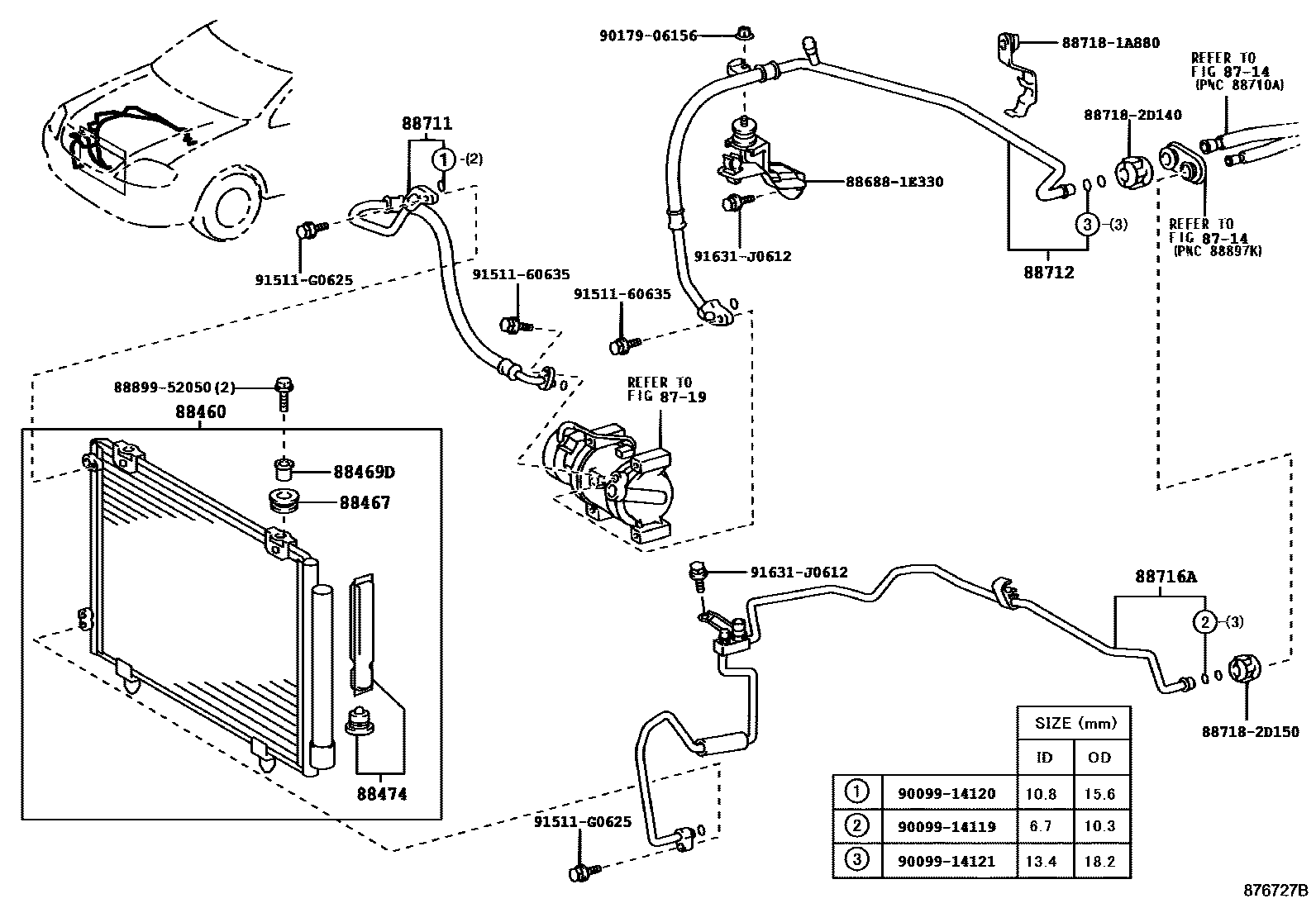

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88450-12210 · 88450-12231 · 88450-12240 · 88450-12241 · 88450-13031 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-12530 · 88703-12540 · 88703-12620 · 88703-12630 · 88703-12650 · 88703-12750 · 88703-12760 · 88703-12770 · 88703-12780 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-12810 · 88704-12820 · 88704-1A120 · 88704-1A130 · 88704-1A140 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12510 · 88710-12740 |
