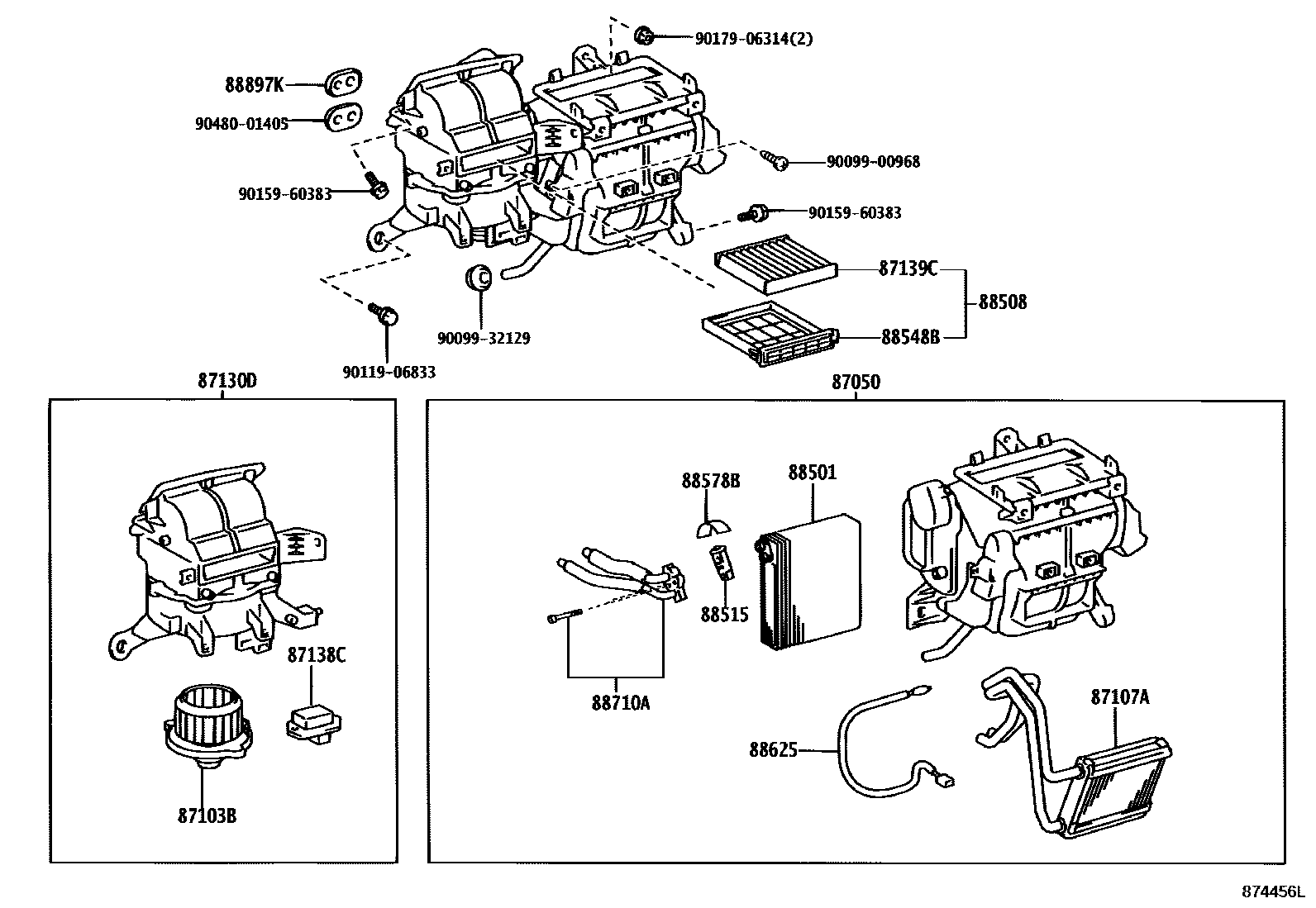

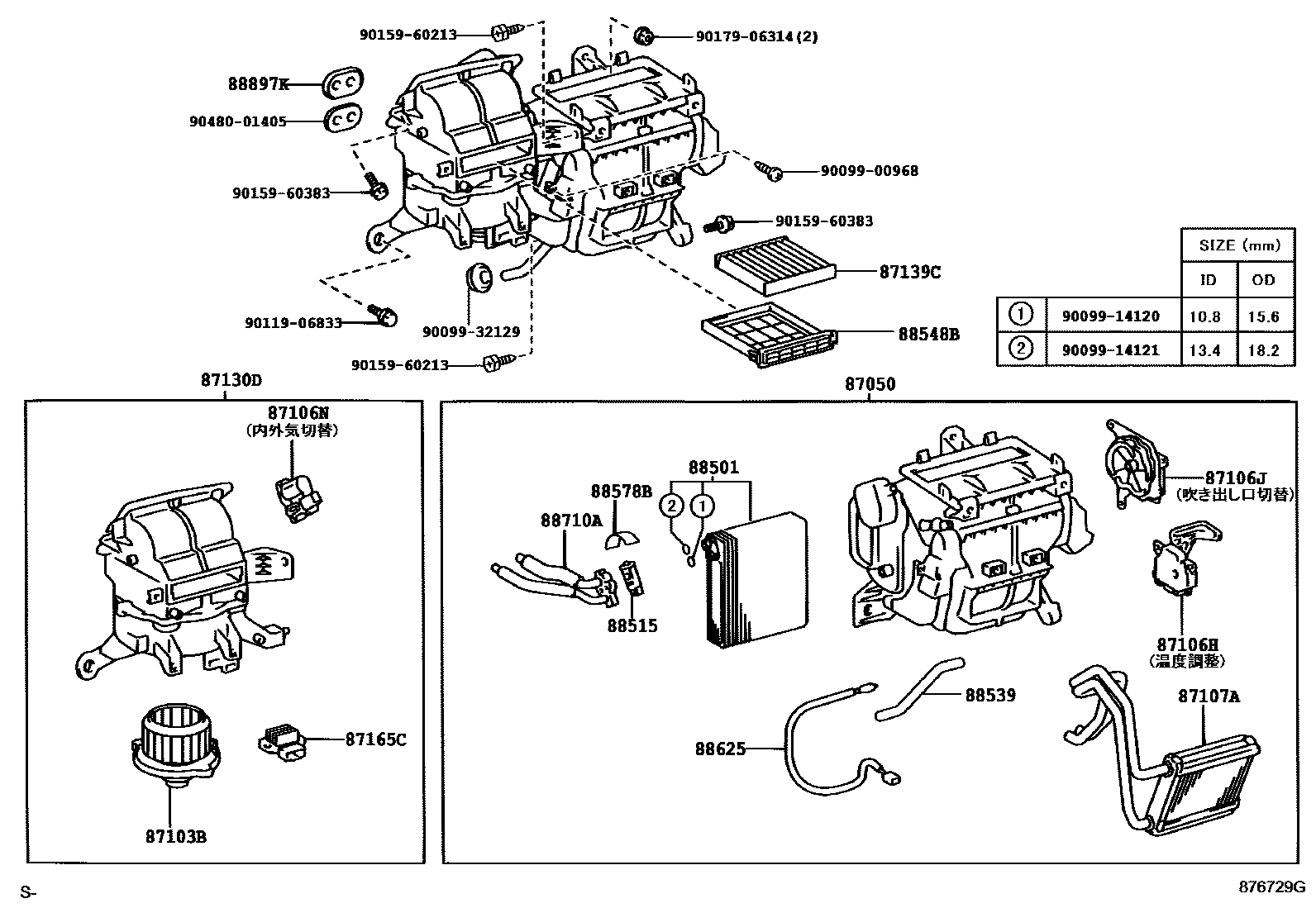

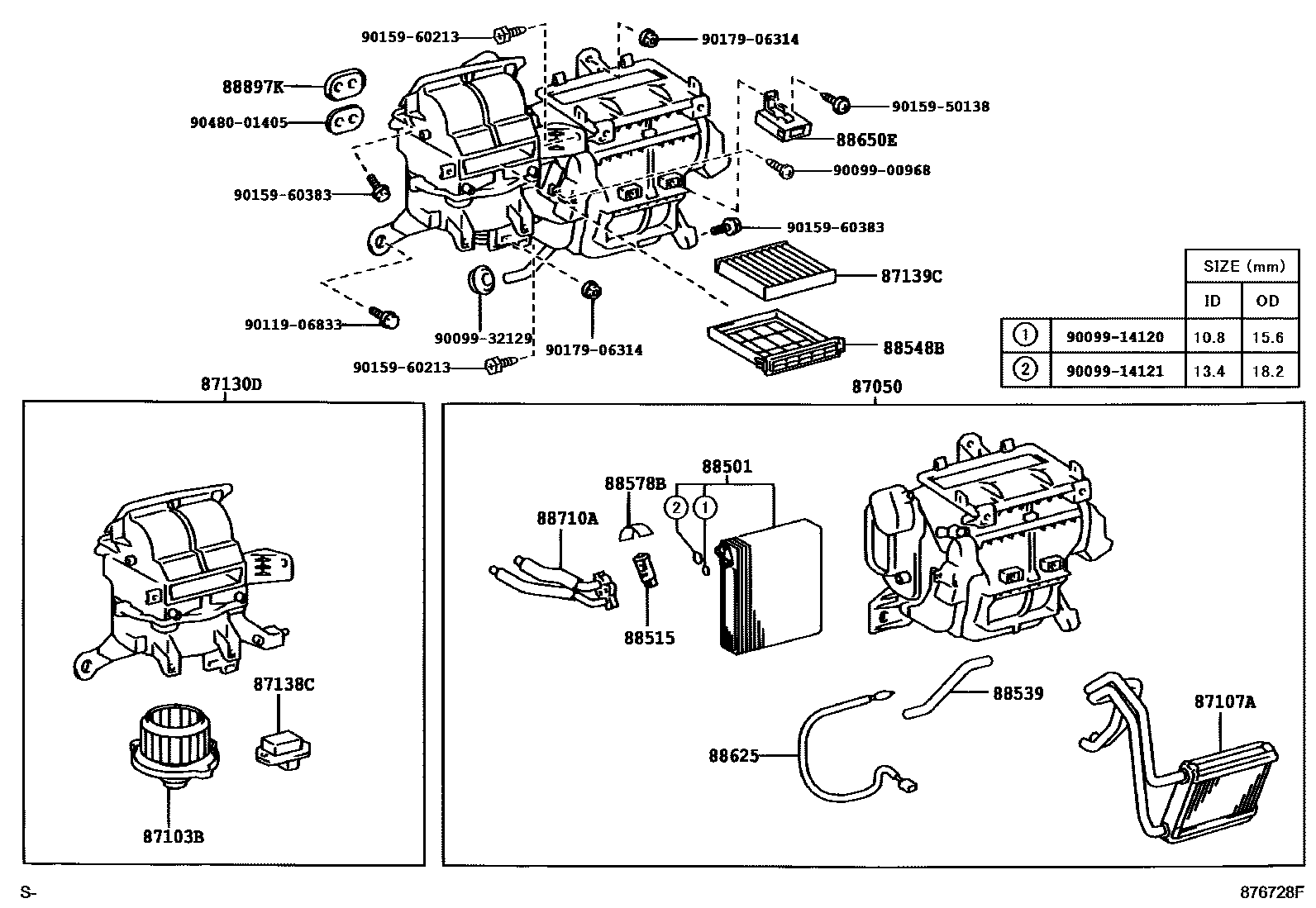

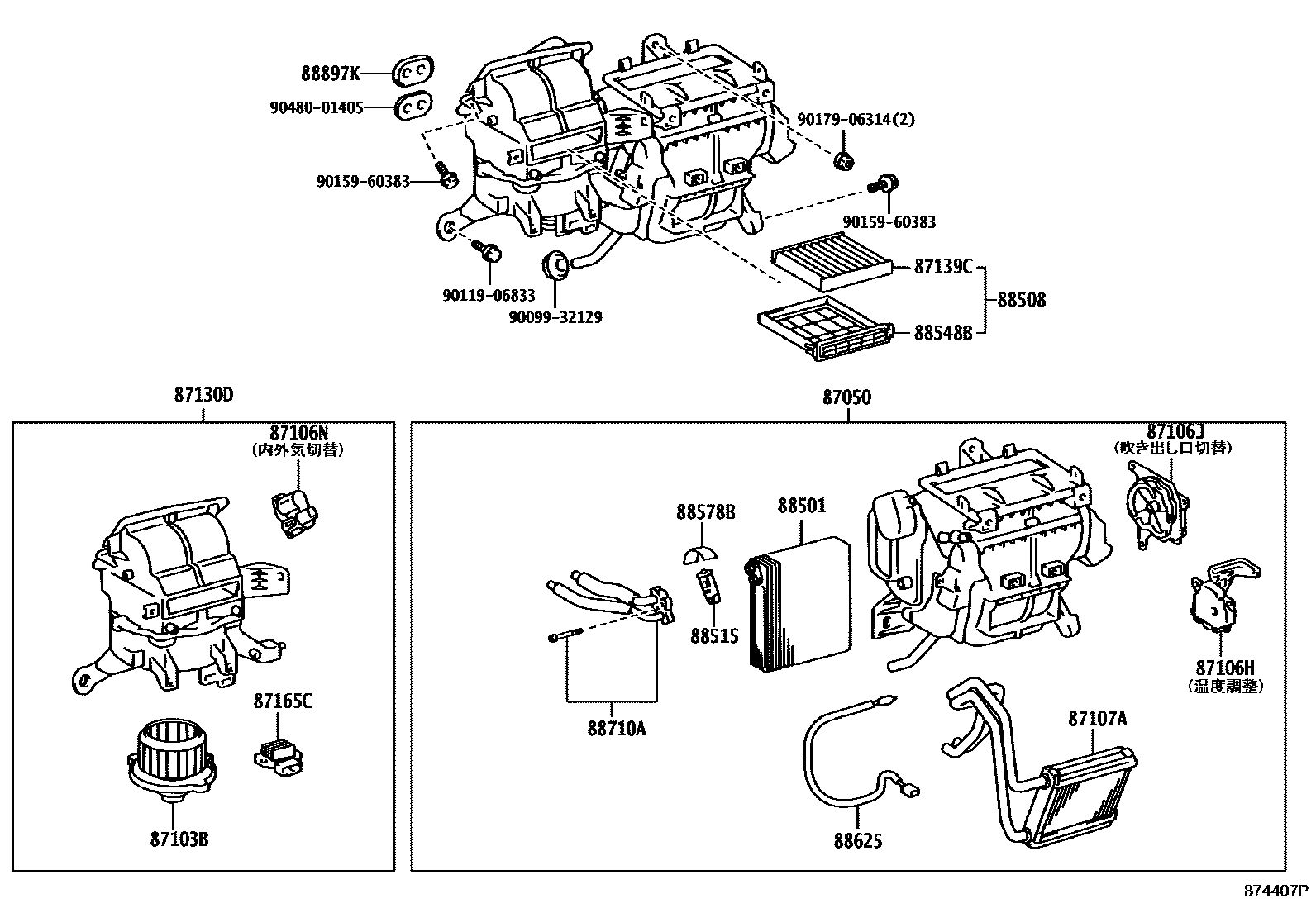

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-12010 · 87050-12020 · 87050-12030 · 87050-12040 · 87050-12150 · 87050-12170 · 87050-12180 · 87050-12190 |
| 87103B | Blower motor sub-assembly with fan | 87103-12050 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-12130 · 87106-12131 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-12140 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-12150 |
| 87107A | Heater radiator device sub-assembly | 87107-12540 · 87107-12550 |
| 87130D | Blower assembly | 87130-12440 · 87130-12450 · 87130-12480 · 87130-12490 |
| 87138C | Blower resistor | 87138-20350 |
| 87139C | air purification filter | 87139-12010 · 87139-44010 · 88568-12020 · 88568-12030 · 88568-52010 |
| 87165C | Blower motor control device | 87165-13010 · 87165-41010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12440 |
| 88508 | Air purification filter sub-assembly | 88508-12040 · 88508-52010 |
| 88515 | Cooler expansion valve | 88515-27020 · 88515-28160 · 88515-48040 · 88515-60150 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12170 |
| 88548B | air filter housing | 88548-52010 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88625-21010 · 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-12A20 |
| 88710A | Air conditioning pipe assembly | 88710-12540 · 88710-12730 |
| 88897K | Seals (for cooler tubes) | 90480-01434 |
