Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.

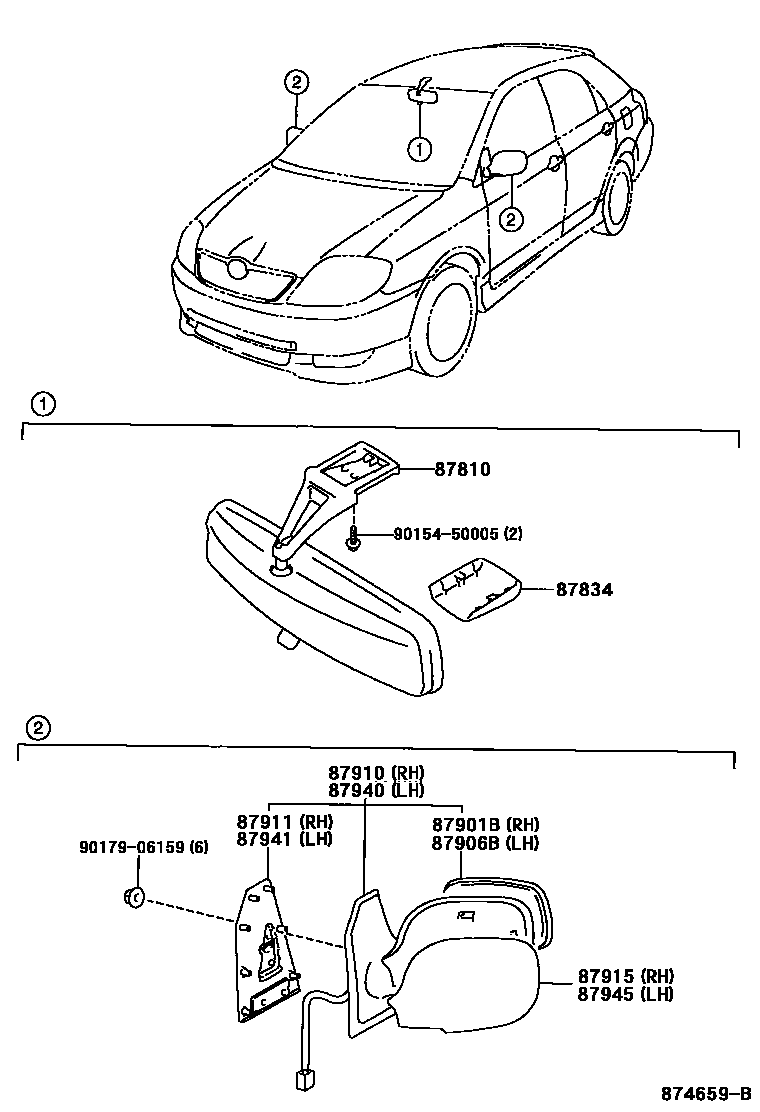

Toyota COROLLA 后视镜 EPC diagram — 874659B
后视镜 — 874659B (200101 – 200404)

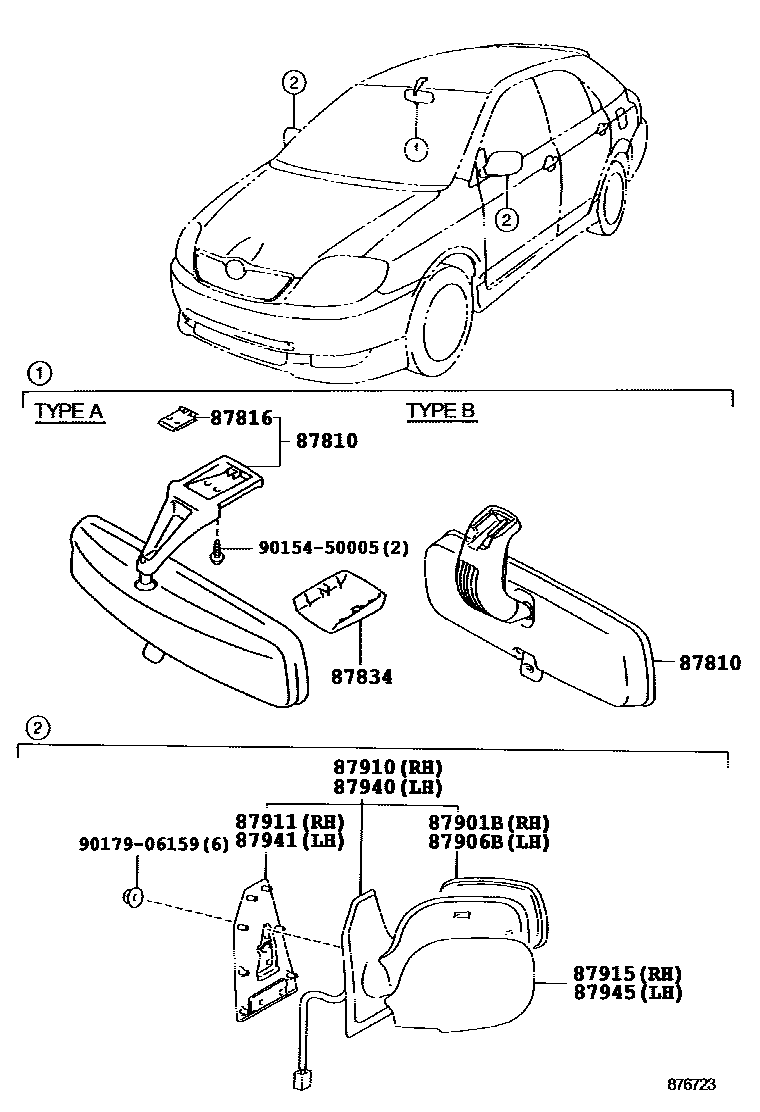

Toyota COROLLA 后视镜 EPC diagram — 876723A
后视镜 — 876723A (200404 – 200609)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-05020 · 87810-05021
87816Interior rearview mirror spring74372-30030
87901BRight exterior rearview mirror sub-assembly87931-12A20 · 87931-12A30 · 87931-1E830 · 87931-1E840 · 87931-1H090 · 87931-1H100 · 87931-1H120 · 87931-1H130 · 87931-47080
87906BLeft exterior rearview mirror sub-assembly87961-12A40 · 87961-12A50 · 87961-1E670 · 87961-1E671 · 87961-1E680 · 87961-1H150 · 87961-1H170 · 87961-1H180 · 87961-47120
87910Right exterior rearview mirror assembly87910-12A20 · 87910-12A30 · 87910-1A810 · 87910-1E830 · 87910-1E831 · 87910-1E840 · 87910-1H090 · 87910-1H100 · 87910-1H120 · 87910-1H130
87911Right exterior mirror pad87911-12320
87940Left exterior rearview mirror assembly87940-12A00 · 87940-12A40 · 87940-12A50 · 87940-1E670 · 87940-1E671 · 87940-1E680 · 87940-1H150 · 87940-1H170 · 87940-1H180
87941Left exterior mirror pad87941-12300
