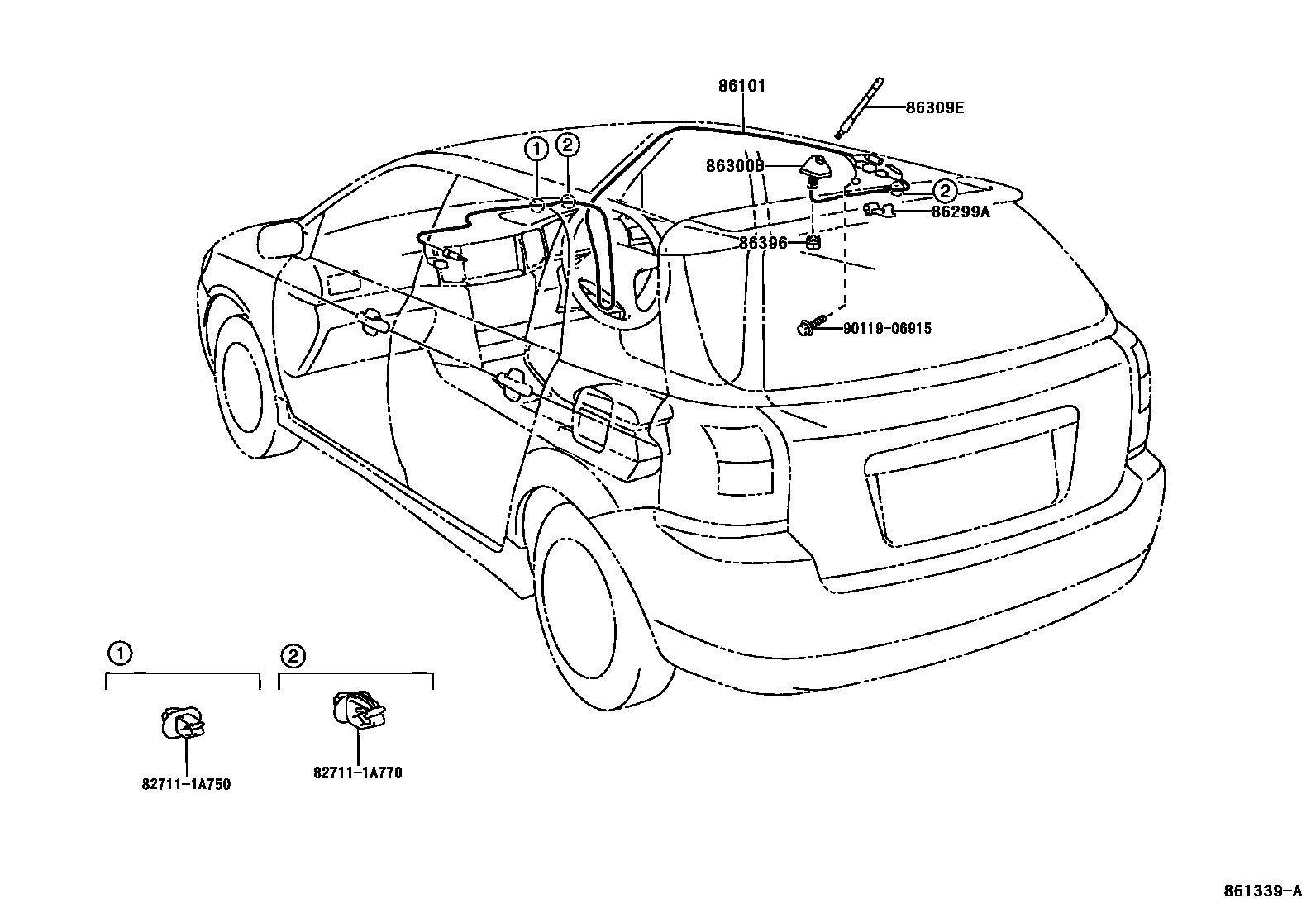

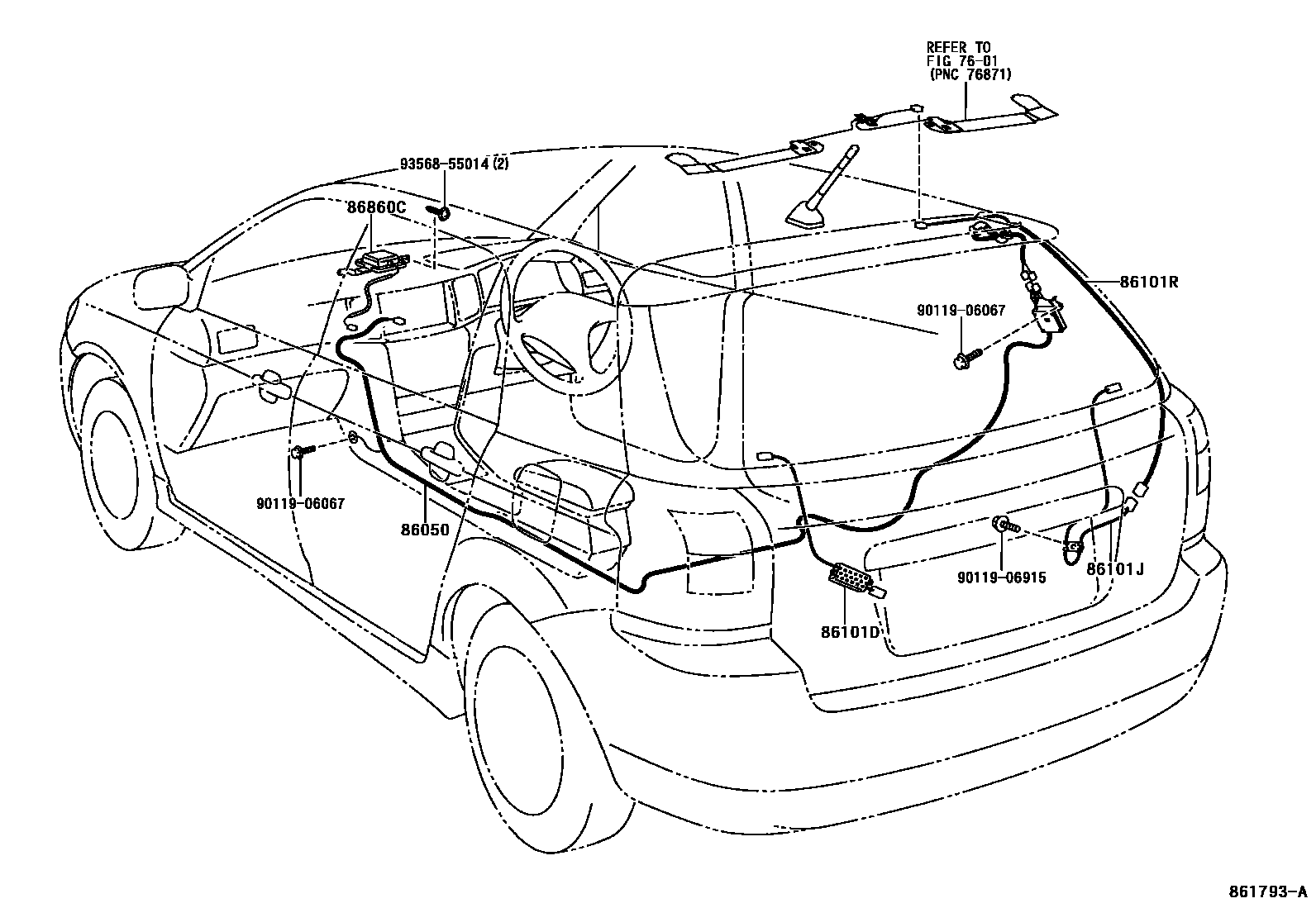

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-12020 |
| 86101 | Antenna wire sub-assembly | 86101-12300 · 86101-12301 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-12360 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-12370 |
| 86101R | No. 5 antenna wire sub-assembly | 86101-12350 |
| 86299A | Clip (radio to antenna lead) | 86299-12010 |
| 86300B | Amplifier antenna assembly | 86300-12770 · 86300-13050 |
| 86309E | Roof antenna sub-assembly | 86309-12150 · 86309-20310 |
| 86396 | Antenna nut | 86396-12030 · 86396-20040 |
| 86860C | Navigation antenna assembly | 86860-12030 · 86860-12050 · 86860-13030 · 86860-20060 |
