Toyota COROLLA 防盗装置 — Figure 8424

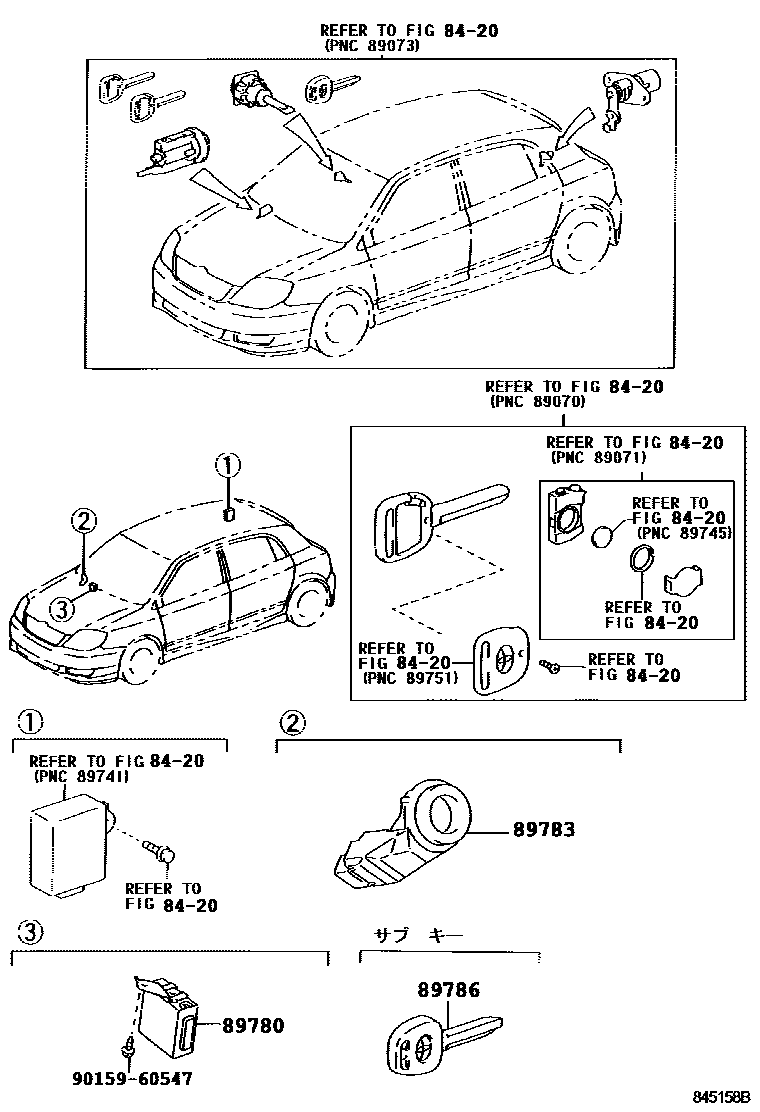

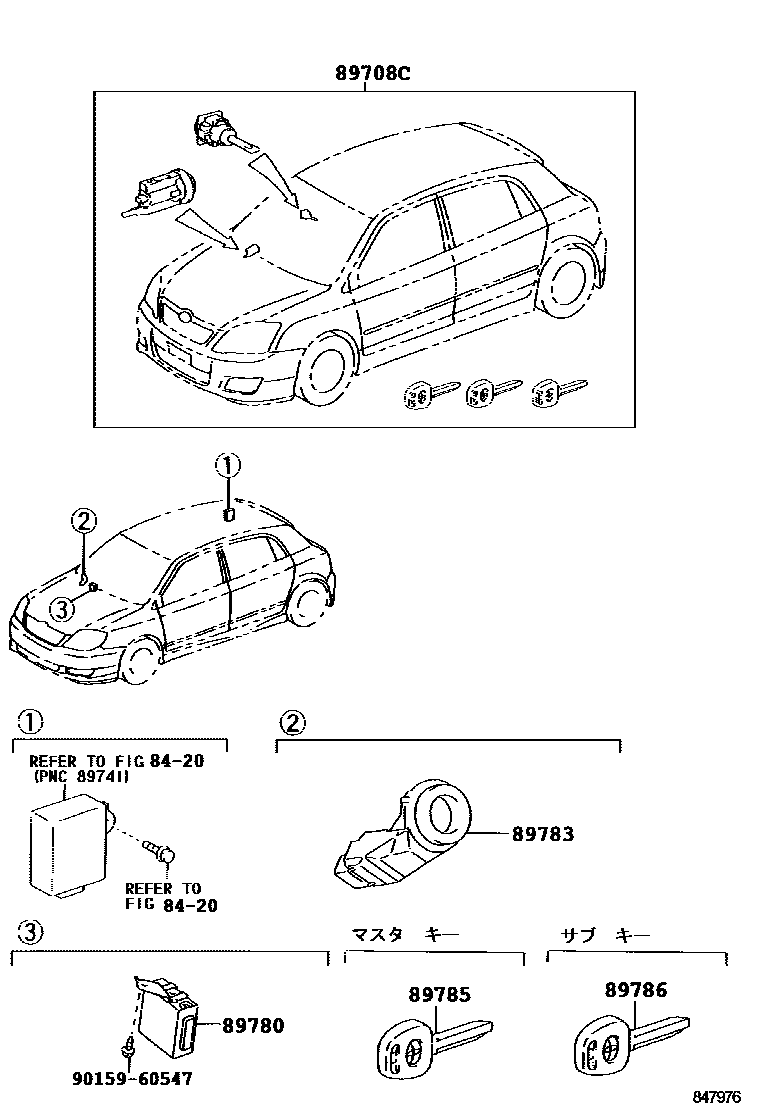

Toyota COROLLA EPC diagram 8424, 防盗装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89708C | Key lock cylinder assembly with transceiver transmitter | 69005-13880 · 69005-1E780 |
| 89780 | Transceiver key ECU assembly | 89780-12150 |
| 89783 | transceiver key amplifier | 89783-12050 |
| 89785 | transceiver key master transmitter | 89785-60160 |
| 89786 | transceiver key secondary transmitter | 89786-60170 |
