Toyota COROLLA 遥控门锁 — Figure 8420

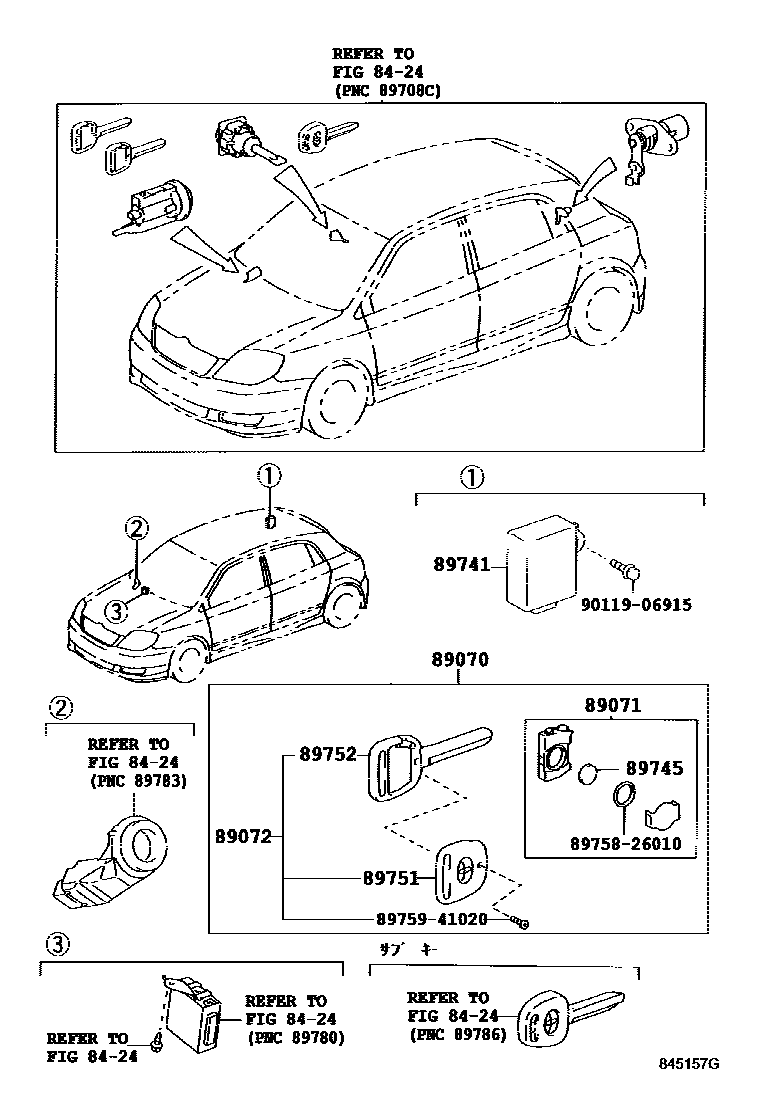

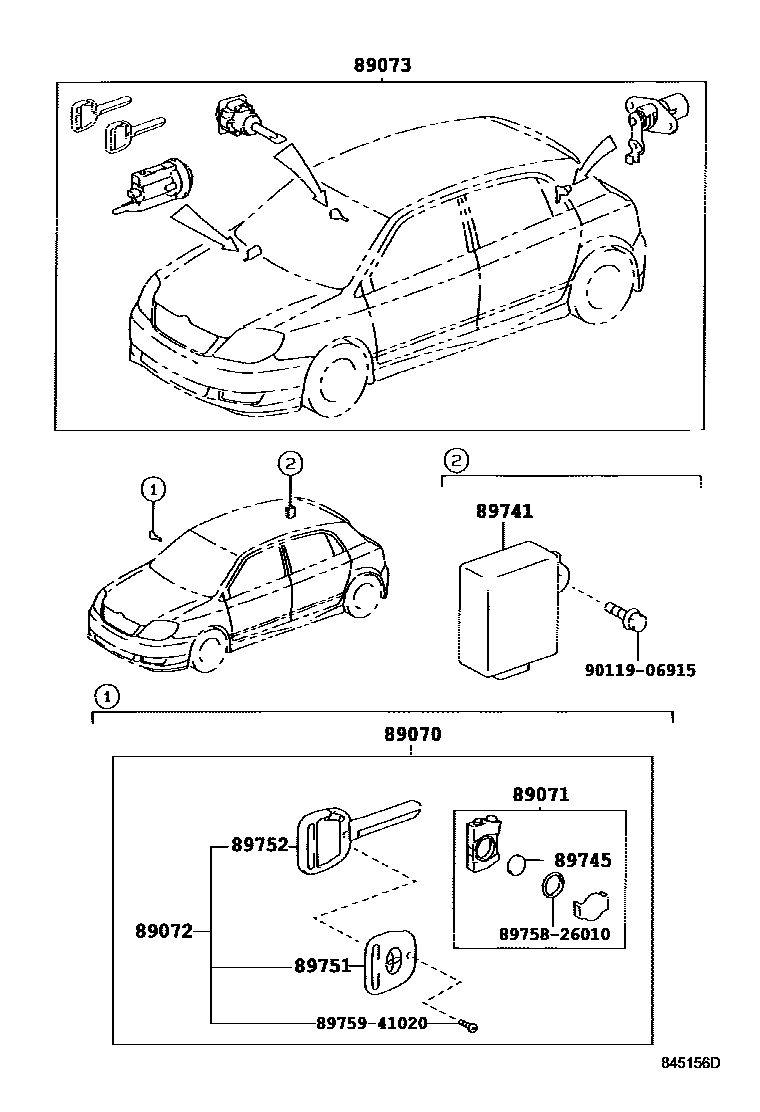

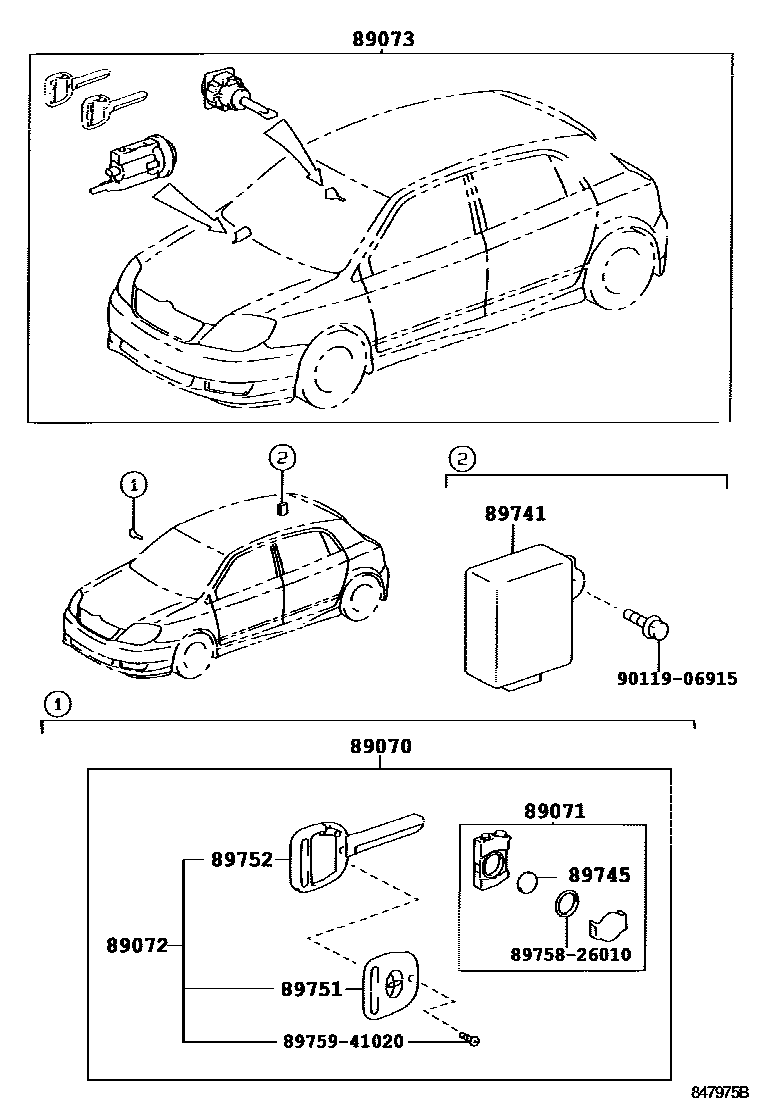

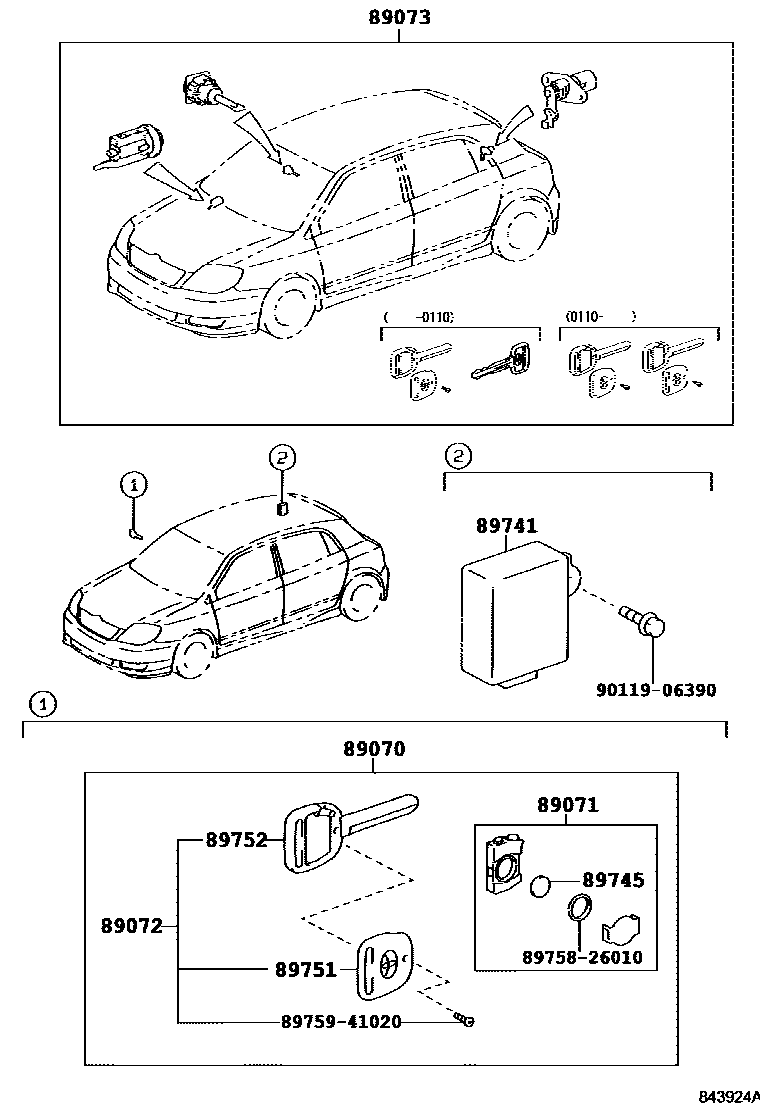

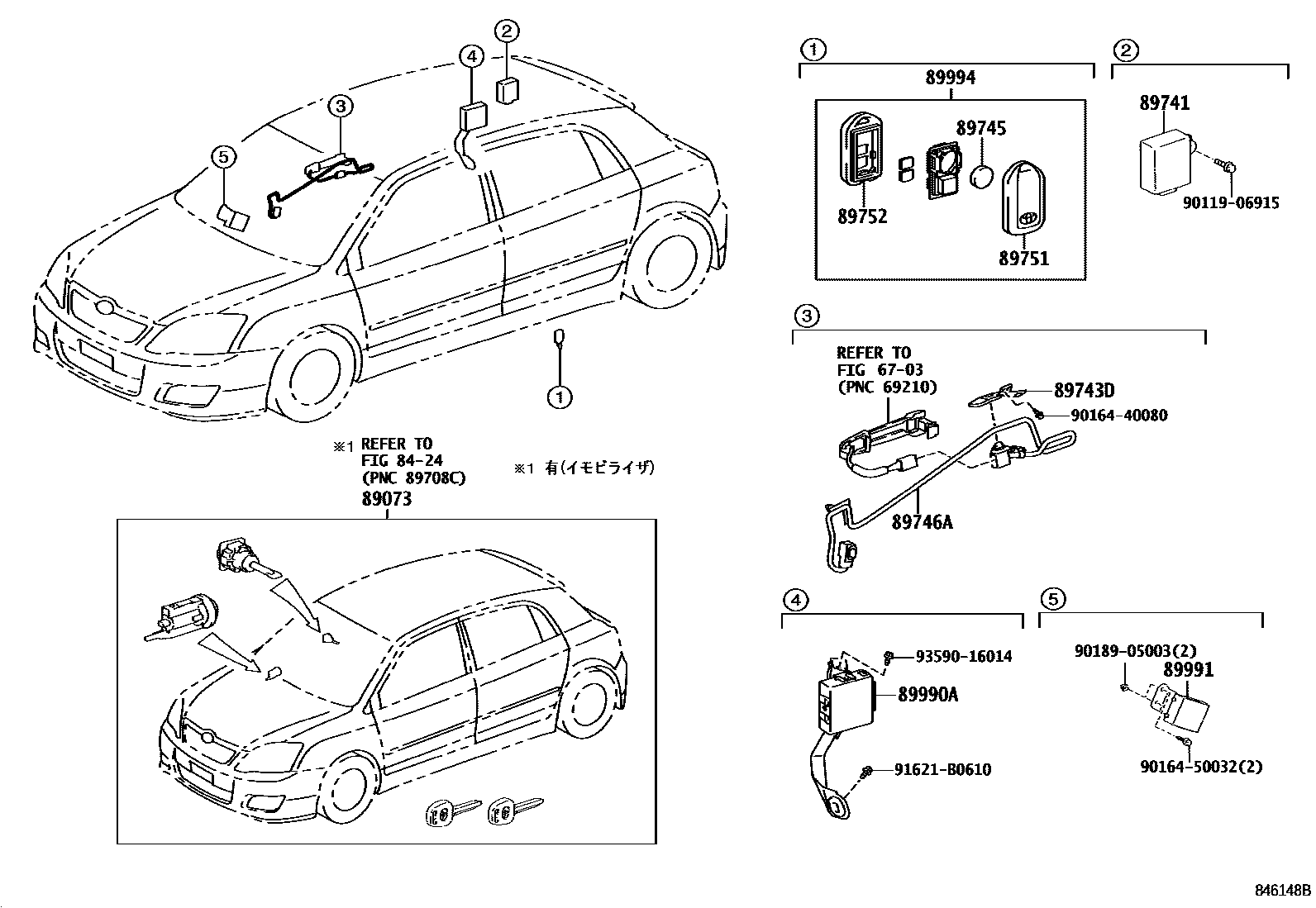

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-12280 · 89070-12290 · 89070-13060 |
| 89071 | Remote key sub-assembly module assembly | 89071-12041 · 89071-26010 |
| 89072 | Remote key shell assembly | 89072-47020 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 69005-12B20 · 69005-13880 · 69005-13890 · 69005-1E770 · 69005-1E780 · 89073-12240 · 89073-12241 |
| 89741 | door control receiver | 89740-13030 · 89741-13030 |
| 89743D | Electronic key harness bracket | 89743-13010 |
| 89745 | Transmitter battery | 89745-26010 · 89745-50020 |
| 89746A | Electronic key wiring harness | 89746-12010 |
| 89751 | Transmitter housing cover | 89751-44010 · 89751-68010 |
| 89752 | transmitter housing | 89752-46020 · 89752-68010 |
| 89990A | Smart key ECU assembly | 89990-13020 |
| 89991 | Door electronic key oscillator | 89991-12010 |
| 89994 | electronic key transmitter | 89994-68030 |
