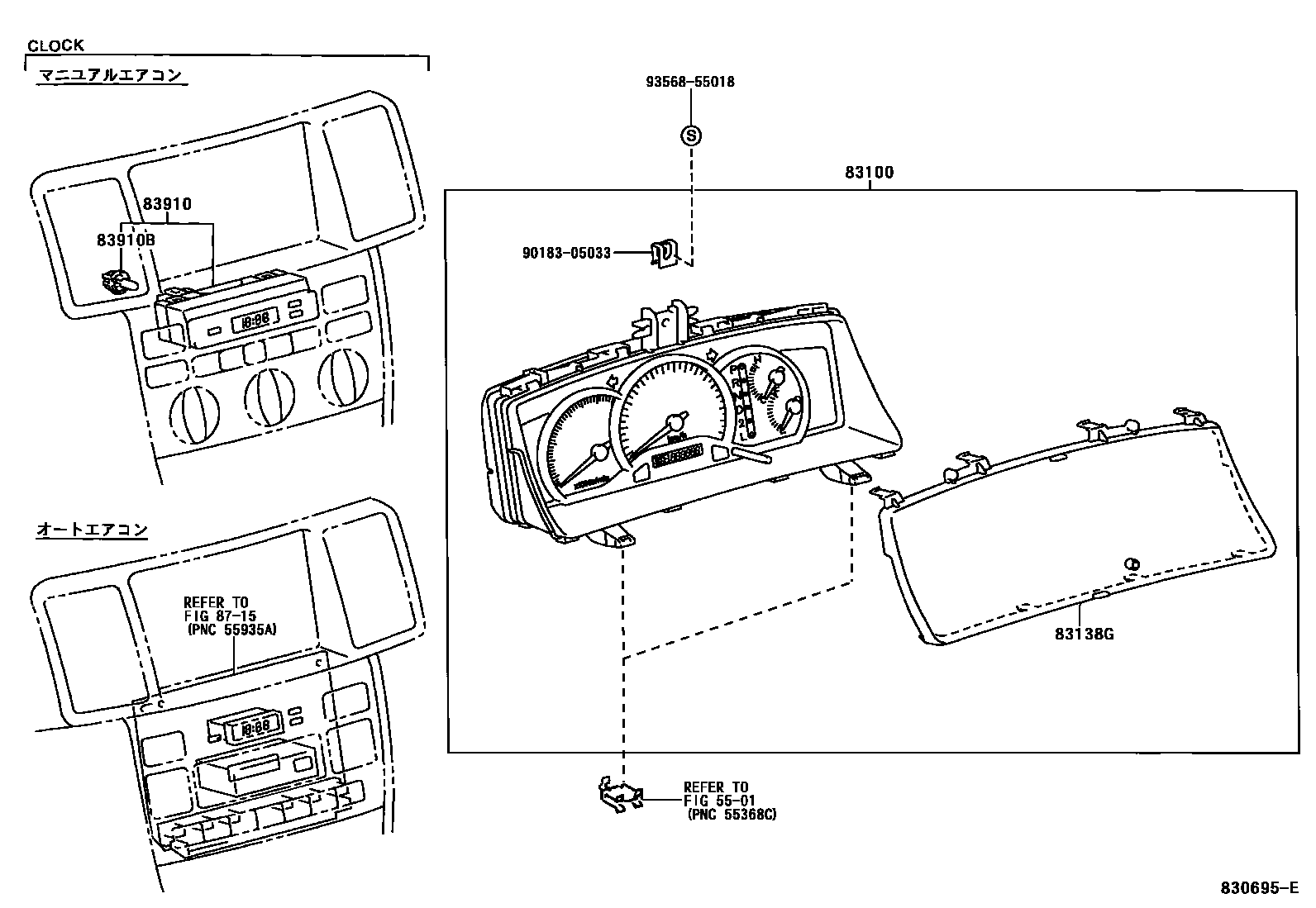

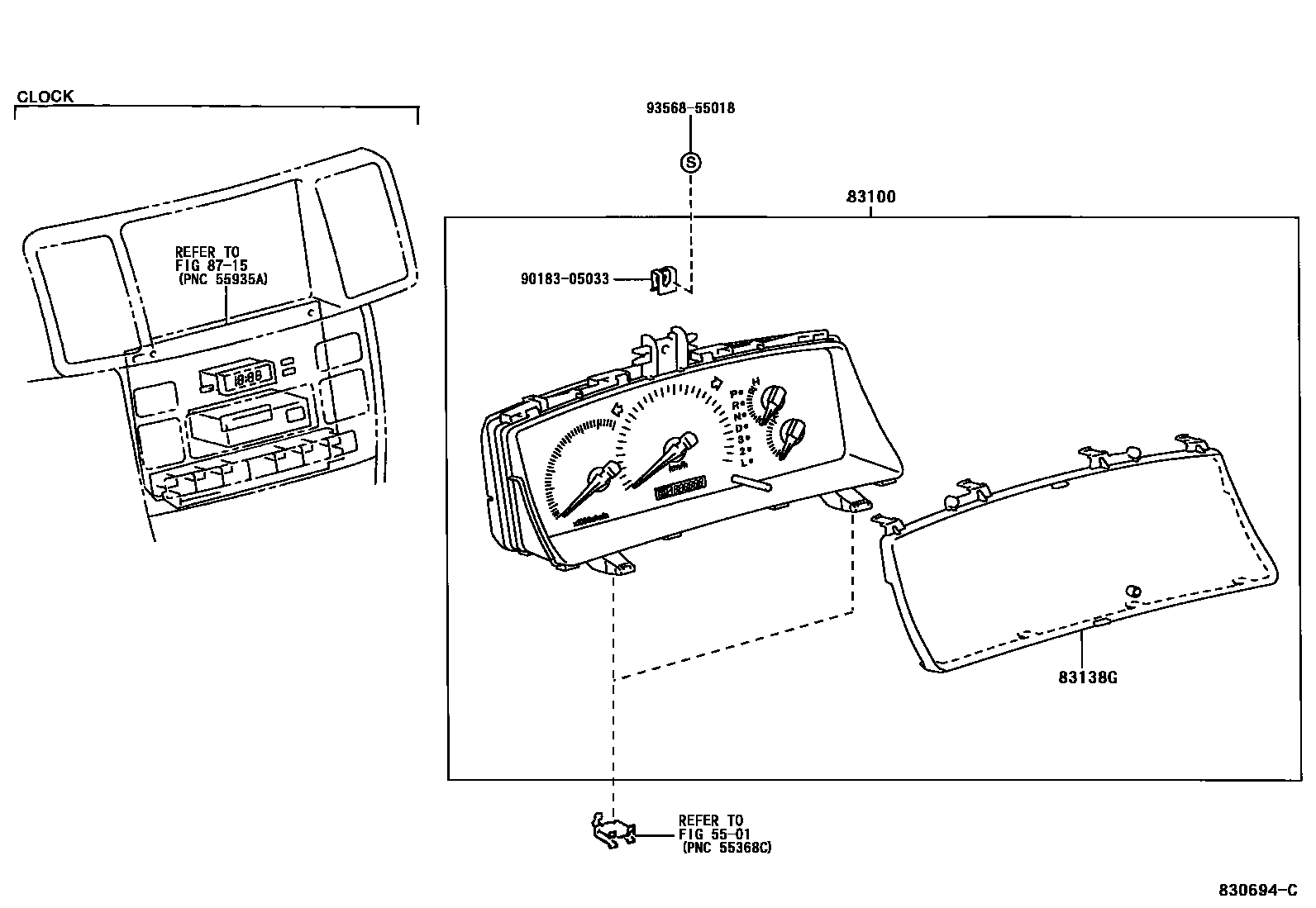

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-12A40 · 83800-12A50 · 83800-12A60 · 83800-12A90 · 83800-1E740 · 83800-1E741 · 83800-1E750 · 83800-1E751 · 83800-1H290 · 83800-1H510 · 83800-1H520 · 83800-1H530 · 83800-1H570 |
| 83138G | Instrument cluster glass | 83852-12A20 · 83852-12A70 · 83852-1E730 · 83852-1E760 |
| 83910 | clock assembly | 83910-12560 |
| 83910B | clock indicator light bulb | 90010-07018 |
