Toyota COROLLA 车内灯 — Figure 8121

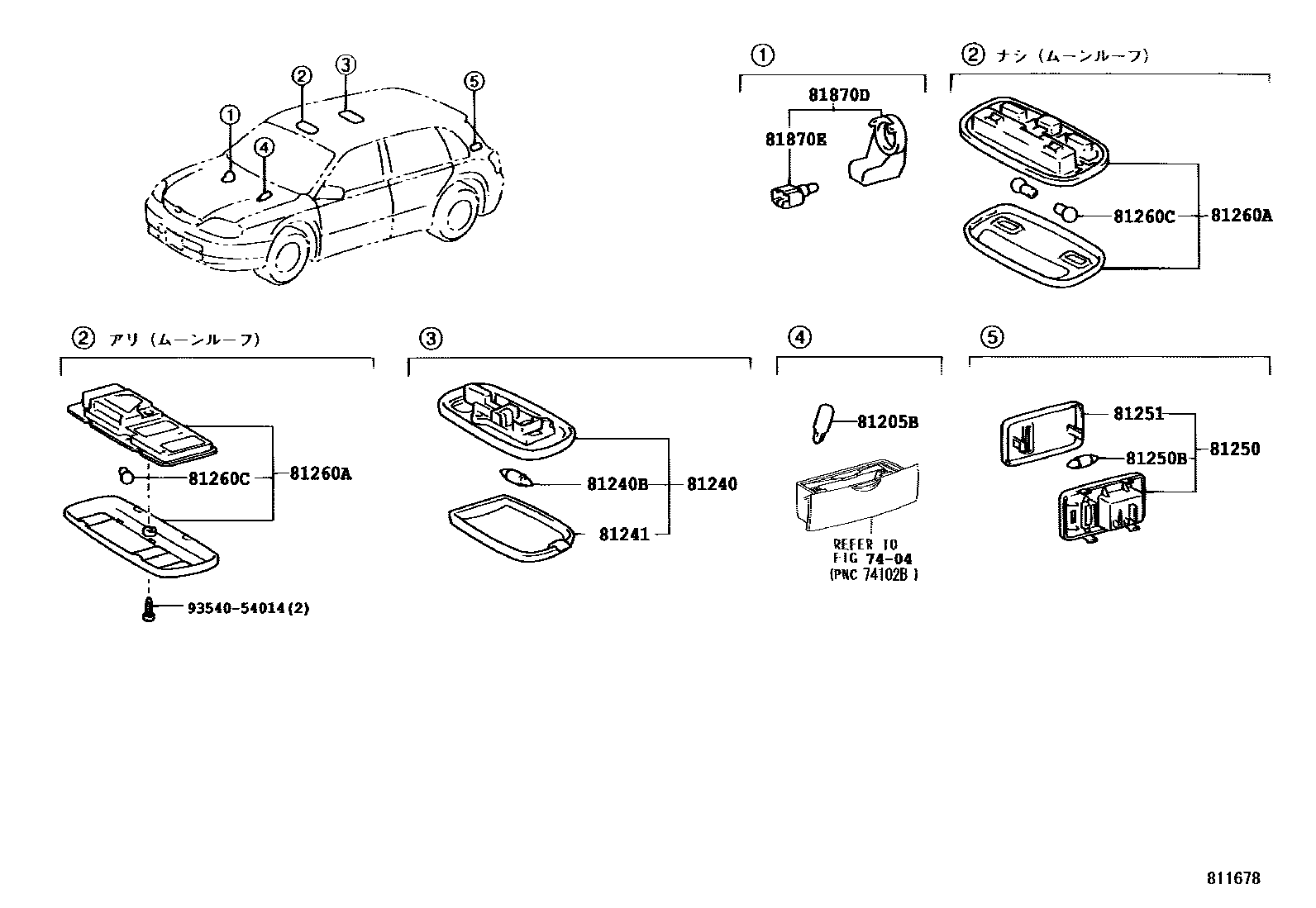

Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11018 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12070 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81251 | Interior light cover No. 2 | 81251-12030 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 · 90981-12014 |
| 81870D | Lock core lighting assembly | 81870-12020 · 81870-12030 |
| 81870E | Lock cylinder lighting bulb | 90010-01056 |
